Siemens AlgoRex CS1140 User Manual

Power supply
96
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

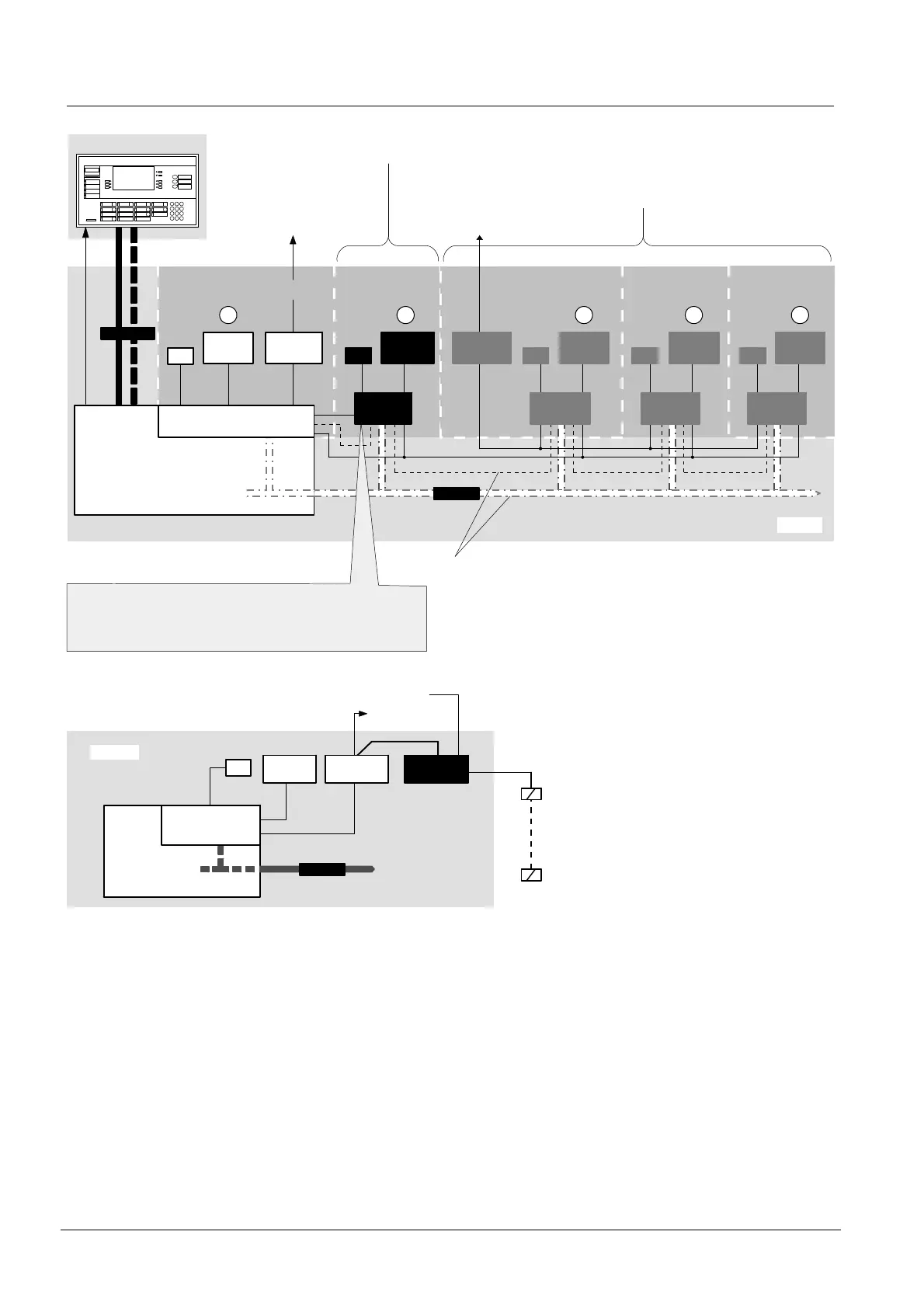

35.2 Additional power supply
B2F020
TF*
1
TF*
2 5
TF*
4
TF*
3
TF*
B2F020
B2F040
E3X10.
24V
I-Bus
C-Bus
Auxiliary batteries for the basic power supply:
max. 1x E3C011 with battery set as an addition
A
dditional batteries with auxiliary power supply:
max. 3 battery sets per B2F020 possible
:
mains
mains
Basic emergency power supply 1st extension 2nd extension 3rd extension 4th extension
Batteries
FA12...
Batteries
FA12...
Batteries
FA12...
FA12... FA12...
* TF = Temperature sensor for battery temperature monitoring
- separate battery charging unit
- as regards "battery charging" identical to E3X10.
- I-Bus module
Battery charching unit
E3C011
E3C011
E3C011E3C011
CT11
CC11
mains
Auxiliary power supply without battery e.g for door magnets
E3X10.
I-Bus
Battery charging
unit
Batteries
FA12...
TF*
B2F020
B1F120
...140VA
max. 3A / 24VDC
Door magnets
CC11
29.6V
Monitoring via I-Bus separate HW monitoring path or
Batteries Batteries
 For details of structure of additional power supply –> also see pages 39 – 45
Components
B1F120 4952330001 Converter 115/230 V AC ->24 V DC, 3A Supply for door magnets etc. only
B2F020 A5Q00025281 Converter 115/230 V AC ->29.6 V DC, 6 A
B2F040 5102990001 Converter 115/230 V AC ->29.6 V DC, 3.5 A
B2F060 5112850001 Converter 115/230 V AC ->24 V DC, 4.5 A Supply for door magnets etc. only
E3C011 5054790001 Plug-in battery charging module
E3X102 6290250001 Control panel module 1MBx8 bits RAM
E3X103 6290380001 Control panel module 2MBx8 bits RAM
FA2006-A1 A5Q00019356 12 V / 24 Ah battery
FA2007-A1 A5Q00022897 12 V / 38 Ah battery
FA2005-A1 A5Q00019677 12 V / 15 Ah battery
 Mains protection elements (surge arrester and mains filter) see page 104
