Siemens AlgoRex CS1140 User Manual

Extinguishing
87
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

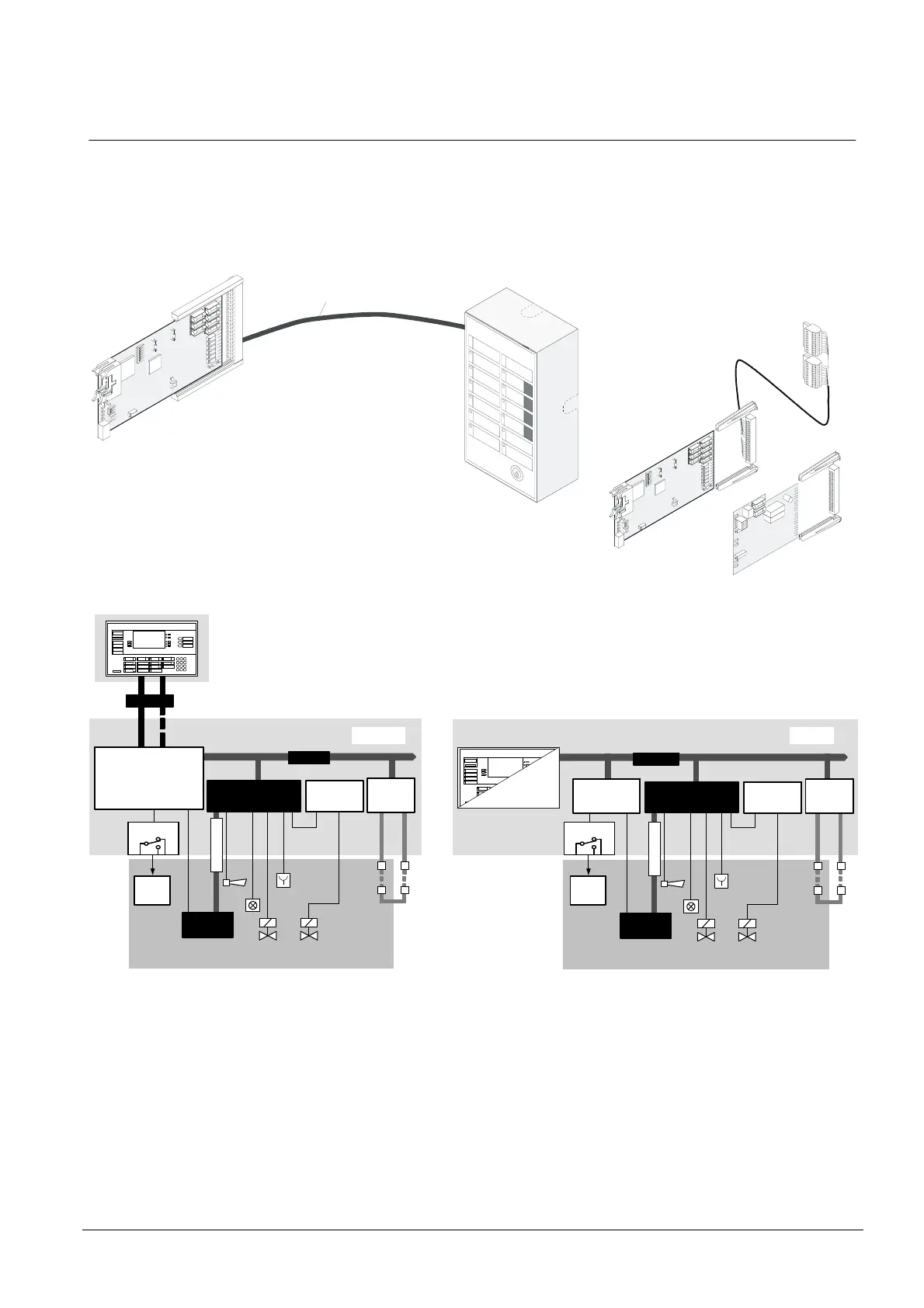

32 Extinguishing
32.1 Main features of extinguishing SECTION
 Extinguishing section consists of:
– Control plug-in module E3G080 (I bus component)
– 'Extinguishing' operating unit B3Q440
– Option Monitoring board K5L020 to monitor and control additional solenoid
extinguishing valves
 E3G080 is designed for one extinguishing SECTION
E3G080
Z1I030/050
Z1K030
K5L020
max. 600m 5 wires Ø 0.8 mm
Line and device monitored
B3Q440
H23G230
E3G080
 For details, see document 001260
*ST =
- Ventilation switch off
- Door magnet
- etc.
I-Bus
ST*
I-Bus
Z3B171
E3M...
C-Bus
E3X10.
E3M...
CC11
ST*
Z3B171
E3G070
DM1103
Extinguishing SECTION
E3G080
B3Q440
E3G080
B3Q440
K5L020
(option)
K5L020
(option)
AlgoPilot
B3Q...
CI11
CT11
DM1103
LON-Bus
24V
24V
LON-Bus
Extinguishing SECTION
Manual activation
– Use collective yellow hand-operated button DM1103 with DMA1192-AC
Components for extinguishing section
E3G080 4759490001 'Extinguishing' control plug-in module Needed per extinguishing SECTION
E3G110 5049910001 Degraded mode link Option for 'Extinguishing' control plug-in module E3G080 (see section
32.2)
B3Q440
4759520001 'Extinguishing' operating unit Max. 4 possible (including labeling kit in 'English')
For other languages –> use templates of document 006516
H23G230 4750910001 Plastic housing 125x219x76 mm For B3Q440
Z1I030 4755090001 Connection cable, 19-wire, 0.5 m With board holder; for housing H47…
Z1I050 4755290001 Connection cable, 19-wire, 0.8 m With board holder; for housing H67…
Z1K030 4842310001 Terminal block + board holder For housing H38…
K5L020 4412320001 2-area extinguishing board For details, see document 001260
Z5B700 5104220001 'CH' labeling kit For B3Q440
