CI1142 in housing H38... (flat)
32
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
CT1142
(additional operating facilities)
Basic equipment
Option
12
B2F020
Battery
FA2005-A1
1..2
E3G070
Z3B171
1........7
CI1142
E3G...
E3L...
E3M...
C-Bus
250VAC 10A
E3C011
24V
mains
RT
24V
Printer
Fire control
installations
E3I020
RS232
LON-Bus
K3I050
B3Q580/
B3Q59x
LON synoptic converter
LON I/O card
Floor indicator terminal
RT = Remote transmission
E3I040
K3I090
PSA/Pager
or
internal or
external printer
5V
24V
24V
AlgoPilot
B3Q...
I-Bus
K3I110

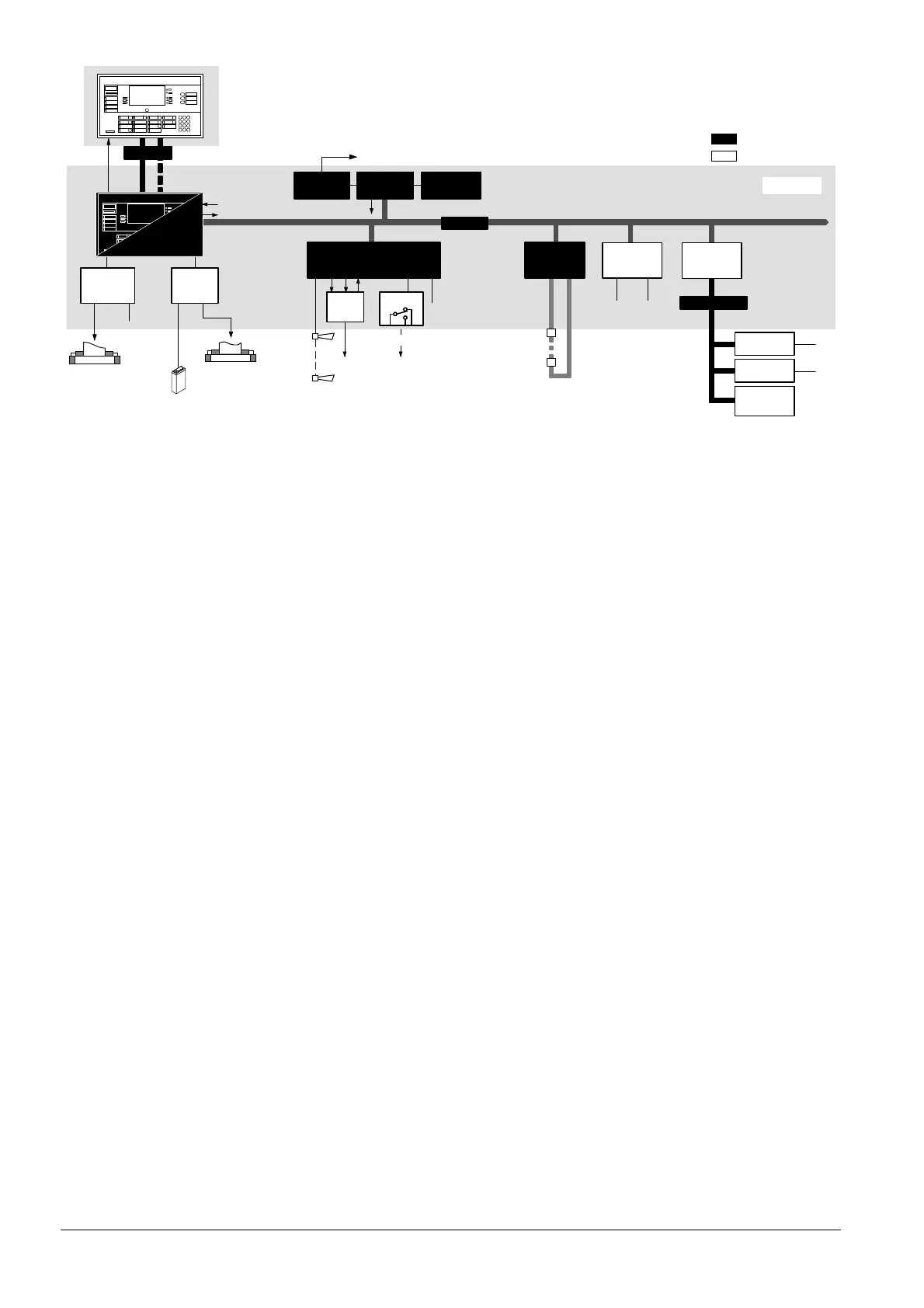

H38G220 components
Control and operating unit
B3Q... AlgoPilot operating console All AlgoPilot variants –> see page 47
H26T...
Plexi glass doors for AlgoPilot B3Q... Option –> see page 48
Z5B...
Labeling kit Depending on language –> see page 50
E3G070
5466610001 'Universal' control plug-in module For alarm devices and control outputs
Line plug-in modules
Depending on detector series For details of line plug-in modules –> see page 63
LON plu
g-in module For details of floor repeater display –> see page 78
Con
trol plug-in modules
If more than 7 programmable control
outputs are needed
For details of control plug-in modules –> see page 72
Interfaces
If there is space to fit
E3H021 A5Q00024660 'CERLOOP' gateway Double Euroboard (2 plug-in slots) –> see page 82
E3I020
4602390001 RS232 plug-in module For connecting B2Q191 printer or external printer
K3I090 5108200001 PSA interface board For connecting PSA/pager and internal/external printer
Power supply
For calculating the emergency power operation duration, see page 99
B2F020 A5Q00025281 Converter 115/230 V AC ->29.6 V DC, 6 A
E3C011 5054790001 Plug-in battery charging module
FA2005-A1 A5Q00019677 12 V/15 Ah battery
Z3I460 4843120001 'CH' mains socket
Housing/options
H38G220 4849140001 'Doors with cut-out' housing kit For details of housing –> see page 57
H23B010
4762100001 Cover Compulsory or H23B040
H23B040 4845900001 Information module Brief operating instructions instead of H23B010
Z3I470 4843410001 Cable set for H38... Compulsory
Z3I380 4755670001 I bus flat cable + 'long' supply cable Needed for connection between levels
(e.g. items 28 <–> 38)
Z1K030 4842310001 Terminal block with board holder for
CI11..
Needed per plug-in module (E3H021 2 items)
Z3B171 4843830001 1 x 250 V AC/10 A relay module Intermediate relay for fire controls (max.6)
