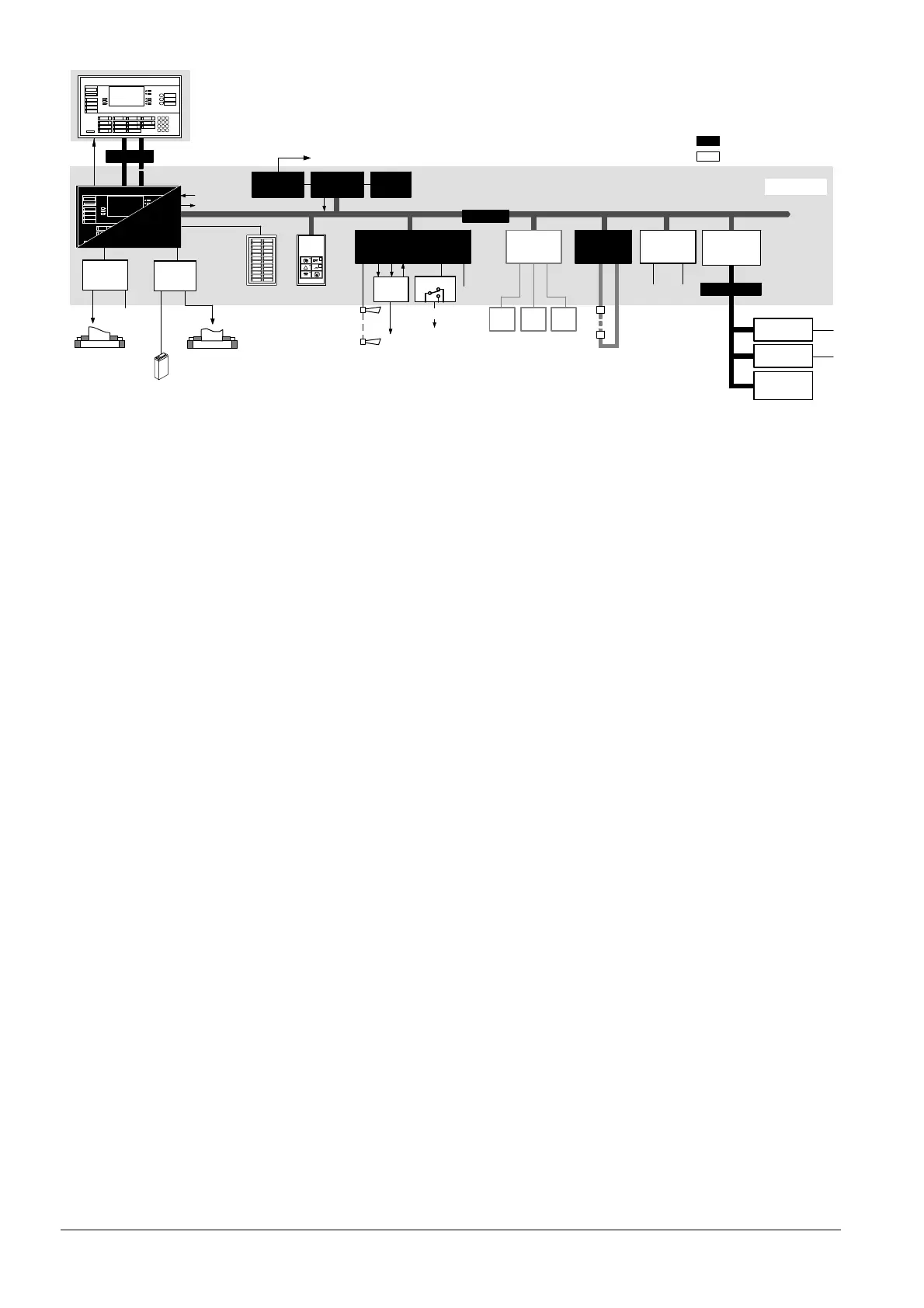

CI1142 in housing H38... (low)
34
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
mains
CT1142
(additional operating facilities)
Option
B3Q321
B2F020
Battery
FA...
I-Bus
FBF FSK HM
E3L030
1..2
E3G070
Z3B171
1........7
CI1142
E3G...
E3L...
E3M...
B3R051
C-Bus
250VAC 10A
24V
E3C011
24V
5V
24V
RT
24V
AlgoPilot
B3Q...
1
2
E3I020
RS232
K3I090
PSA/Pager
or
VdS peripheral
equipment
LON-Bus
K3I050
B3Q580/
B3Q59x
E3I040
K3I110
Printer
Fire control
installations
LON synoptic converter
LON I/O card
Floor indicator terminal
internal or
external printer
Basic equipment
RT = Remote transmission
H38G320 components
Control and operating unit
B3Q... AlgoPilot operating console All AlgoPilot variants –> see page 47
H26T...
Plexi glass doors for AlgoPilot B3Q... Option –> see page 48
Z5B...
Labeling kit Depending on language –> see page 50
E3G070
5466610001 'Universal' control plug-in module For alarm devices and control outputs
Line plug-in modules
Depending on detector series For details of line plug-in modules –> see page 63
LON plu
g-in module For details of floor repeater display –> see page 78
Con
trol plug-in modules
If more than 7 programmable control
outputs are needed
For details of control plug-in modules –> see page 72
Interfaces
If there is space to fit
E3H021 A5Q00024660 'CERLOOP' gateway Double Euroboard (2 plug-in slots) –> see page 82
E3I020
4602390001 RS232 plug-in module For connecting B2Q191 printer or external printer
K3I090 5108200001 PSA interface board For connecting PSA/pager and internal/external printer
Power supply
For calculating the emergency power operation duration, see page 99
B2F020 A5Q00025281 Converter 115/230 V AC ->29.6 V DC, 6 A
E3C011 5054790001 Plug-in battery charging module
FA2006-A1 A5Q00019356 12 V/24 Ah battery
FA2005-A1 A5Q00019677 12 V/15 Ah battery
Z3I450 4842730001 'CH' mains socket
Housing/options
H38G320 4849430001 'Doors with cut-out' housing kit For details of housing –> see page 57
H23B010
4762100001 Cover Compulsory or H23B040
H23B040 4845900001 Information module Brief operating instructions instead of H23B010
B3Q321 5656840001 'CH' fire brigade operating unit CH only
B3R051 4905130001 '2x24 displays' parallel display Option
Z3I470 4843410001 Cable set for H38... Compulsory
Z3I380 4755670001 I bus flat cable + 'long' supply cable Needed for connection between levels
(e.g. items 28 <–> 38)
Z1K030 4842310001 Terminal block with board holder for
CI11..
Needed per plug-in module (E3H021 2 items)
Z3B171 4843830001 1 x 250 V AC/10 A relay module Intermediate relay for fire controls (max.6)
Prefabricated control panel
CI1142-NL 5469880001 Control panel in H38 housing Prefabricated for 'NL' only
