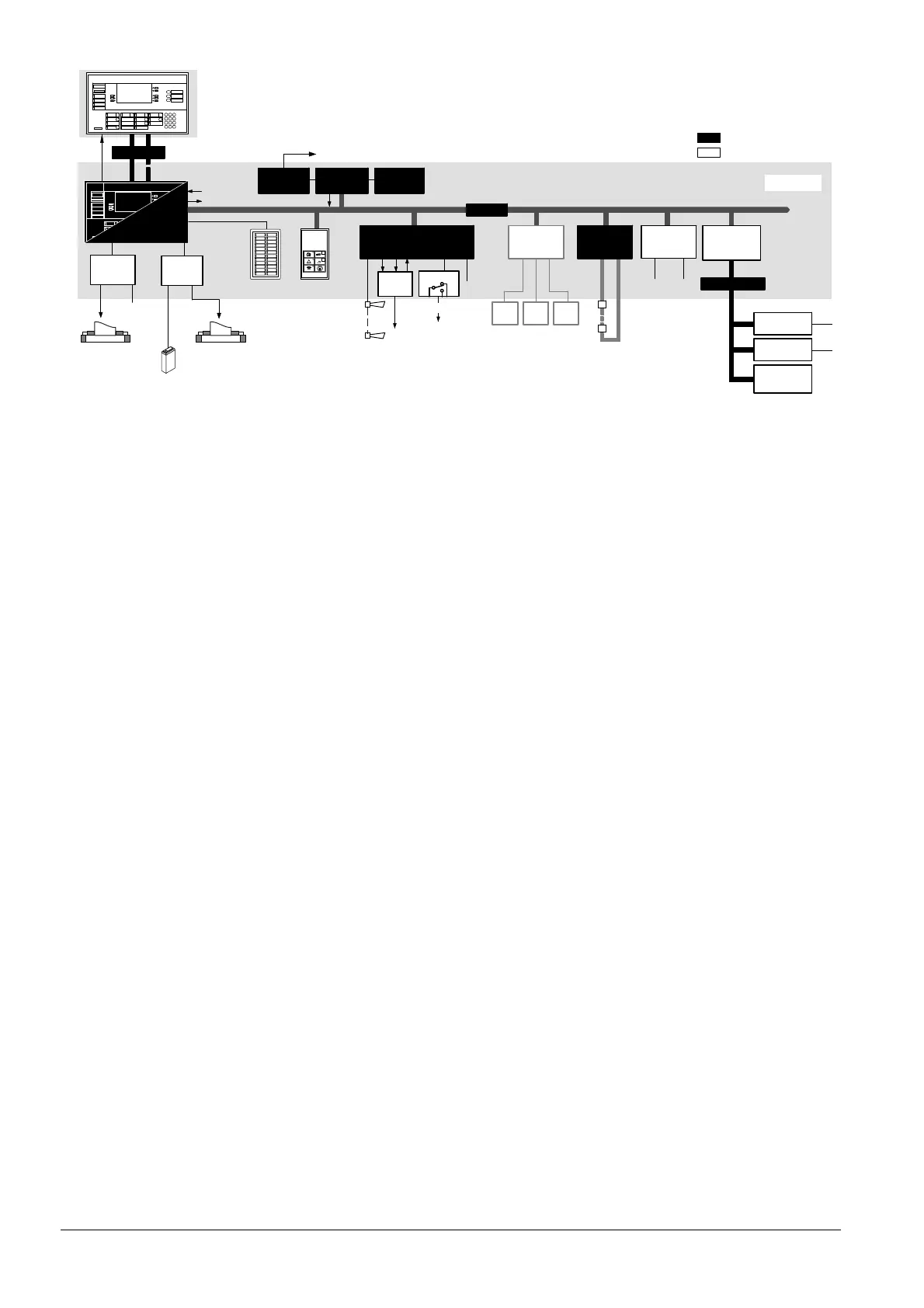

CI1142 in housing H47...
36
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
mains
Basic equipment
Option
B3Q321
B2F020
Battery
FA...
I-Bus
FBF FSK HM
E3L030
1..2
E3G070
Z3B171
1........7
CI1142
E3G...
E3L...
E3M...
B3R051
C-Bus
250VAC 10A
24V
E3C011
24V
5V
24V
RT
24V
AlgoPilot
B3Q...
1
2
E3I020
RS232
K3I090
PSA/Pager
or
Printer
RT = Remote transmission
internal or
external printer
LON-Bus
K3I050
B3Q580/
B3Q59x
E3I040
K3I110
LON synoptic converter
LON I/O card
Floor indicator terminal
CT1142
(additional operating facilities)
Fire control
installation
VdS peripheral
equipment
H47G611 components
Control and operating unit
B3Q... AlgoPilot operating console All AlgoPilot variants –> see page 47
H26T...
Plexi glass doors for AlgoPilot B3Q... Option –> see page 48
Z5B...
Labeling kit Depending on language –> see page 50
E3G070
5466610001 'Universal' control plug-in module For alarm devices and control outputs
Line plug-in modules
Depending on detector series For details of line plug-in modules –> see page 63
LON plu
g-in module For details of floor repeater display –> see page 78
Con
trol plug-in modules
If more than 7 programmable control
outputs are needed
For details of control plug-in modules –> see page 72
Interfaces
If there is space to fit
E3H021 A5Q00024660 'CERLOOP' gateway Double Euroboard (2 plug-in slots) –> see page 82
E3I020
4602390001 RS232 plug-in module For connecting B2Q191 printer or external printer
K3I090 5108200001 PSA interface board For connecting PSA/pager and internal/external printer
Power supply
For calculating the emergency power operation duration, see page 99
B2F020 A5Q00025281 Converter 115/230 V AC ->29.6 V DC, 6
A
B1F120 4952330001 Converter 115/230 V AC ->24 V DC, 3 A Generally for supplying fire controls
B2F060 5112850001 Converter 115/230 V AC ->24 V DC, 4.5
A
E3C011 5054790001 Plug-in battery charging module
FA2006-A1 A5Q00019356 12 V/24 Ah battery
FA2007-A1 A5Q00022897 12 V/38 Ah battery
Z3I450 4842730001 'CH' mains socket
Z3I1040 A5Q00004129 'CH' remote transmission kit
Z3I041 4962900001 Surge arrester kit Option
Housing/options
H47G611 4953850001 'Doors with cut-out' housing kit For details of housing –> see page 58
H23B010
4762100001 Cover Rather than H23B040 or B3Q321 or B3R051
H23B040 4845900001 Information module Brief operating instructions
B3Q321 5656840001 'CH' fire brigade operating unit CH only
B3R051 4905130001 '2x24 displays' parallel display Option
Z3I510 4848460001 Cable set for H47... / CI11... Compulsory
Z3I380 4755670001 I bus flat cable + 'long' supply cable Needed for connection between levels
Z1I020 4754990001 9-wire connection cable with board hol-
der, 0.5 m
For internal advance wiring
Z1I030 4755090001 19-wire connection cable with board
holder, 0.5 m
For internal advance wiring
Z1I060 5258020001 4-wire connection cable with board hol-
der, 0.5m
For internal advance wiring
Z1I100 A5Q00007486 10-wire connection cable with board
holder, 0.5 m
For internal advance wiring
Z3B171 4843830001 1 x 250 V AC/10 A relay module Intermediate relay for fire controls (max.8)
Z3I330 4751560001 Terminal block, 2x20 terminals 3 items are supplied with H47G611
Z3I420 4838180001 Back-up terminal block For extra back-up terminals
Z3G220 5258440001 Marine kit
Z3G240 5329500001 Kit for increased vibrations
