Compatibility of data file and CC/CI/CT program
The data file database structure must be totally compatible with the database structure of
the station into which it is loaded. AlgoWorks checks that such compatibility exists before
downloading takes place.
If the versions do not match, AlgoWorks returns an error message and the download op-
eration is not carried out.
Description
Program name (on EPROM):
C C Q 0 0 5. 1 4 1: ’C’ = devices program
12345678 2: Station type; ’C’ = CC11, ’I’ = CI11, ’T’ = CT11
3: RAM size; ’Q’ = 2x 512k x 8 (1142), ’V’=2x 512k x 8
(1145)
4+5: National version, not used
6: Software version, 0..9
7+8: Software version, 00..99
Database structure:
5. 1 x 1: Software version, 0..9
123 2+3: Software version, 00..99

If items 6+7 of the CC/CI/CT11 program name are identical with items 1+2 of the data-
base structure of the relevant data file, they are compatible
Example:
1. Program name: CCQ005.14, database structure of data file: 5.13
 compatible
2. Program name: CCQ005.14, database structure of data file: 4.43
 not compatible
CC/CI/CT program version
The program names are printed on the EPROMs
When the SWE11 communicates with a station, the station program version number is
displayed on the SWE11 information line
 Function Comm.  Fast Download –> CS11 (only with modem box B3D021)
 Function Comm.  Download –> CS11
 Function Comm.  Customer text –> CS11
 Function Comm.  Fast Upload Loc. –> PC (only with modem box B3D021)
 Function Comm.  Upload Loc. –> PC
 Function Operation  Switch –> Online mode
Data file versions
AlgoWorks indicates the database structure version number of the existing station data
files in the list of stations.

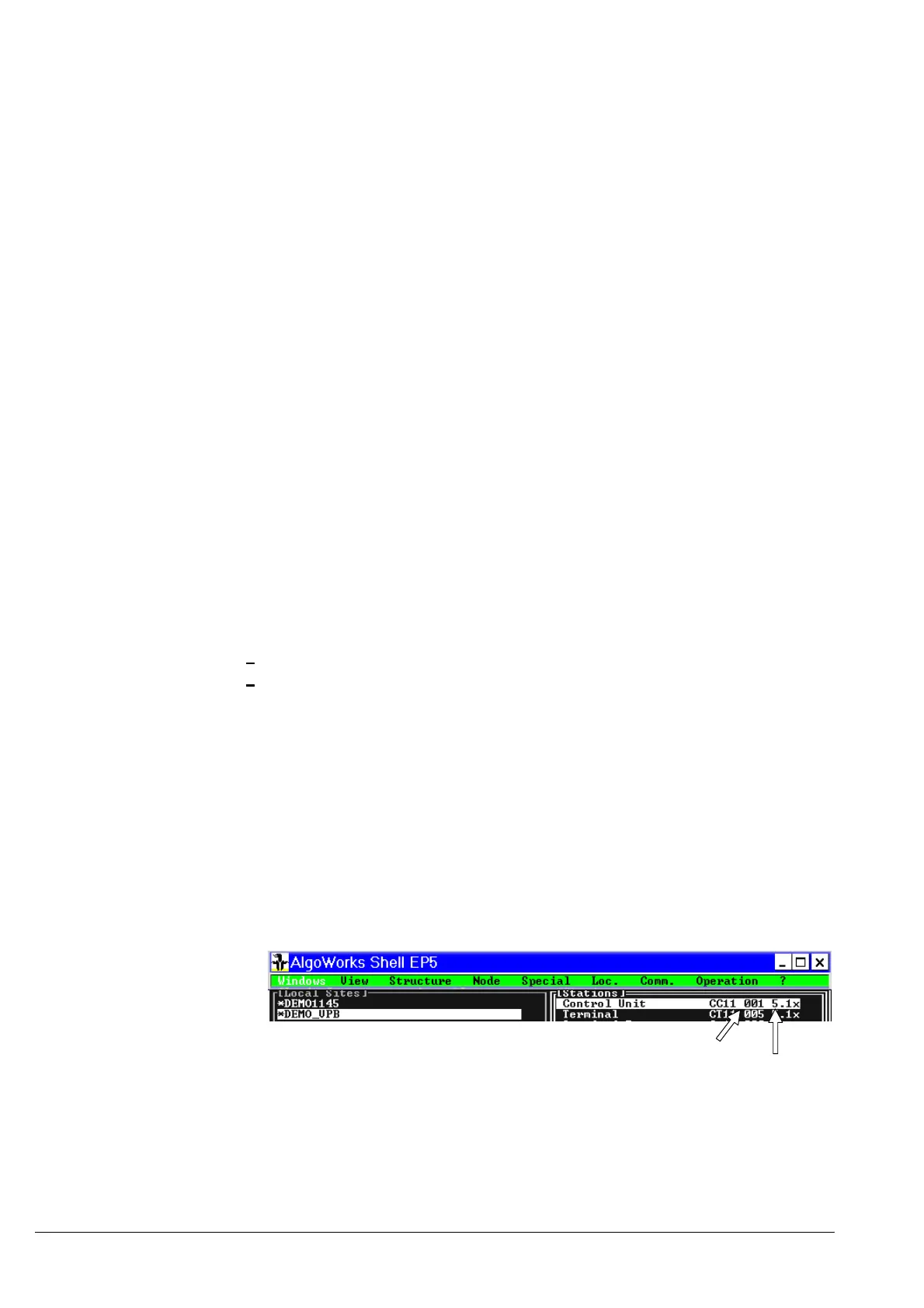

Example:
C-Bus Address
Version of the database structure
