Supplementary information
16.10 Communication via fault-tolerant S7 connections
CPU 410-5H Process Automation/CPU 410 SMART
System Manual, 10/2013, A5E32631667-AA
249
Availability can best be enhanced using a duplex fiber-optic ring. If a break of the two-fiber
fiber-optic cable occurs, communication is maintained between the systems involved. The
systems then communicate as if they were connected to a bus system (line). A ring topology
basically contains two redundant components and automatically forms a 1-out-of-2
redundancy node. The fiber-optic network can also be set up in star topology as redundant
bus.
If one electrical cable segment fails, communication between the participating systems is
also upheld (1-out-of-2 redundancy).
The following examples illustrate the differences between a duplex fiber-optic ring and a dual
electrical bus system.
The number of connection resources required on the CPs depends on the network used.
If you implement a duplex fiber-optic ring (see figure below), two connection resources are
required per CP. In contrast, only one connection resource is required per CP if a double
electrical network (see figure after next) is used.

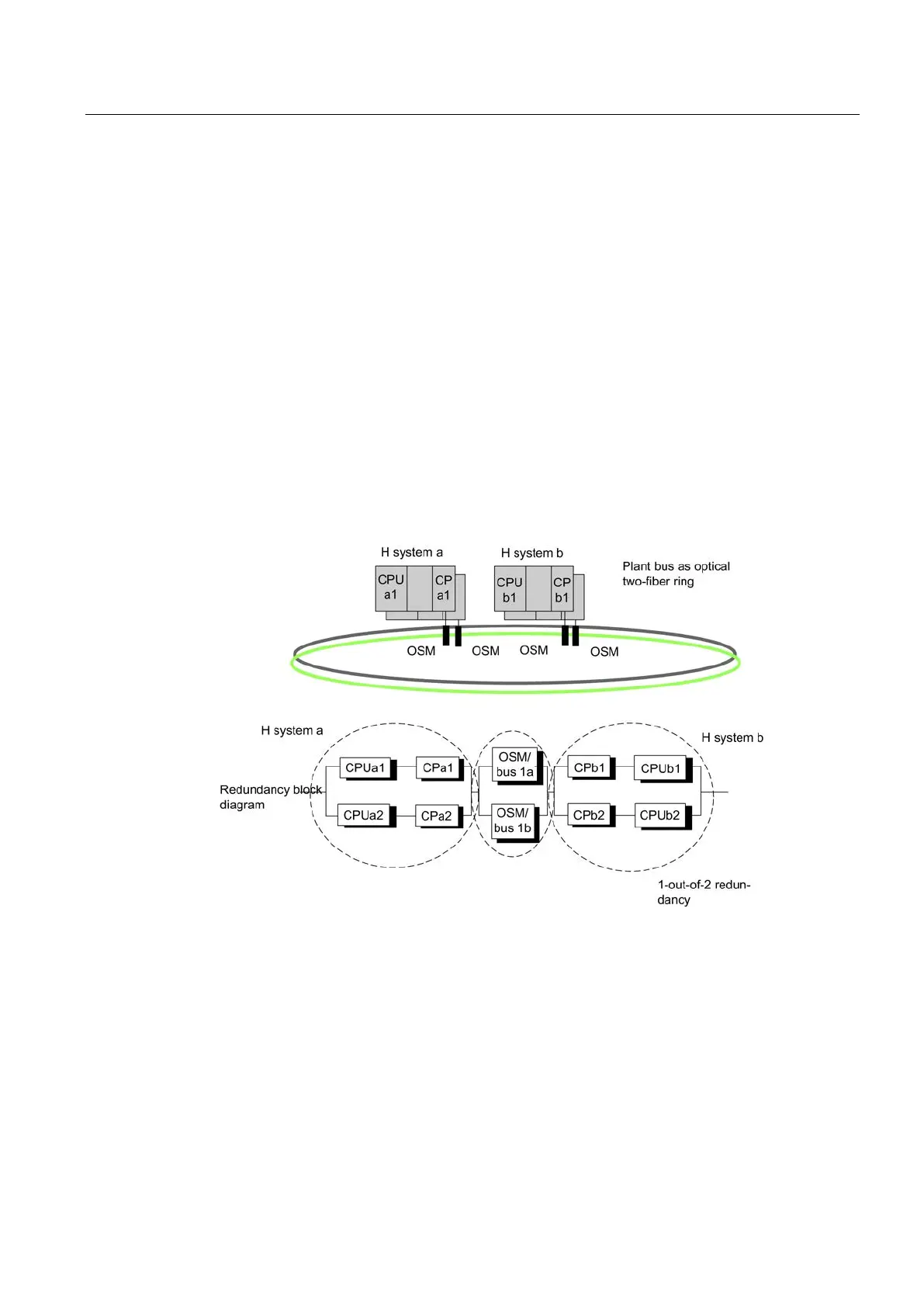

Figure 16-15 Example of redundancy with fault-tolerant system and redundant ring
Configuration view ≠Physical view
