Supplementary information
16.10 Communication via fault-tolerant S7 connections
CPU 410-5H Process Automation/CPU 410 SMART
250 System Manual, 10/2013, A5E32631667-AA

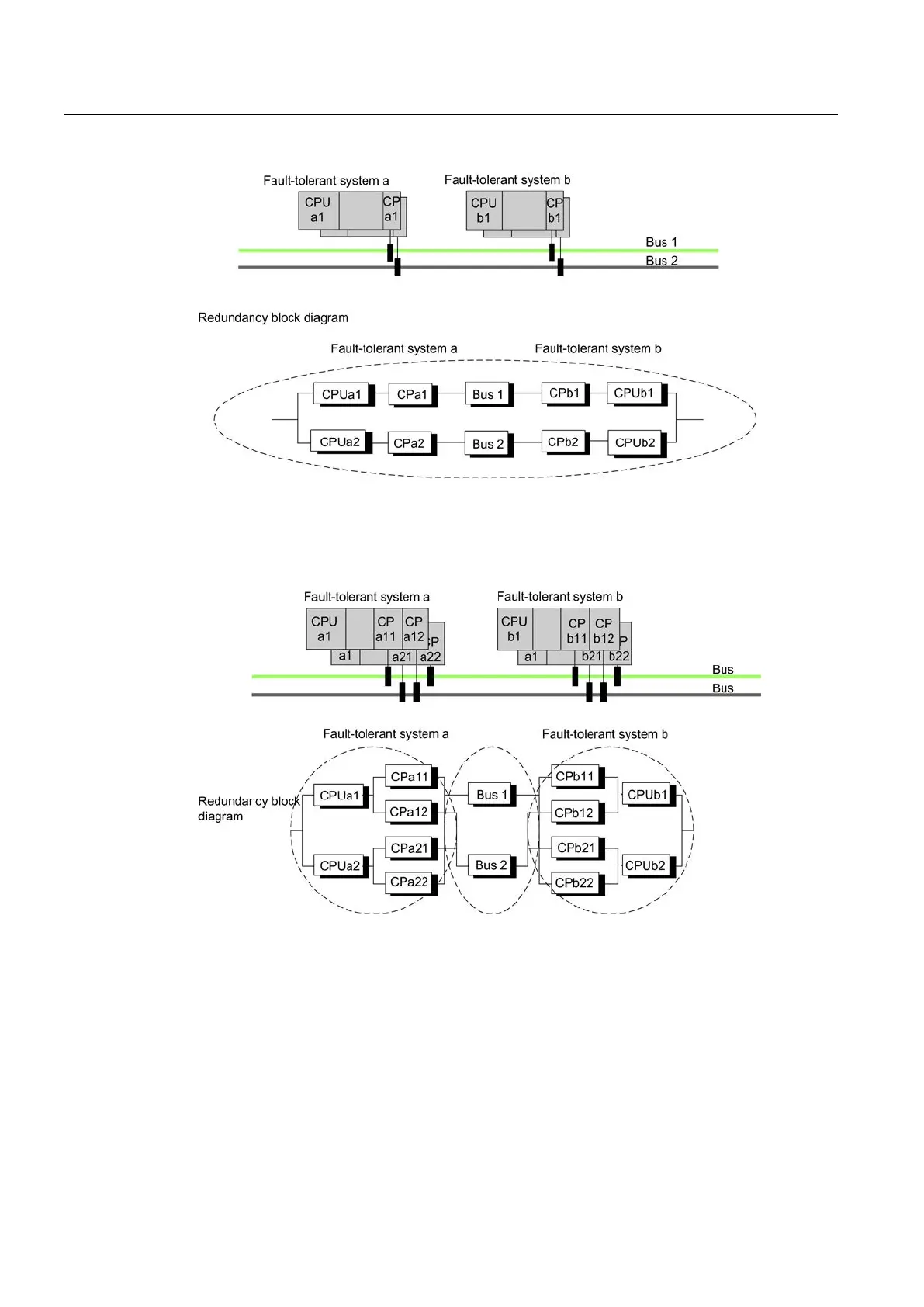

Figure 16-16 Example of redundancy with fault-tolerant system and redundant bus system
Configuration view = Physical view
Figure 16-17 Example of fault-tolerant system with additional CP redundancy
Configuration view = Physical view
