LMVSeriesTechnicalInstructions 

DocumentNo.LV5‐1000

SCCInc. Page7 Section4



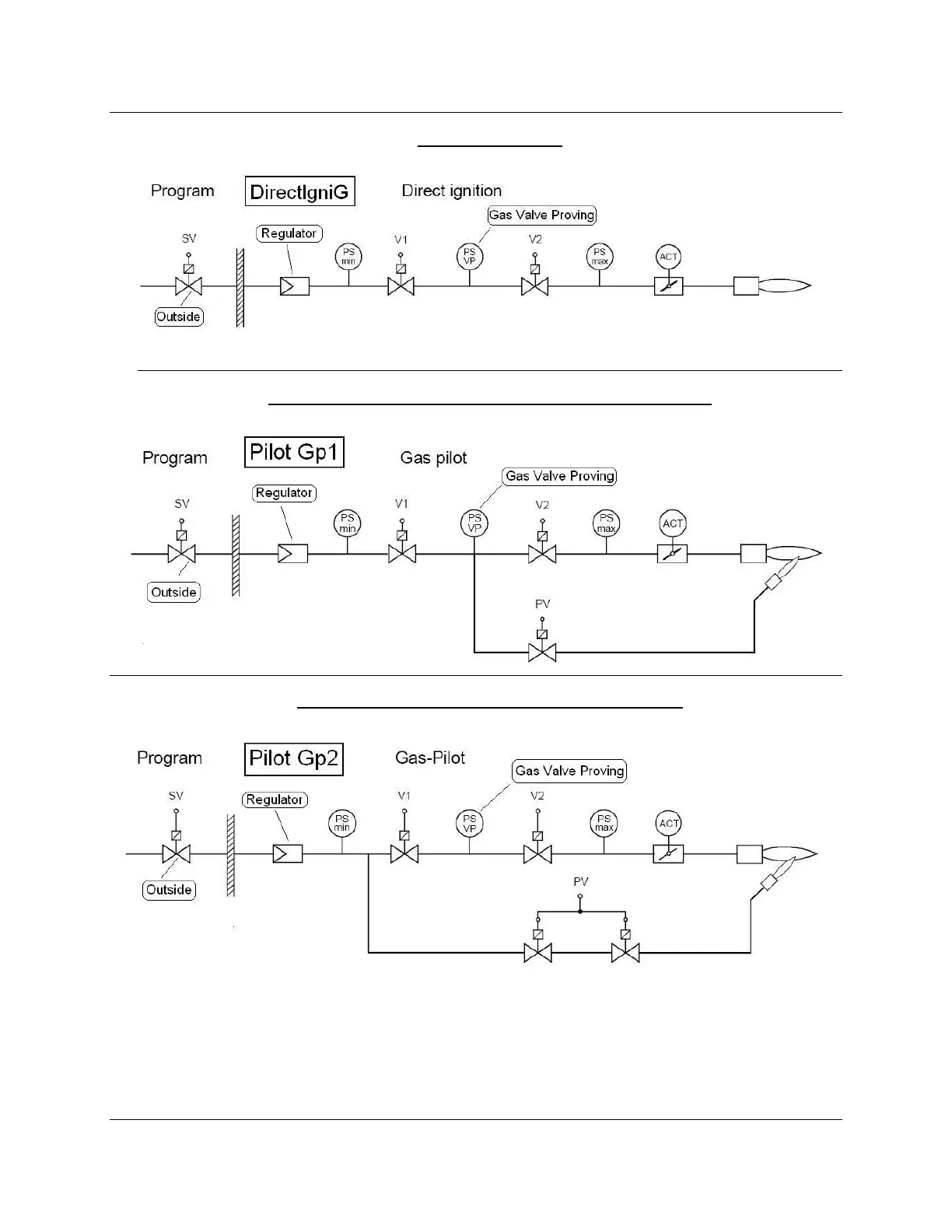

DirectSparkIgnition



PilotIgnition(PilotFromBetweenMainGasValvesV1andV2)



PilotIgnition(PilotBeforeMainGasValvesV1andV2)



Legend:



ACT= ActuatorSV= Shutoff(safety)valve

V1= Upstreamgasvalve(main)  PS= Pressureswitch

V2= Downstreamgasvalve(main)  VP= Valveproving

PV= Pilotvalve


