Siemens LMV5 Series Technical Instructions

Technical Instructions LMV Series
Document No. LV5-800
0
Appendix A Page 24 SCC Inc.
Pilot Valve Proving (continued)
Option 2: On Startup, SKP25 o
n the Main Gas Train, Solenoid Valves on the Pilot Train

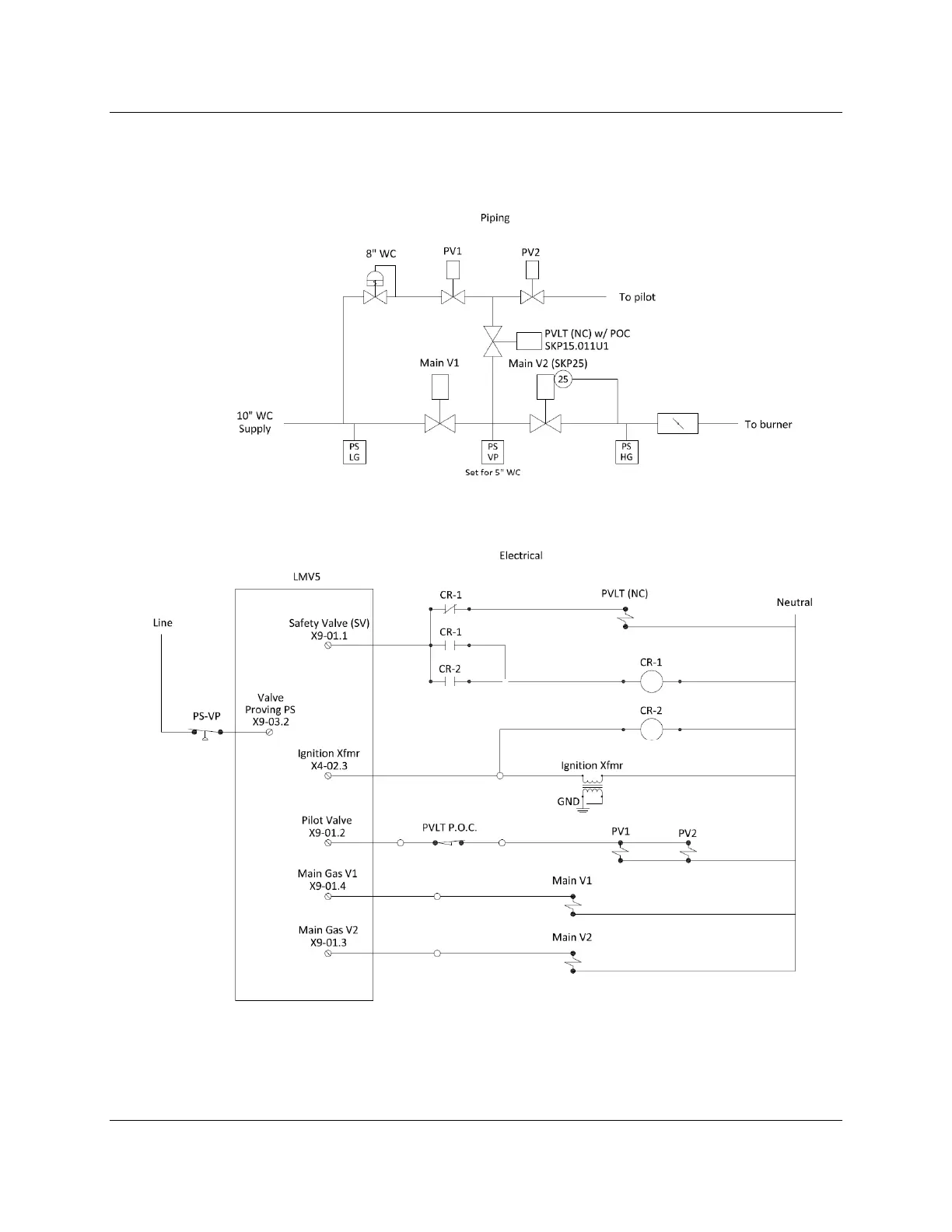

Figure 10: Option 2 Piping and Electrical Schematics
