LMVSeriesTechnicalInstructions
DocumentNo.LV5‐1000
SCCInc. Page9 Section4

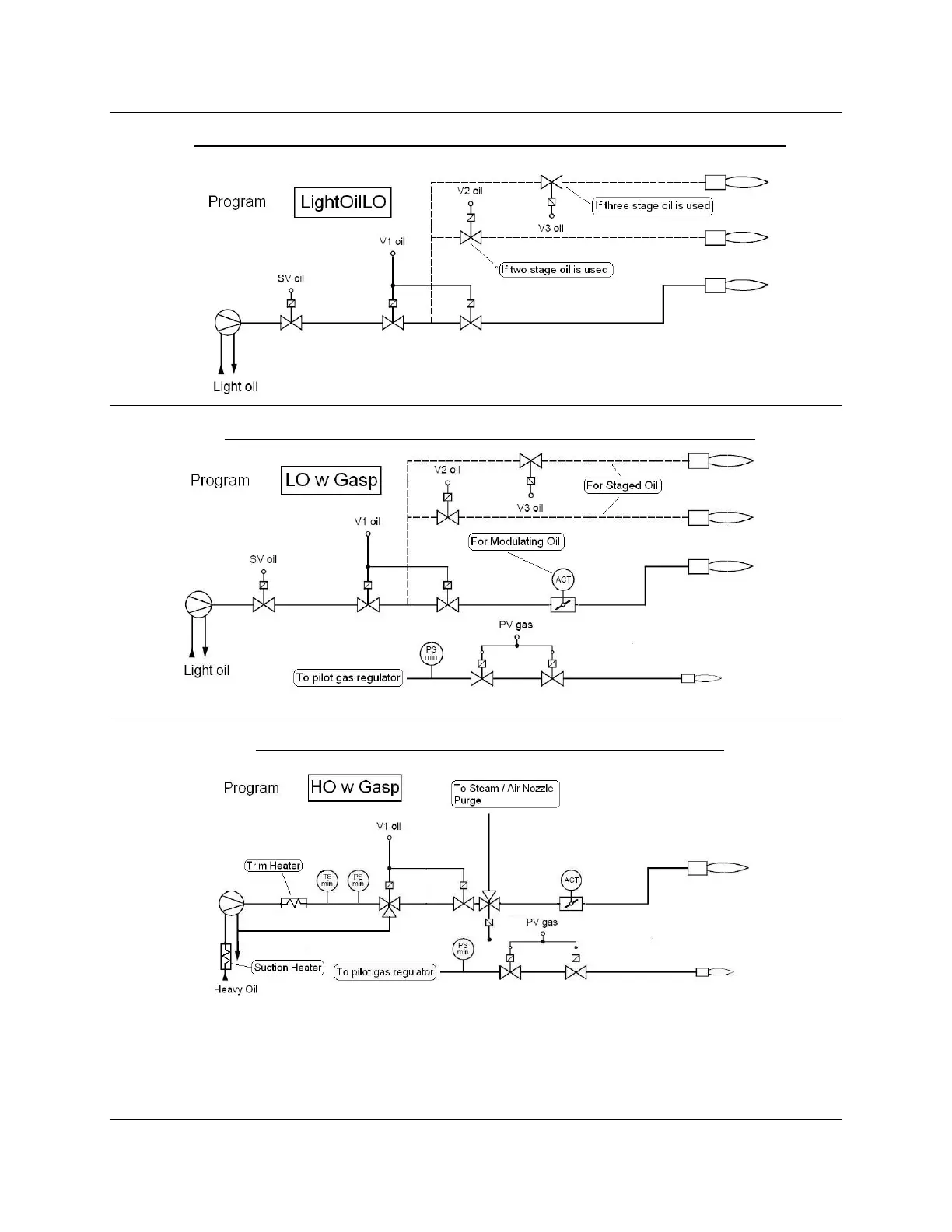

DirectSparkIgnitionforLightOil,Single‐stageorMulti‐stage(othertrainspossible)
GasPilotIgnitionforLightOil,StagedorModulating(othertrainspossible)
GasPilotIgnitionforHeavyOil,Modulating(othertrainspossible)
Legend:
ACT= Actuator SV= Shutoff(safety)valve
V1= Oilvalves(main) PS= Pressureswitch
V2= Stage2oilvalve PV= Pilotvalve
V3= Stage3oilvalve TS= Temperatureswitch
