LMV Series Technical Instructions
Document No. LV5-10
00
SCC Inc. Page 9 Section 1

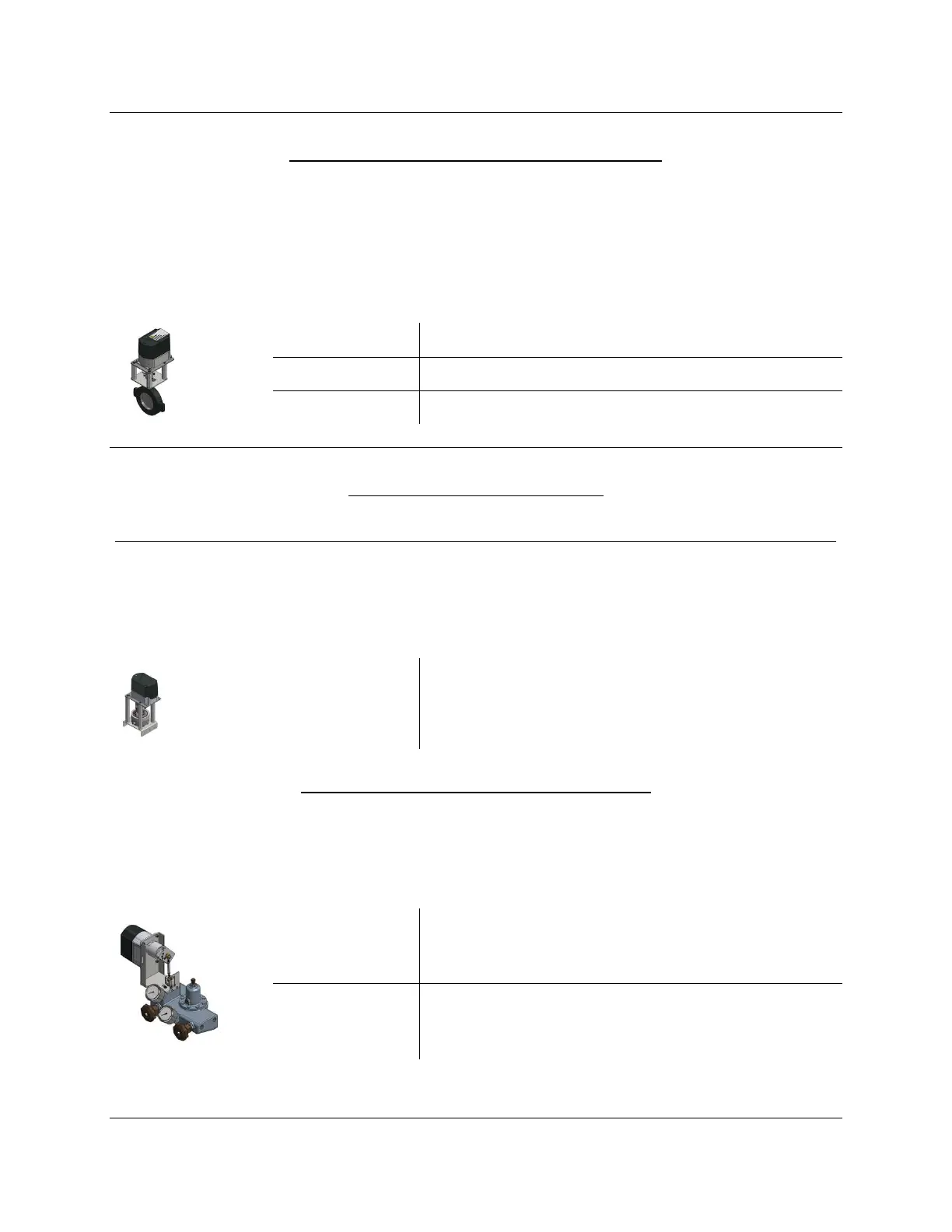

Gas Firing Rate Control Valve (continued)
Pre-built valve actuator assemblies are availa
ble that mount an SQM45… or SQM48… actuator
to a VKF… gas butterfly valve. A variety of VKF… valves are available from 1-1/2” to 8”. The
most common assemblies are listed below. For more information about VKF… valves, refer to
Document No. CVLV-1000. For more information about valve actuator assemblies using VKF…
valves, refer to Document No. VA-3000.
VA45.2-3.0VKF
SQM45 to 3” VKF butterfly valve
VA45.2-4.0VKF
SQM45 to 4” VKF butterfly valve
VA45.2-6.0VKF
SQM45 to 6” VKF butterfly valve
Oil Firing Rate Control Valve
Valve Actuator Assemblies – Qty (1) Required if
Firing Oil (Not Using a Cleaver Brooks Oil Valve)
Pre-built valve actuator assemblies are availa
ble to mount an SQM45… or SQM48… actuator to
a Hauck S, AS, B, F, G, or K series oil valve. For more information about valve actuator
assemblies using Hauck oil valves, refer to Document No. VA-4000.
VA…
Valve actuator assemblies mounting an SQM4
5… or
SQM48… actuator to a Hauck oil valve
Cleaver Brooks Oil Valve Retrofit Kit - Optional
When retrofitting a Cleaver Brooks boiler,
the following kits are available for the oil metering
valve. Refer to Document No. CPBK-5000 for technical information or Document No. CPBK-
5100 for installation instructions.
BR-48CBOIL
Bracket for mounting an SQM48… actuator to a
Cleaver Brooks oil metering valve
BR-45CBOIL
Bracket for mounting an SQM45… actuator
to a
Cleaver Brooks oil metering valve
