Siemens LMV5 Series Technical Instructions

TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section5 Page12SCCInc.


NOTE:ThetotaltimeofthestandardizationshowninFigure5‐3is70seconds withaVFDramptime
of30seconds.LongerVFD/LMV52ramptimeswillincreasethetotaltimetakenforthe
standardization.

NOTE:TheVFDisspannedso20mA=62Hz.Thus,19.5mAisapproximately60Hz.

BasedoffoftheRPMthatwasreadat19.5mA(inthiscase3544RPM)andanassumptionof0RPMat
minimumsignal(typically4mA),atwo pointli
nearinterpolationisautomaticallydonebytheLMV52,
whichestablishesthelinearrelationshipbetweentheanalogsignalandtheblowerRPM.This
relationshipisshowninFigure5‐4.




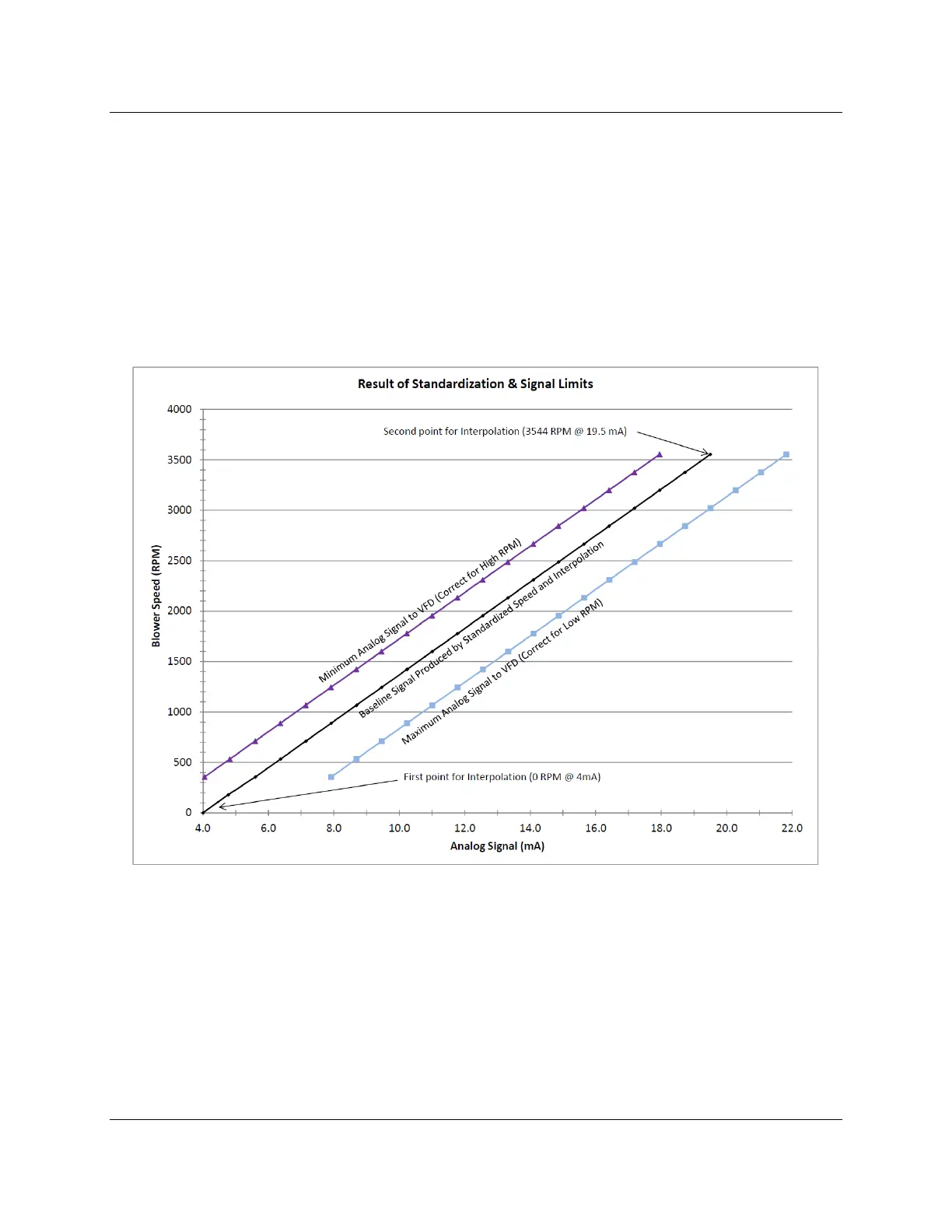

Figure5‐4:Resu
ltofStandardization(2‐poleblowermotor)andAnalogSignalCorrectionLimits


Whentheburnerisinoperation,theLMV52hasactive,closed‐loopcontroloftheblowermotorspeed
andcancompensateformotorslipandotherfacto
rswithinlimits.Theanalogsignalcanbeincreasedto
compensateforlow
blowerRPManddecreasedtocompensateforhighblowerRPM.Theseanalog
signallimitsarealsoshowninFigure5‐4.

IftheanalogsignalisincreasedtothemaximumallowablesignalandtheblowerRPMisstilllow,a
messagewillbedisplayedontheAZLthatstates“Fan speednotreached”.

