TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section5 Page14SCCInc.


Figure5‐5illustratesthesameblowerthatwasstandardizedinFigure5‐3,thistimerampingfromlow
firetohighfirewhentheburnerisoperating.Theblacklineisthestandardizedspeedline(thesame
lineasshowninFigure5‐4).Thelinessurroundingtheblacklinearethedifferentspeedmonitoring
bands.Thewidthofeachbandin%andthetim
epermittedineachbandisshowninFigure5‐5.






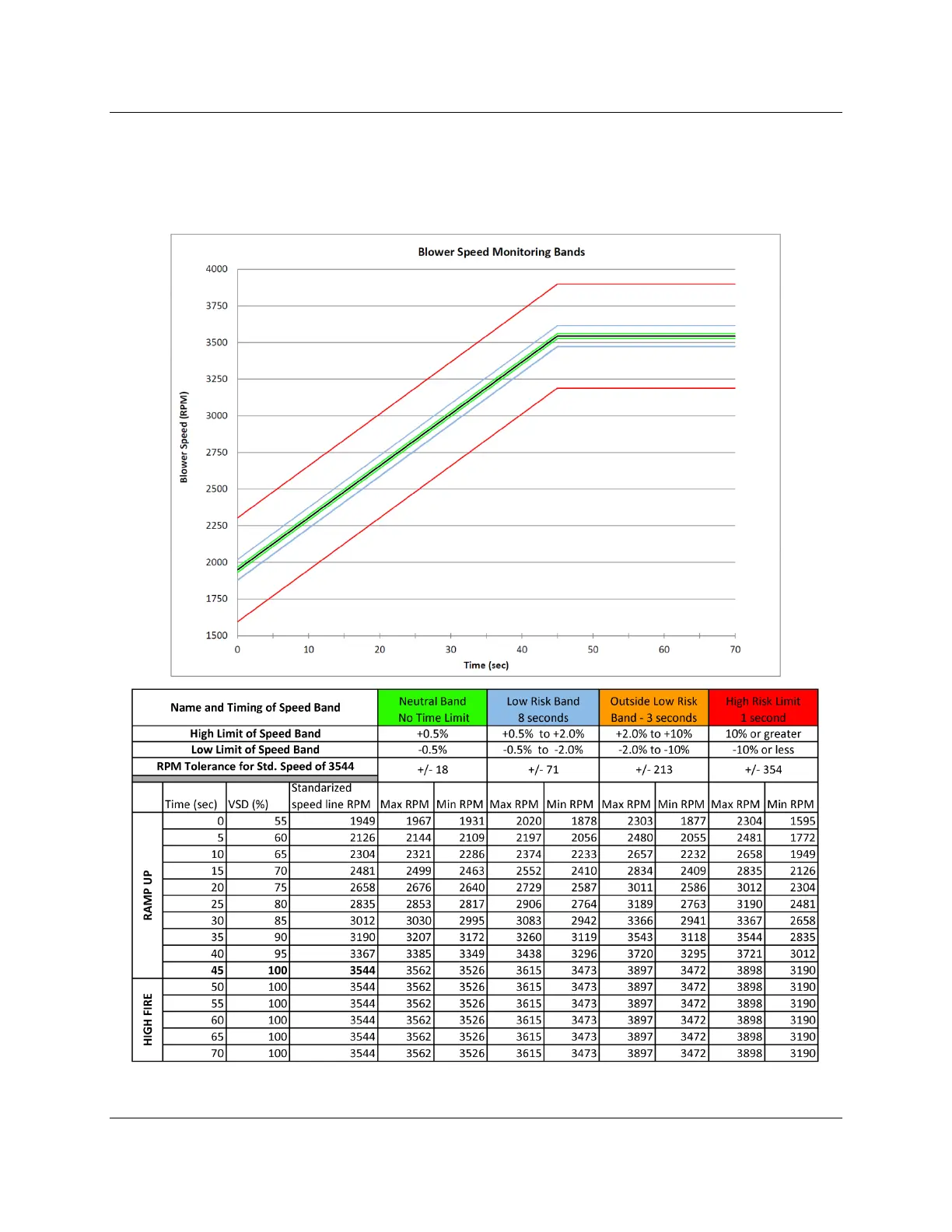

Figure5‐5:BlowerSpeedMonitoringBands

