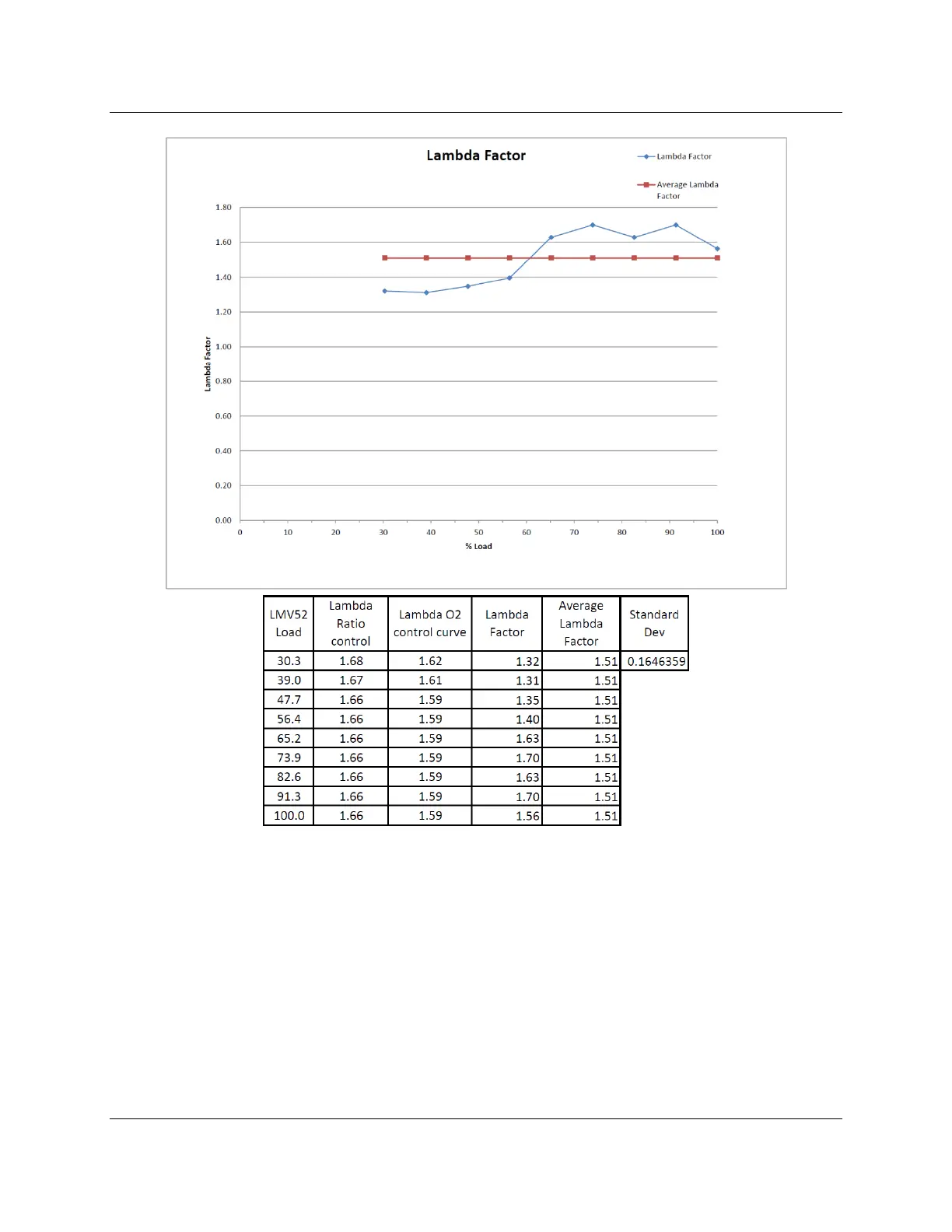

Figure6‐7:ExampleofTypicalLambdaFactorforO
2
ControlCurvesinFigure6‐6(above)

TheLambdaFactorcurvesserveasatooltoevaluatehowaccurateandrepeatablethefundamental
mechanicalsystemsoftheburnerareandhowwellallthecurveswerecommissioned.Ingeneral,the
LambdaFactorcurveshouldbeasconstantor"flat"aspossible.Theactualnumericalvalueisnot
important,buttheconsistencybetweenpointsis.Anapproxi
mateguideforevaluationoftheLambda
Factor:

 DifferenceinLambdaFactorbetweenadjacentpoints‐>lowernumbersarebetter.Max=0.45
(HighernumbersmayleadtoO
2
trimdeactivationsonsomeburnersduringmodulation).
 StandardDeviationofallpointsonthecurve‐>lowernumbersarebetter.Max=0.40(Higher
numbersmayleadtoO
2
trimdeactivationsonsomeburnersduringmodulation). 

