LMV Series Technical Instructions
Document No. LV5-1000
SCC Inc. Page 17 Section 1

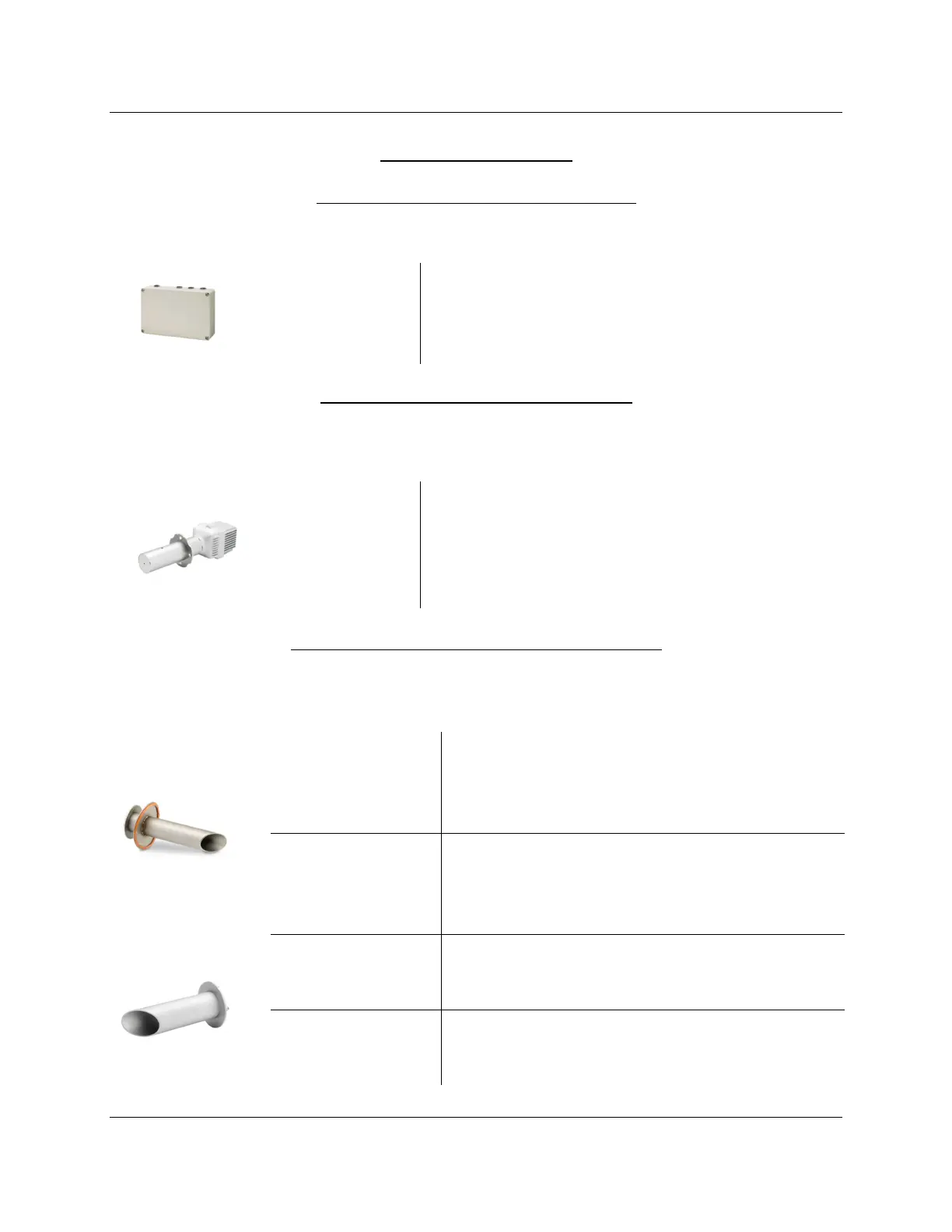

O2 Trim Components
O2 Module – Qty (1) Required for O2 Trim
For O
2
trim, the following CANbus module is required to connect the O
2
sensor to the LMV52.
PLL52.110A100
Module to connect O
2
sensor to an LMV52, supplied
with (6) M16 to 1/2” NPT conduit adapters
compatible with liquid tight conduit fittings
O2 Sensor – Qty (1) Required for O2 Trim
The following O
2
sensor is necessary for running O
2
trim on an LMV52. For technical
information on the O
2
sensor, see Document No. P7842.
QGO20.000D17
O
2
sensor, internally heated, zirconium dioxide
measuring cell, supplied with (2) M16 to 1/2” NPT
conduit adapters compatible with liquid tight fittings
Max. flue gas temperature: 575 °F
Flue Gas Collector – Qty (1) Required for O2 Trim
A flue gas collector is required to mount the O
2
sensor in the stack. Four options are available
as described below.
AGO20.001SDS-KT
Weldless flue gas collector, 7.25” long, to be
mounted into stacks 12-16” in diameter, not to be
used on rectangular stacks
AGO20.002LDS-KT
Weldless flue gas collector, 10.5” long, to be
mounted into stacks 18-36” in diameter, not to be
used on rectangular stacks
AGO20.001A
Flue gas collector, 7.25” long, to be welded into
stacks up to 16” in diameter
AGO20.002A
Flue gas collector, 10.5” long, to be welded into
stacks larger than 16” in diameter
