LMV Series Technical Instructions
Document No. LV5-10
00
SCC Inc. Page 13 Section 9
9-8: Viewing the LMV5x Dashboard
When connected to the AZL5,
the ACS450 can provide an overview screen or “dashboard”. This
provides a useful summary of the LMV5 inputs and outputs, as well as the operating state of
the LMV5. The following steps outline the procedure for viewing the ACS450 dashboard:
1. Connect to the AZL5 at any password level. This is covered in Section 9-3.
2. Once connected, go to the “Parameters” drop down menu, followed by the “Operating
State” menu. Click on “Normal Operation”, and the dashboard should appear detailing the
operating state of the LMV5. The dashboard looks like Figure 9-8.1 below.

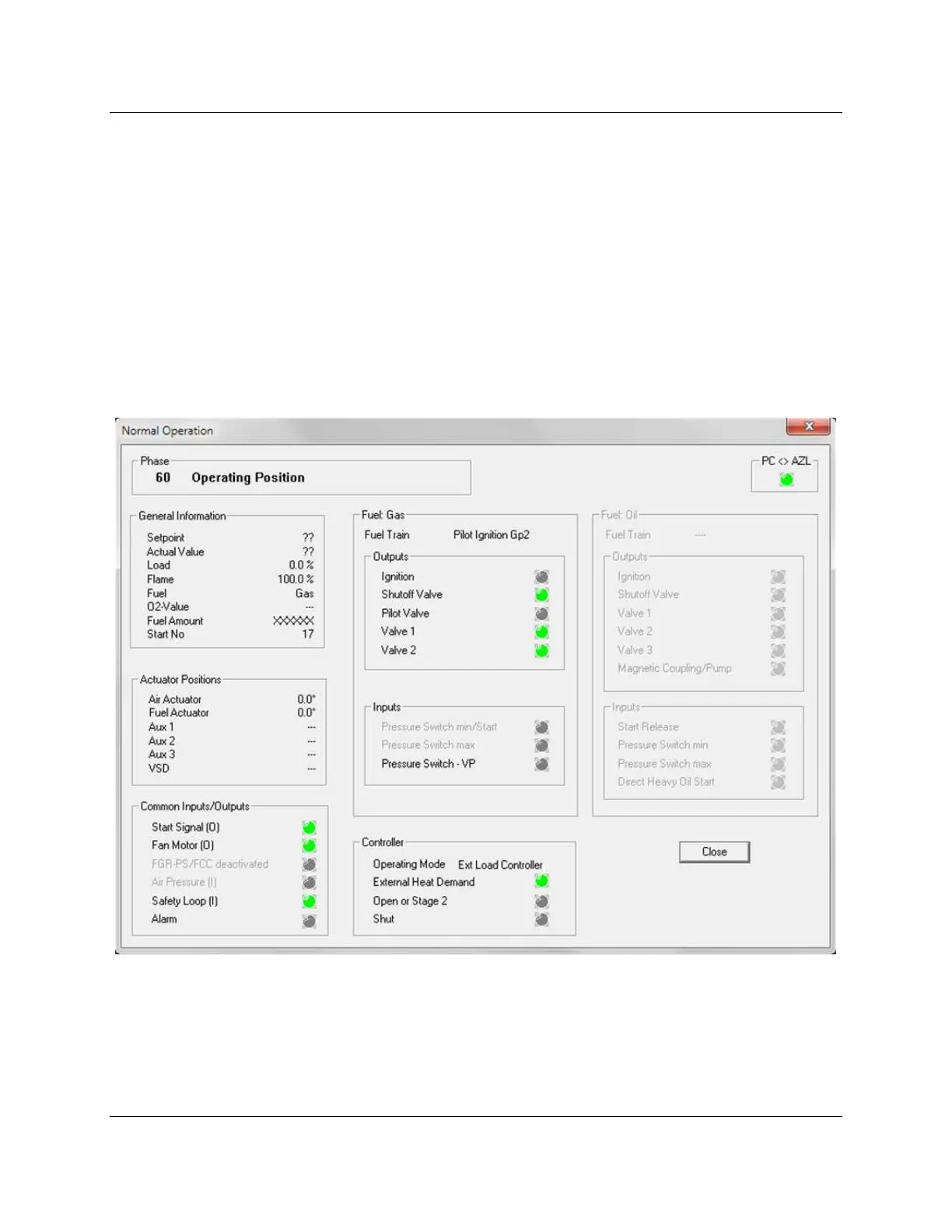

Figure 9-8.1: The ACS450 Dashboard
