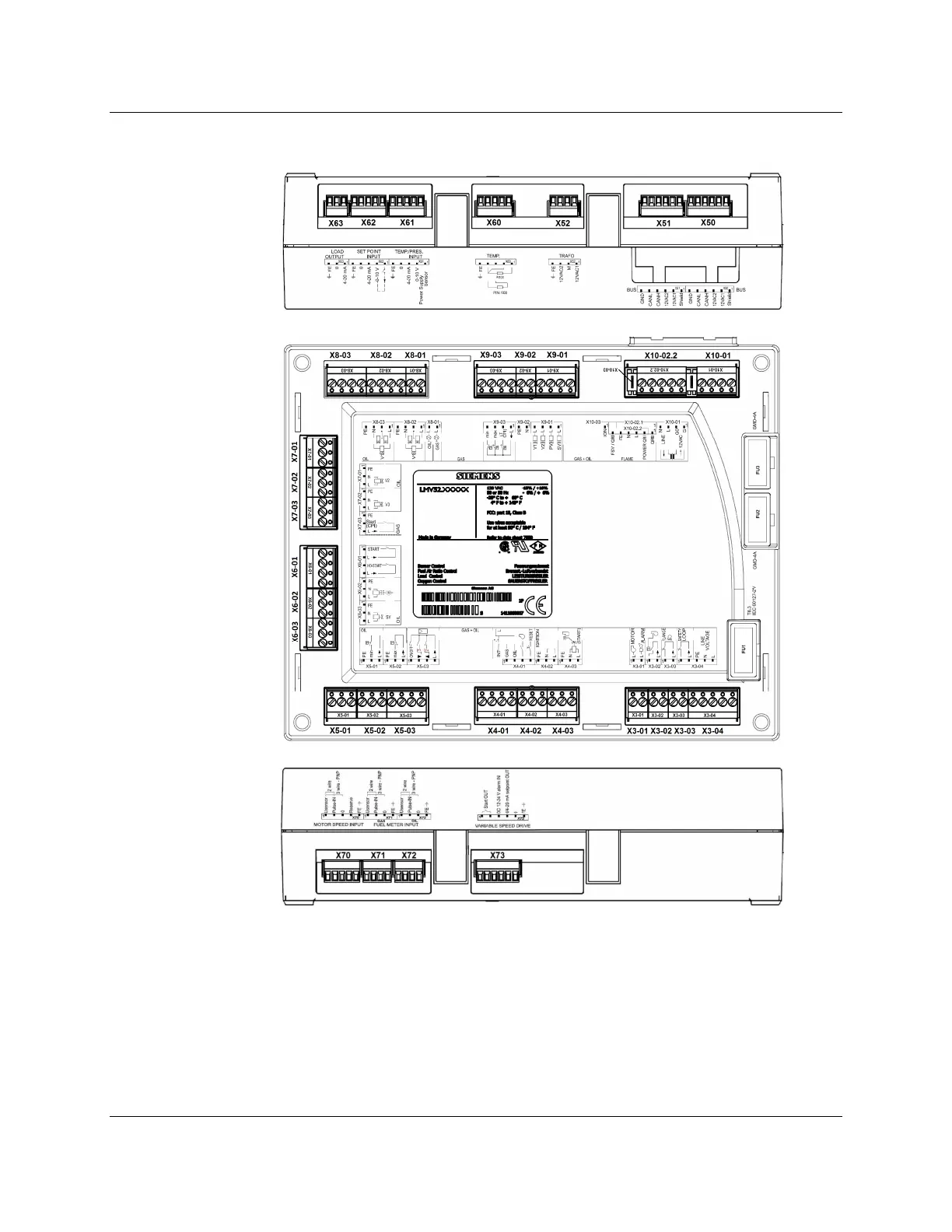

2-2: Terminal Descriptions
Top
Front
Bottom
General notes:
1. Total combined load of all 12
0VAC outputs cannot exceed 5 Amps.
2. All “Line, fused” terminals are internally connected.
3. All “Neutral” terminals are internally connected.
4. All “PE” terminals are internally connected.
5. All “0” terminals are internally connected.
