Technical Instructions LMV Series
Document No. LV5-100
0
Section 1 Page 4 SCC Inc.

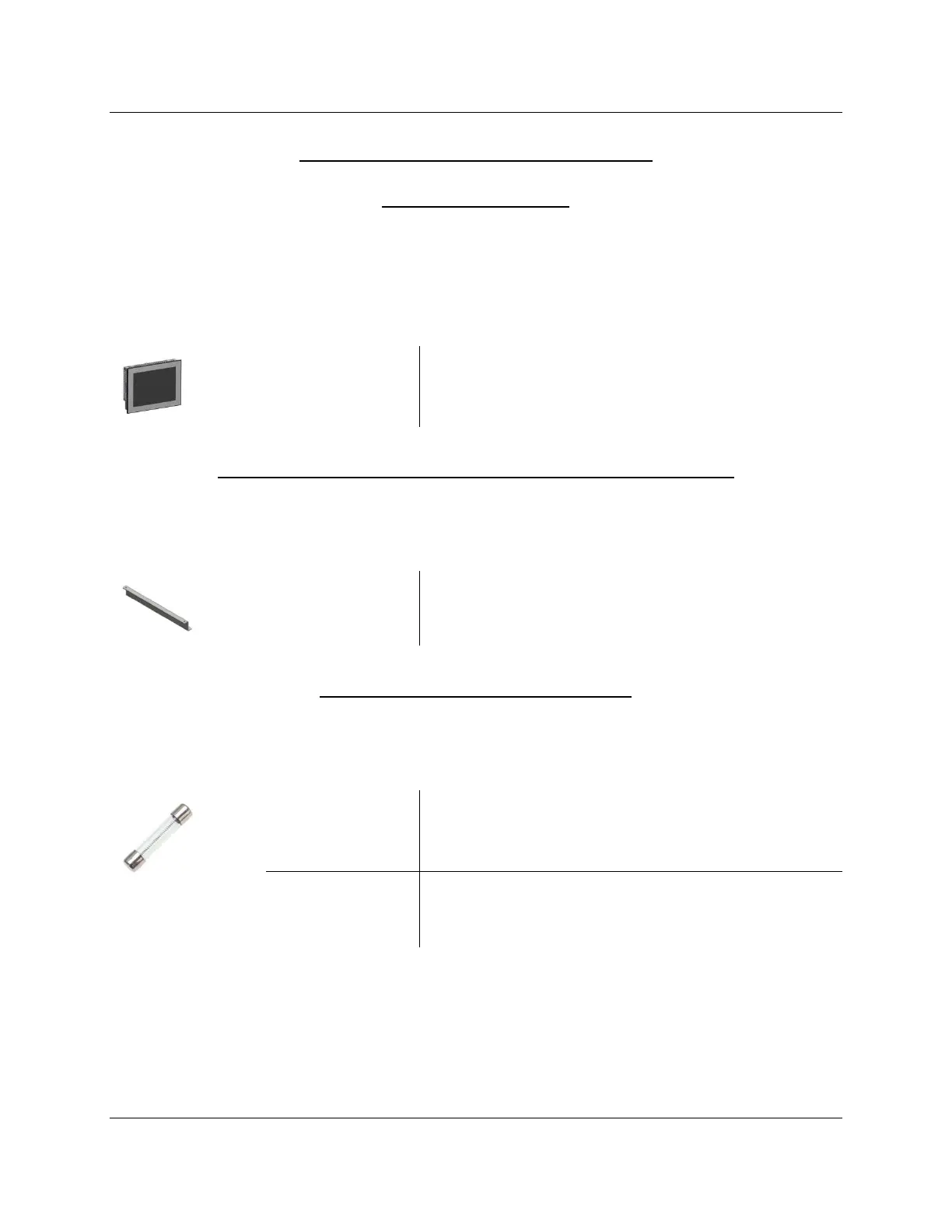

Control Panel Components (continued)
Touchscreens – Optional
Touchscreen kits are available to provide a
human machine interface for the LMV5. Kits come
with a touchscreen and a plate kit with all necessary inputs and outputs. Standard
communication is via Modbus TCP/IP. Other communication types are available. For more
technical information about touchscreens, refer to Document No. TS-1000.
TS…
Touchscreen kits with 6” or 10” touchscreen,
power
supply, interconnect terminals, and optional PLC
LMV5 Mounting Brackets – Qty (2) Recommended But
Not Required
Recommended brackets for mounting the L
MV5 in an electrical enclosure to offset the base
unit from the subpanel, allowing easy access to plugs. Two brackets are needed per LMV5.
BR-LMV5
Brackets for mounting an LMV5 in an el
ectrical
enclosure
Control Panel Spare Parts – Not Re
quired
The LMV5 has three replaceable fuses:
one main power fuse and two secondary CANbus fuses.
Each LMV5 comes with spares for each fuse. Additional spare fuses are available if necessary.
FUSE6.3A-SLOW
5 pack of LMV5 primary fuses - 6.3A, 250V,
5x20mm, slow blow, for 120 VAC power
FUSE4.0A-SLOW
5 pack of LMV5 secondary CANbus fuses –
4.0A,
250V, 5x20mm, slow blow, for 12 VAC power
