Navigation
The first dialog is called using the "START" softkey in the diagnostics operating area. The
horizontal SK7 softkey is used.

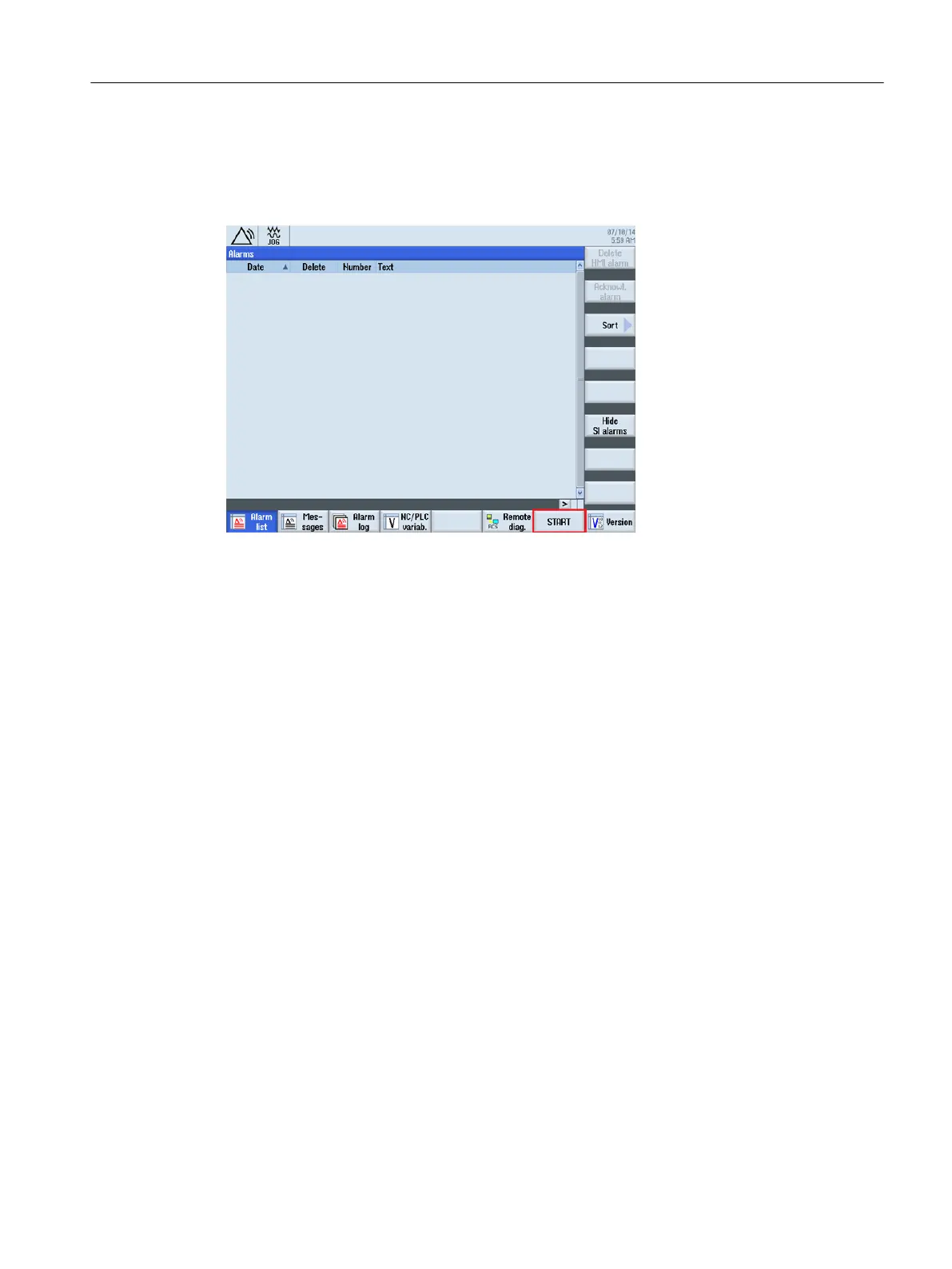

Figure 2-6 Start softkey „START“ in the machine operating area, AUTO mode
You can call the second dialog from the first dialog with the "Next Mask" softkey. You can
return to the root screen of the operating area by pressing the "EXIT" softkey (see the screen
above).
Using the "EXIT" softkey, you can also return to the root screen of the operating area from the
second dialog (see the screen above). You can return to the first dialog via the "Back to Mask"
softkey.
Procedure
The necessary steps are described in the following chapters:
1. Creating the configuration file (COM file) (Page 18)
2. Saving the configuration file in the OEM directory (Page 21)
3. Creating the online help (Page 22)
4. Integrating the online help and saving the files to the OEM directory (Page 25)
5. Copying easyscreen.ini into the OEM directory (Page 26)
6. Registering the COM file in easyscreen.ini (Page 26)
7. Testing the project (Page 26)
Getting Started
2.2 Project example
SINUMERIK Integrate Run MyScreens (BE2)
Programming Manual, 12/2017, 6FC5397-1DP40-6BA1 17
