Diagnostics
6
6.1
Overview
Overview
The OPC UA server offers a variety of diagnostics information, as described in the OPC UA
Standard Part 5 - "Information Modell", Chapter 6.
This diagnostics information can be found under the Server Node:

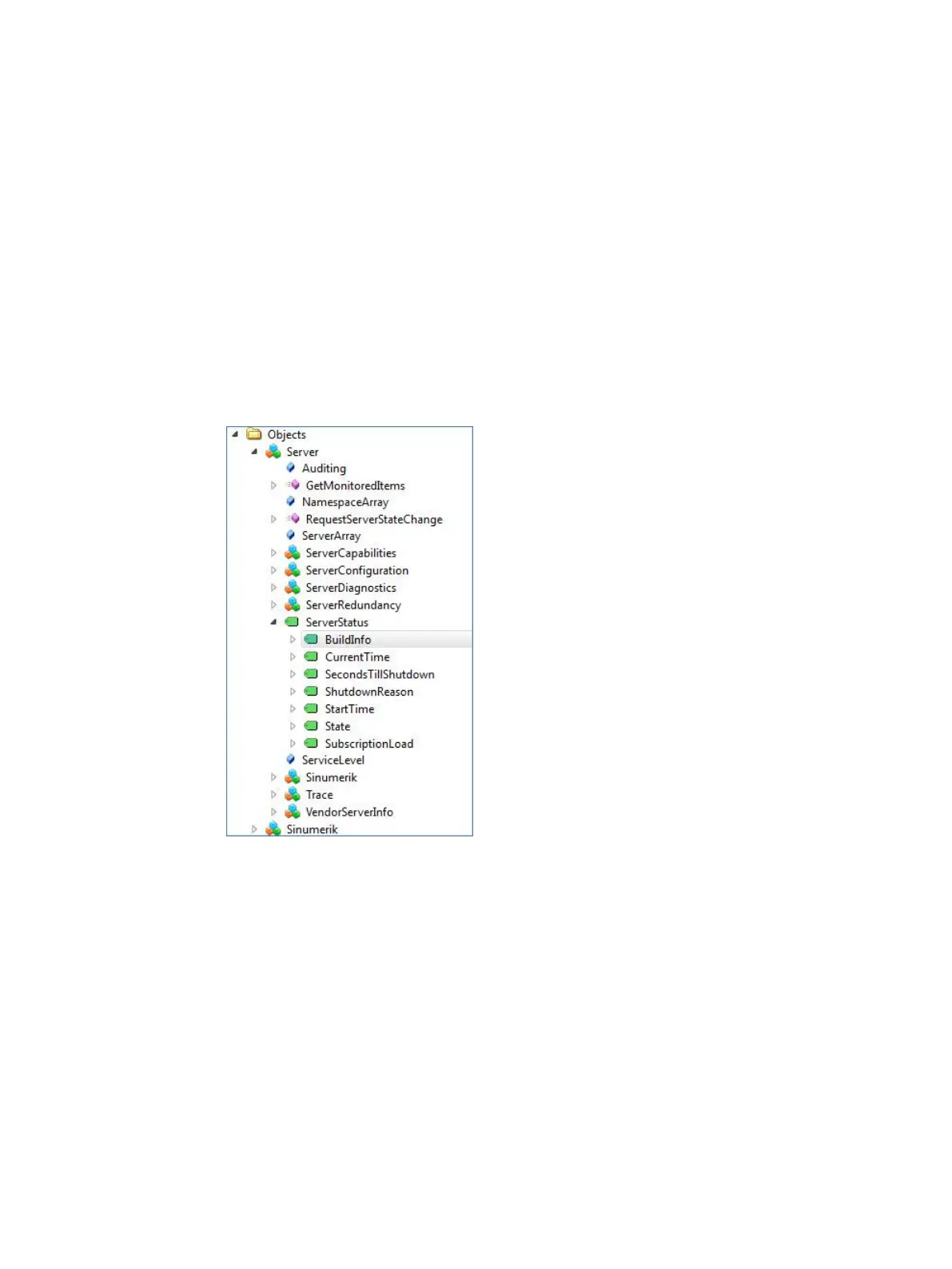

Figure 6-1
Diagnostics Information - Server Node
SINUMERIK Integrate for Engineering Access MyMachine / OPC UA
Configuration Manual, 12/2017, 6FC5397-1DP40-6BA1
57
972
974
