15.6 Selecting element from chain
If input fields in the Transformations window refer to kinematic elements, you can select the
appropriate element designation directly from the tree view of the graphic machine model and
then import it:
Procedure
You are in the "Transformations" window in the parameter view of the
selected transformation type or tool carrier.
Selecting an element designation
1. Place the cursor on the blank input field.
2. Press the "Select element" softkey.

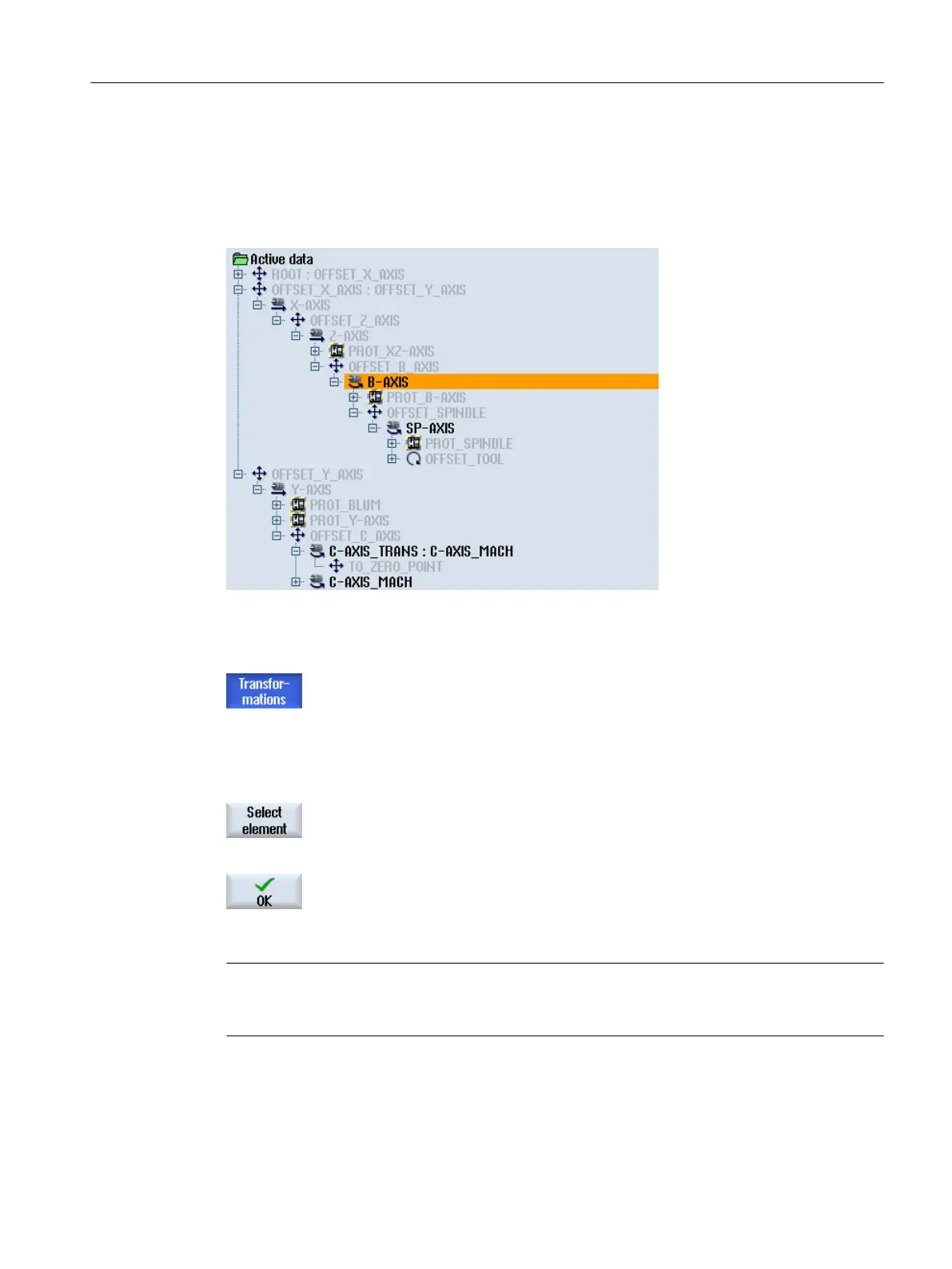

The "Select element from chain" window opens.
3. Select the required element designation in the tree view.
4. Press the "OK" softkey.
The element designation will be included in the input field.
Note
Element designations are grayed out in the tree view if they do not match the parameter
property of the input field.
Transformations
15.6 Selecting element from chain
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 337
