This is how you create a complete backup of the CompactFlash Card
Creating a complete backup
Procedure:
1.
In the main menu, select the menu item "Backup NCU Software and Data".

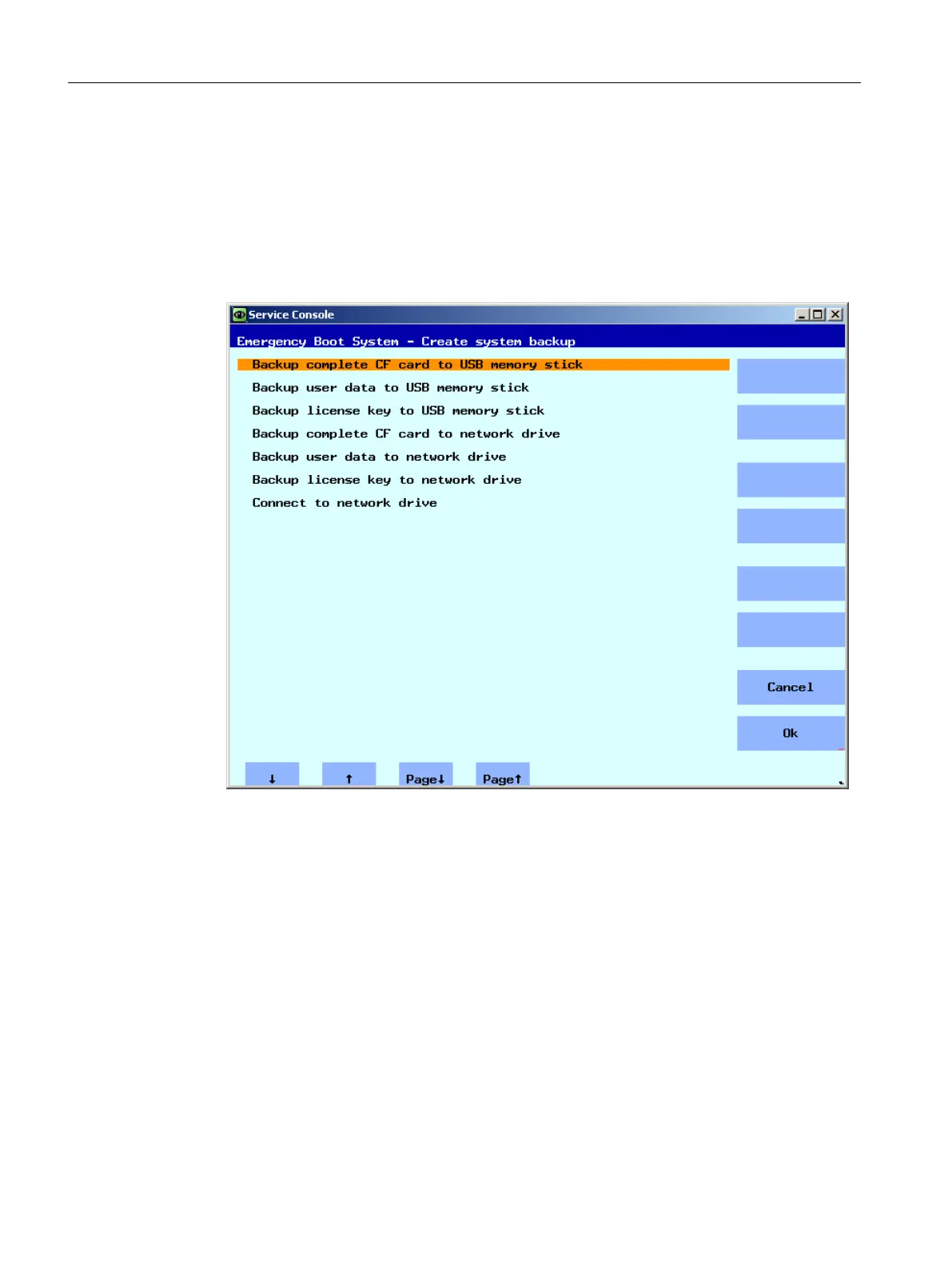

The following menu is displayed:
Figure 3-8
Backup up
2.
Select "Backup complete CF card to USB memory stick" and confirm with "OK".
Service and diagnostics
3.3 Backup data via the service menu
NCU operating system
76
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
1393
1395
