3.1.3 Diagnostics functions
Functions of the service menu
The following functions for service and diagnostics are available on the service system:

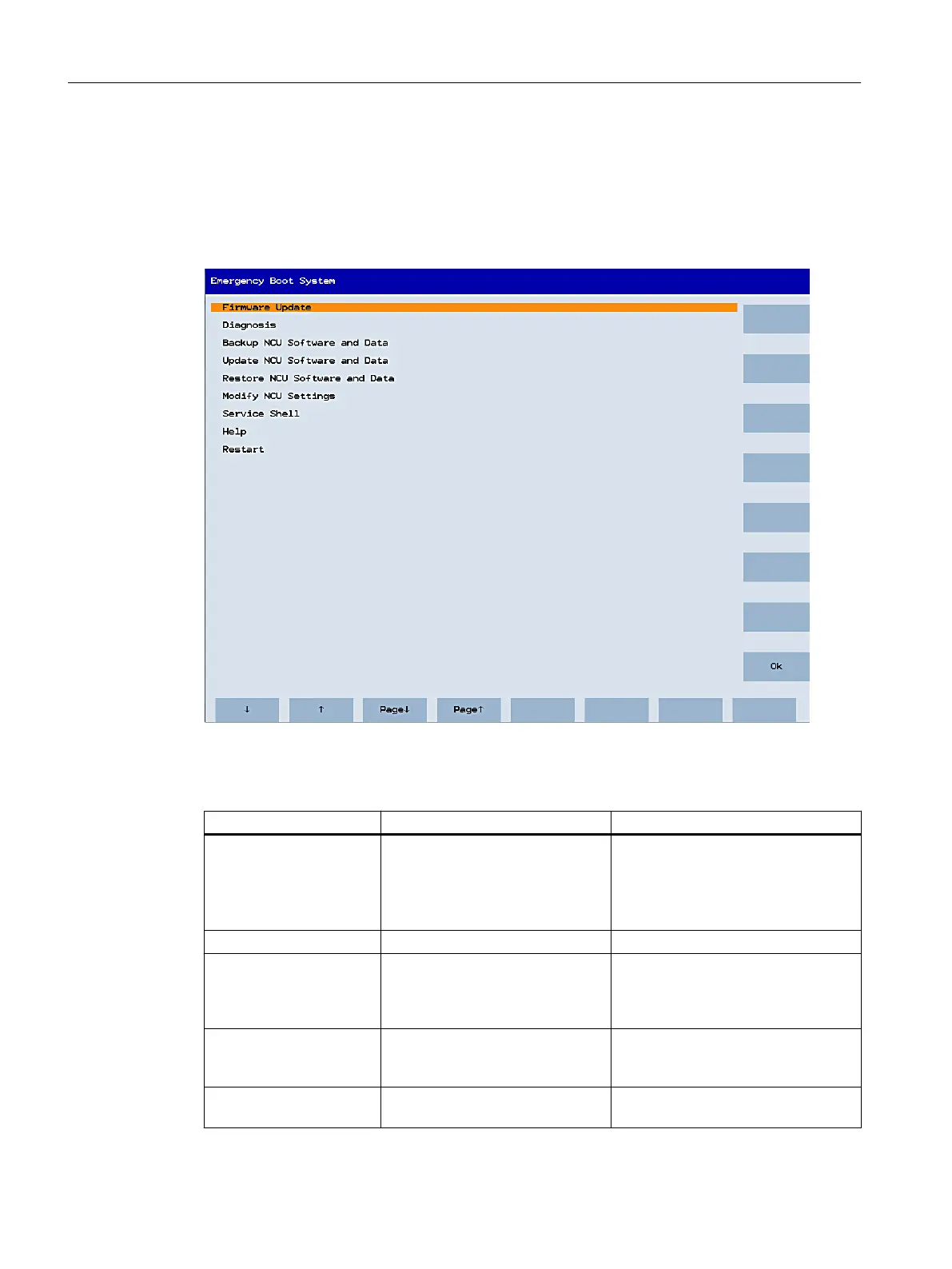

Figure 3-1 Service menu
Overview of the main menu:
Main menu Description Reference
Firmware Update Update BIOS:
● PLC BIOS
● FPGA
● CBE30 Bootloader
This is how you update the firmware
(Page 84)
VNC Viewer Starting the VNC viewer Calling the VNC Viewer (Page 94)
Diagnosis Starting a diagnostic function to
display network-connection data
and data on the system Compact‐
Flash Card.
Performing system diagnostics
(Page 89)
Backup NCU Software
and Data
Backup system and user data on
the USB FlashDrive or network
drive.
Backup data via the service menu
(Page 72)
Update NCU Software
and Data
Upgrade the system from the USB
FlashDrive or network drive.
This is how you update the software
(Page 86)
Service and diagnostics
3.1 Creating a service system
NCU operating system
66 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
