3.6.3
This is how you check the CompactFlash Card
Displaying identification data
Procedure:
1.
In the main menu, select the menu item "Diagnosis".
The following menu is displayed:

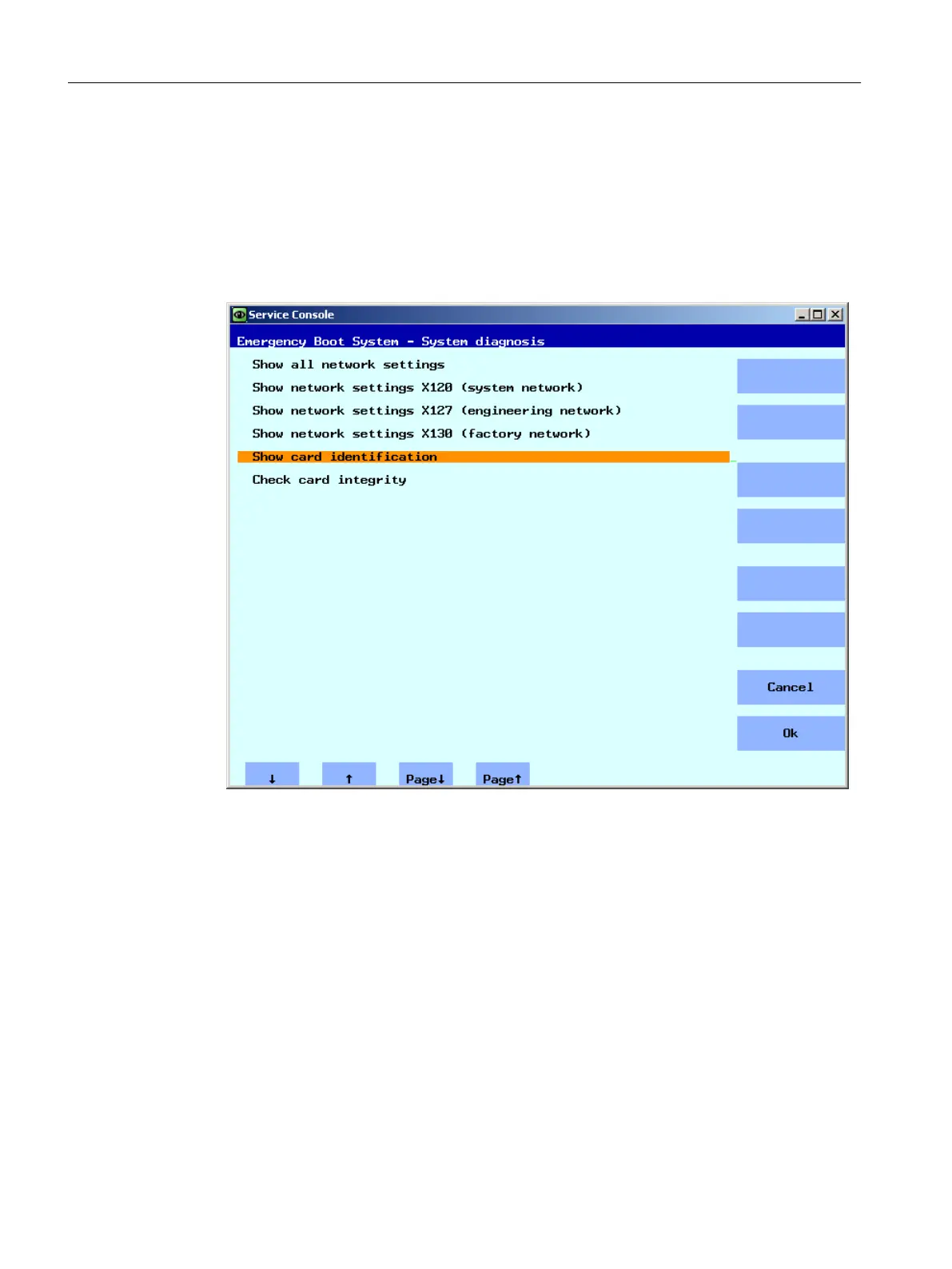

Figure 3-18
System diagnostics
2.
Select the menu item "Show card identification".
The following data for identification are output:
Service and diagnostics
3.6 System diagnostics
NCU operating system
92
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
1409
1411
