Backing up and restoring data
4.12 Operating a service PC/PC in the network
PCU-Basesoftware (IM8)
112 Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
To configure the network settings of the PG/PC for connecting a PCU in the system network,
proceed as follows:
1. Open the "network connections" window:
– To do this under Windows XP: in the "Start > Control Panel > Network and Internet
Connections" menu, choose "Network Connections."
– To do this under Windows 7: in the Control Panel in category "Network and Internet >
View network status and tasks," choose "Change adapter settings."
2. Right-click on the network adapter you want to configure, then choose "Properties" from
the shortcut menu.
This opens the "Properties of <connection>" dialog box.

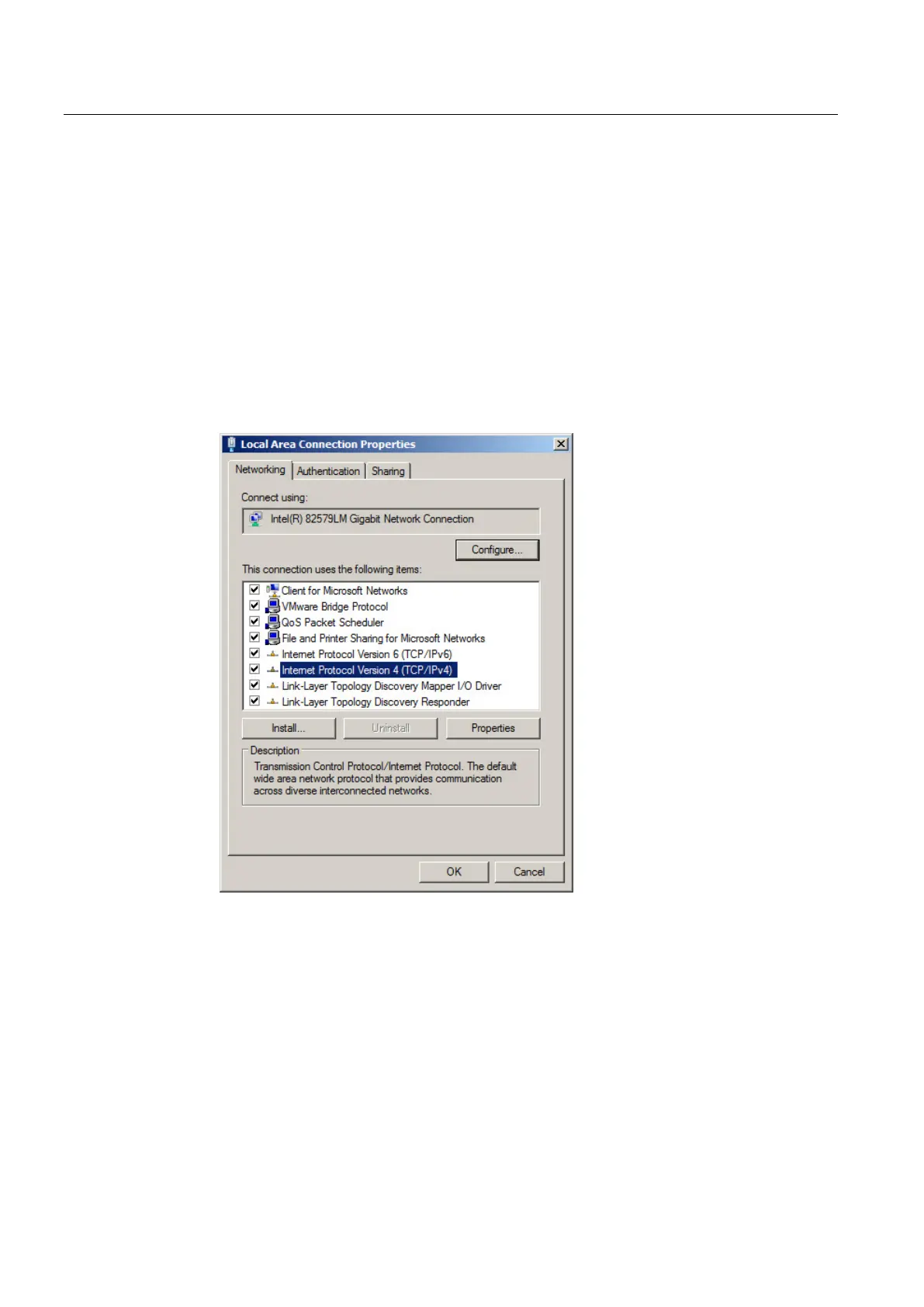

Figure 4-13 Properties of <connection>
