4.
Under step "Name, Description, and Settings," make a note of the Share path, which is a
combination
of
the
computer
name
and
the
share
name.
You
will
have
to
specify
this
name
when you create a link to the network drive on the Siemens PC system.

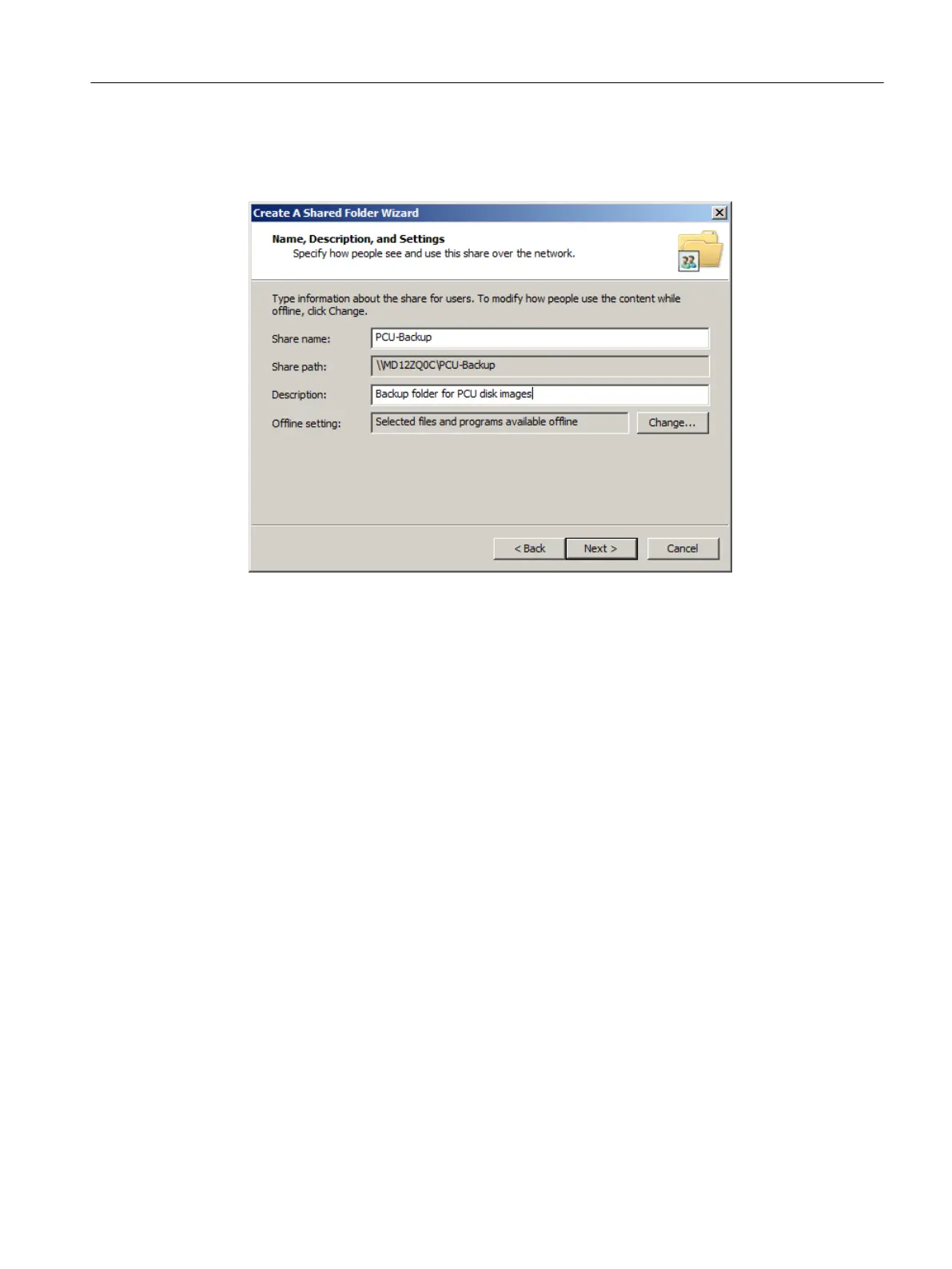

Figure 6-14
Create A Shared Folder Wizard - Name, Description, and Settings
Backing up and restoring data
6.12 Operating a service PC/PC in the network
PCU Base Software (IM10)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
149
1706
1708
