3.
Press the "Change"
softkey. The Settings dialog
will appear. Make the necessary
settings
for connection, authentication and activation.

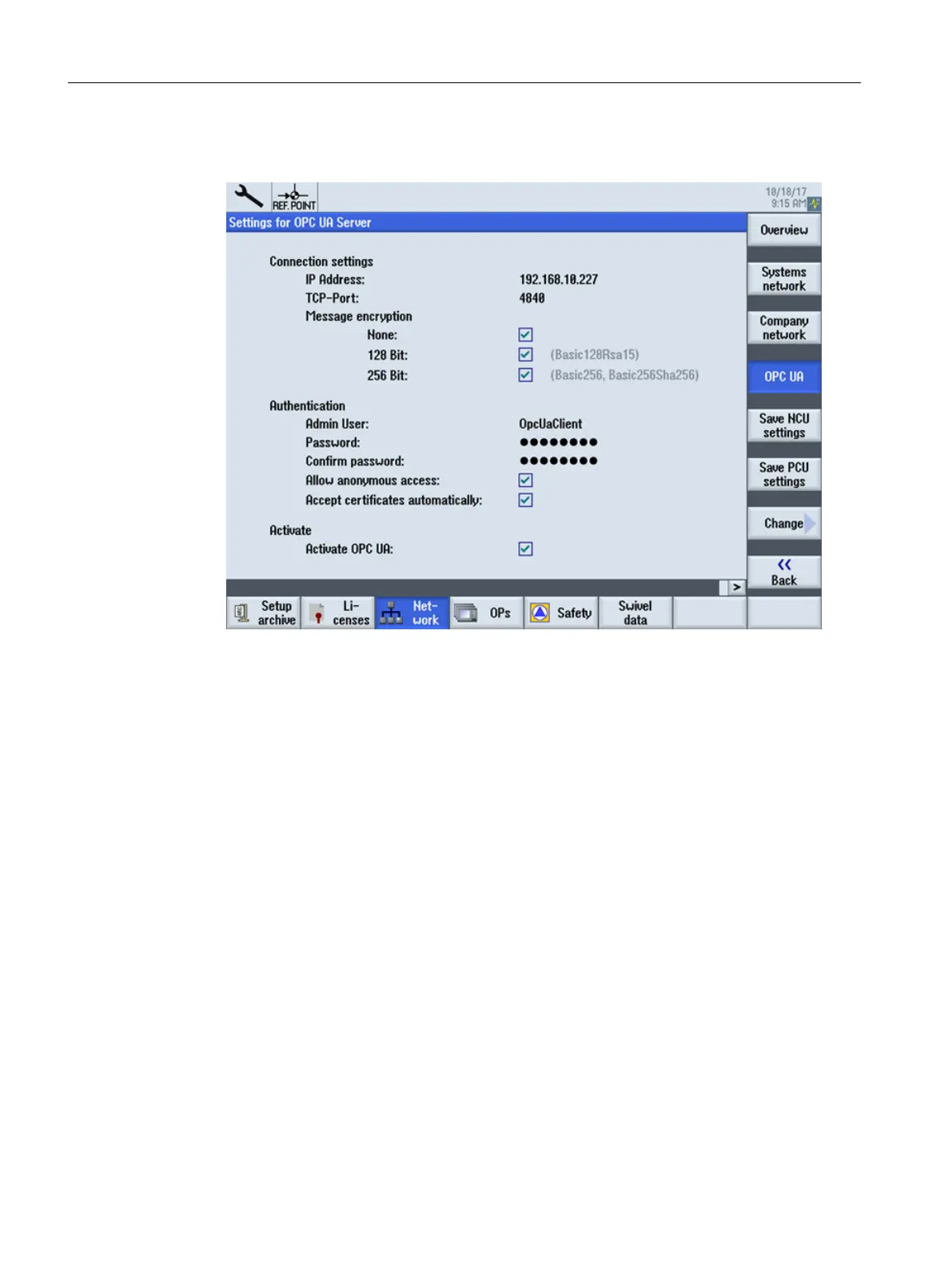

Figure 3-2
Settings of OPC UA Server (with changes)
Setting up of OPC UA server
3.3 Commissioning
SINUMERIK Integrate for Engineering Access MyMachine / OPC UA
18
Configuration Manual, 12/2017, 6FC5397-1DP40-6BA1
933
935
