Siemens SENTRON - Control Inputs of the Electronic Module

Operation
7.2 Functions of the inputs and outputs
118 Manual, 08/2017, L1V30368969104A-02
Functions of the inputs depending on the network
Monitoring of the parameters on inputs 103-106 and 203-206 depends on the network. The
table below contains a list of the functions depending on the network.
Network
Detection of the net-
work availability
Detection of whether
sources are within
defined limits:
Detection of the phase
rotation
Detection
of the neutral conduc-
tor
Single-phase network
with neutral (1PH + N)
✓ ✓
Three-phase 3-wire
network without neu-
tral (3PH)
✓ ✓ ✓
Three-phase 4-wire
network with neutral
(3PH + N)
✓ ✓ ✓ ✓
7.2.3.2
Control inputs of the electronic module

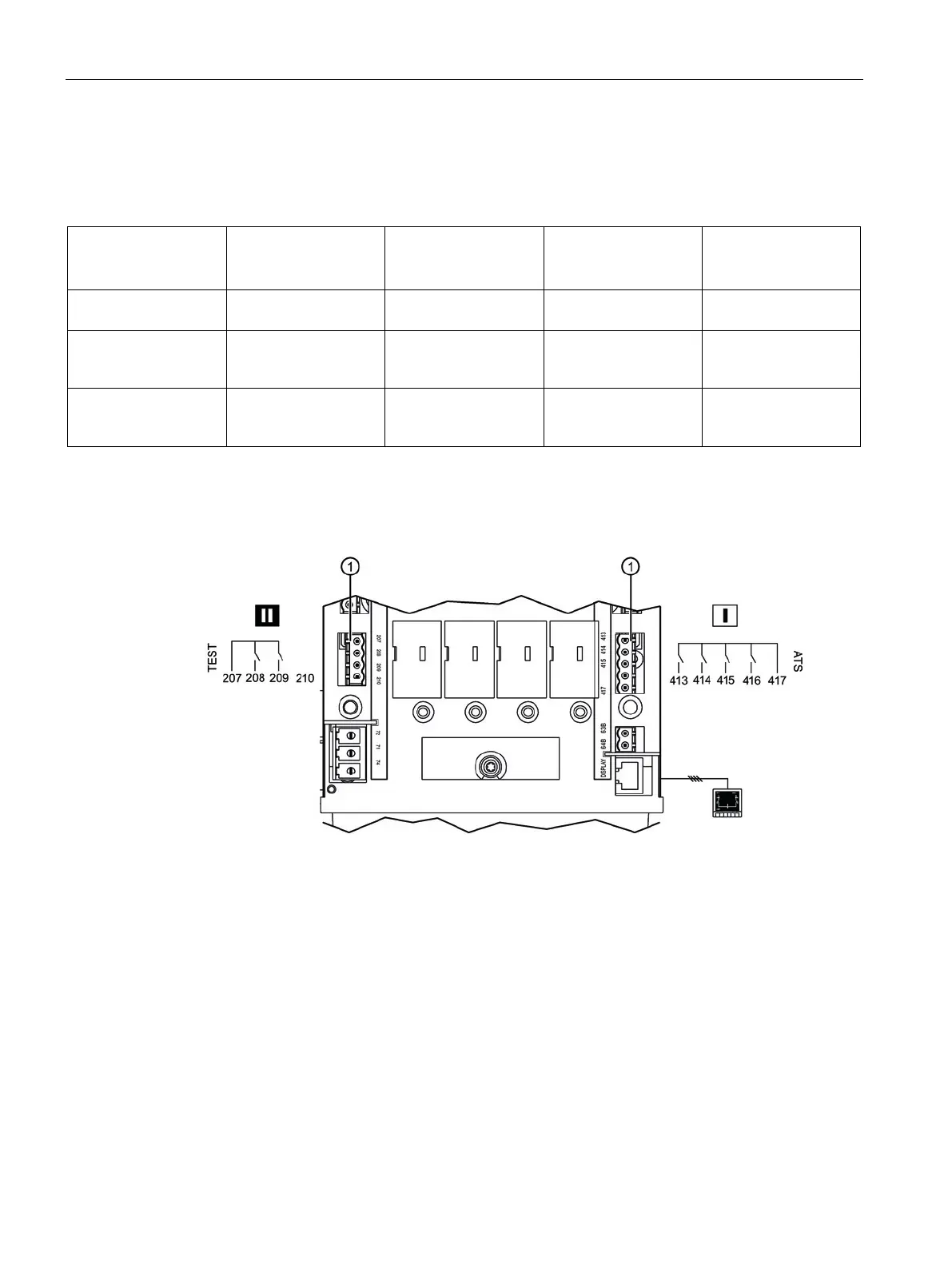

The following control inputs are located on the electronic module:
①
Control inputs of the electronic module
Figure 7-12 Control inputs of the electronic module
The functions of control inputs 413 – 417 and inputs 207-209 differ according to network
type. For network / network applications, these have other functions than for
network / generator applications.
