5.3 Dimensions of the cover frame for door cut-out
30 Manual, 08/2017, L1V30368969104A-02
5.3
Dimensions of the cover frame for door cut-out

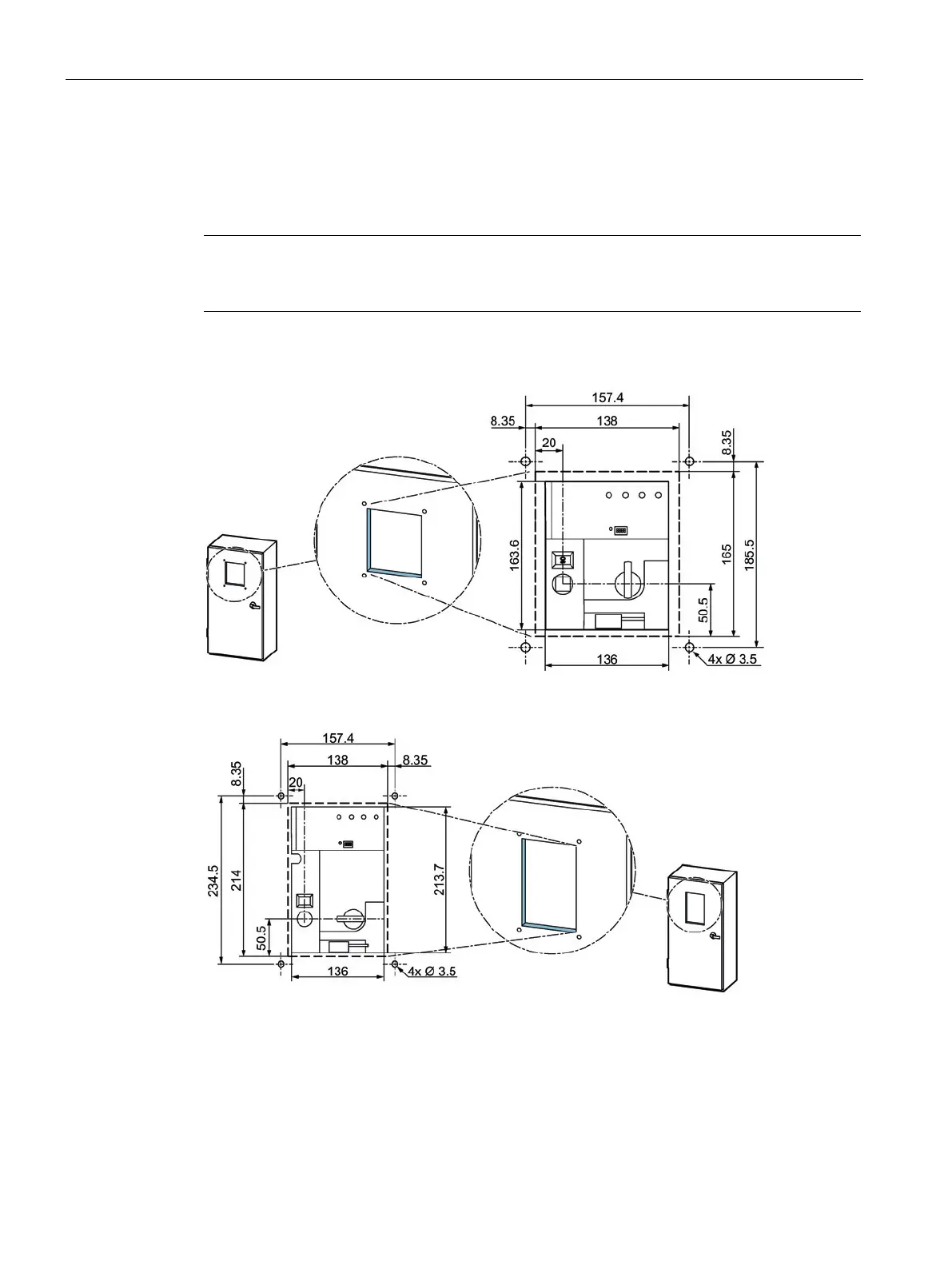

The following figures show the dimensions of the cover frame for door cut-out for the 3KC4
and 3KC8 transfer switching equipment.
Note
On the 3KC8 transfer switching equipment there is an additional electronic module that
enables source monitoring.
Current ratings 250 A to 630 A
Current ratings 800 A to 3200 A
Figure 5-3 Dimensions of the cover frame for door cutout 800 A to 3200 A
