Manual, 08/2017, L1V30368969104A-02
101
The following content is described in this chapter:
● Operating modes of the 3KC4 and 3KC8 transfer switching equipment
● Names and descriptions of the functions of the inputs and outputs
● Programming the electronic module (3KC8 transfer switching equipment only)
Operating modes of the transfer switching equipment
The performance range of the Siemens 3KC4 and 3KC8 transfer switching equipment
encompasses in principle 3 operating modes:

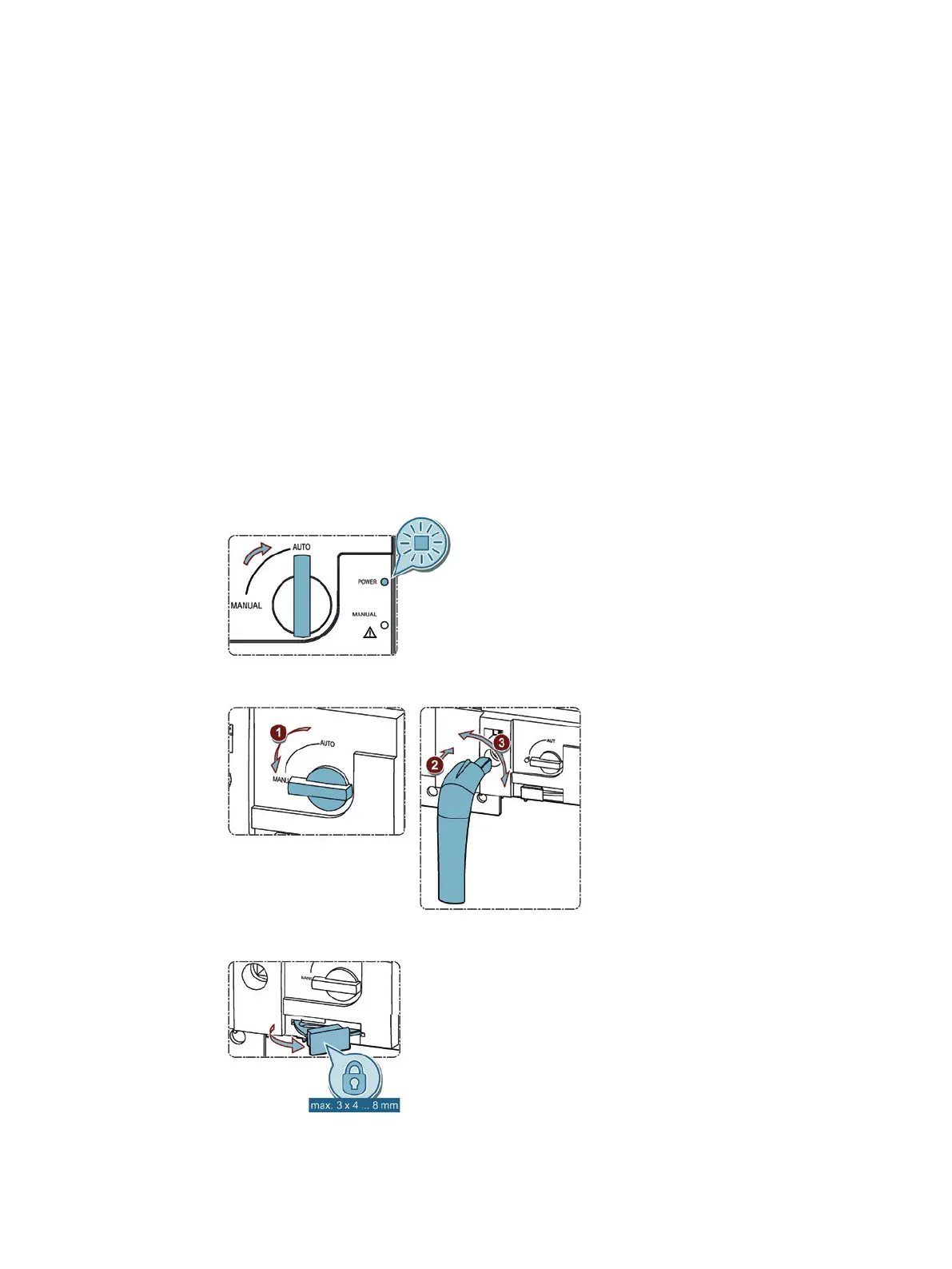

Figure 7-1 Automatic mode (3KC8) / remote mode (3KC4)
Figure 7-2 Manual operation
Figure 7-3 Padlocking mode
