Siemens SENTRON - Auxiliary Conductor Terminal 3 KC9822-, 3 KC9832- (3-pole, 3 KC8 Only)

Accessories
9.10 Auxiliary conductor terminal 3KC9822-, 3KC9832- (3-pole, 3KC8 only)
160 Manual, 08/2017, L1V30368969104A-02
9.10
Auxiliary conductor terminal 3KC9822-, 3KC9832- (3-pole, 3KC8
only)
The auxiliary conductor terminal kit for a three-phase 3-wire network without neutral consists
of 3 phases without neutral. This is used to implement the monitoring of the three phases.
The auxiliary conductor terminal kit is described in the section titled Connecting the auxiliary
conductor terminal 3KC9822-, 3KC9832- for a three-phase 3-wire network (3-pole)
(Page 95).

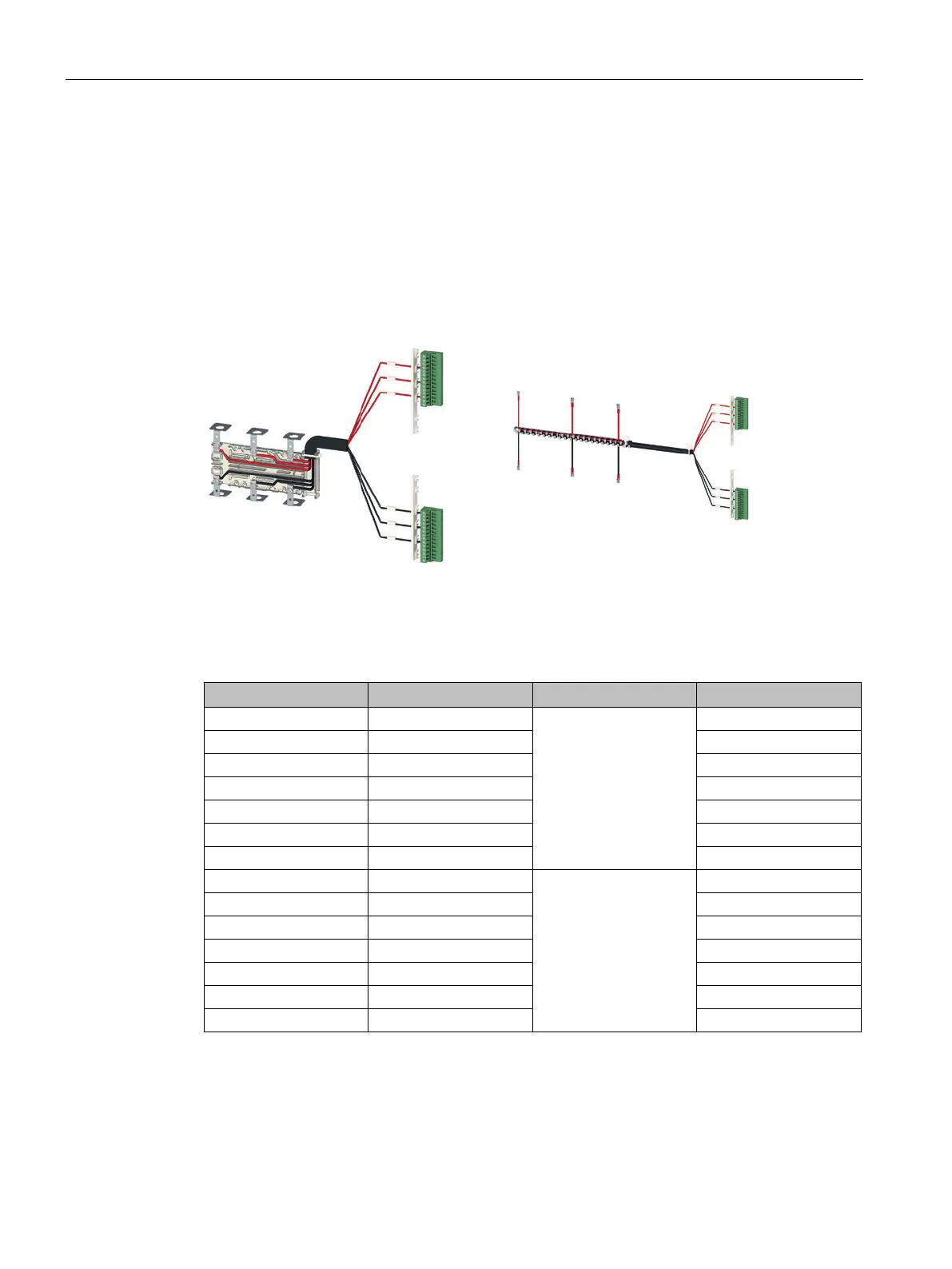

Figure 9-22 Auxiliary conductor terminal kit 3KC9822-, 3KC9832-
The table below lists the possible variants depending on the arrangement of the load (on the
top or bottom) and the current rating.
Current rating
Number of poles
Position
Product number
250 A 3 poles Bottom 3KC9822-1
400 A 3 poles 3KC9822-2
630 A 3 poles 3KC9822-3
800 A … 1000 A 3 poles 3KC9822-4
1250 A 3 poles 3KC9822-5
1600 A 3 poles 3KC9822-6
2000 A … 3200 A 3 poles 3KC9822-7
250 A 3 poles Top 3KC9832-1
400 A 3 poles 3KC9832-2
630 A 3 poles 3KC9832-3
800 A … 1000 A 3 poles 3KC9832-4
1250 A 3 poles 3KC9832-5
1600 A 3 poles 3KC9832-6
2000 A … 3200 A 3 poles 3KC9832-7
