Accessories
9.6 Copper bar connection kit
Manual, 08/2017, L1V30368969104A-02
155

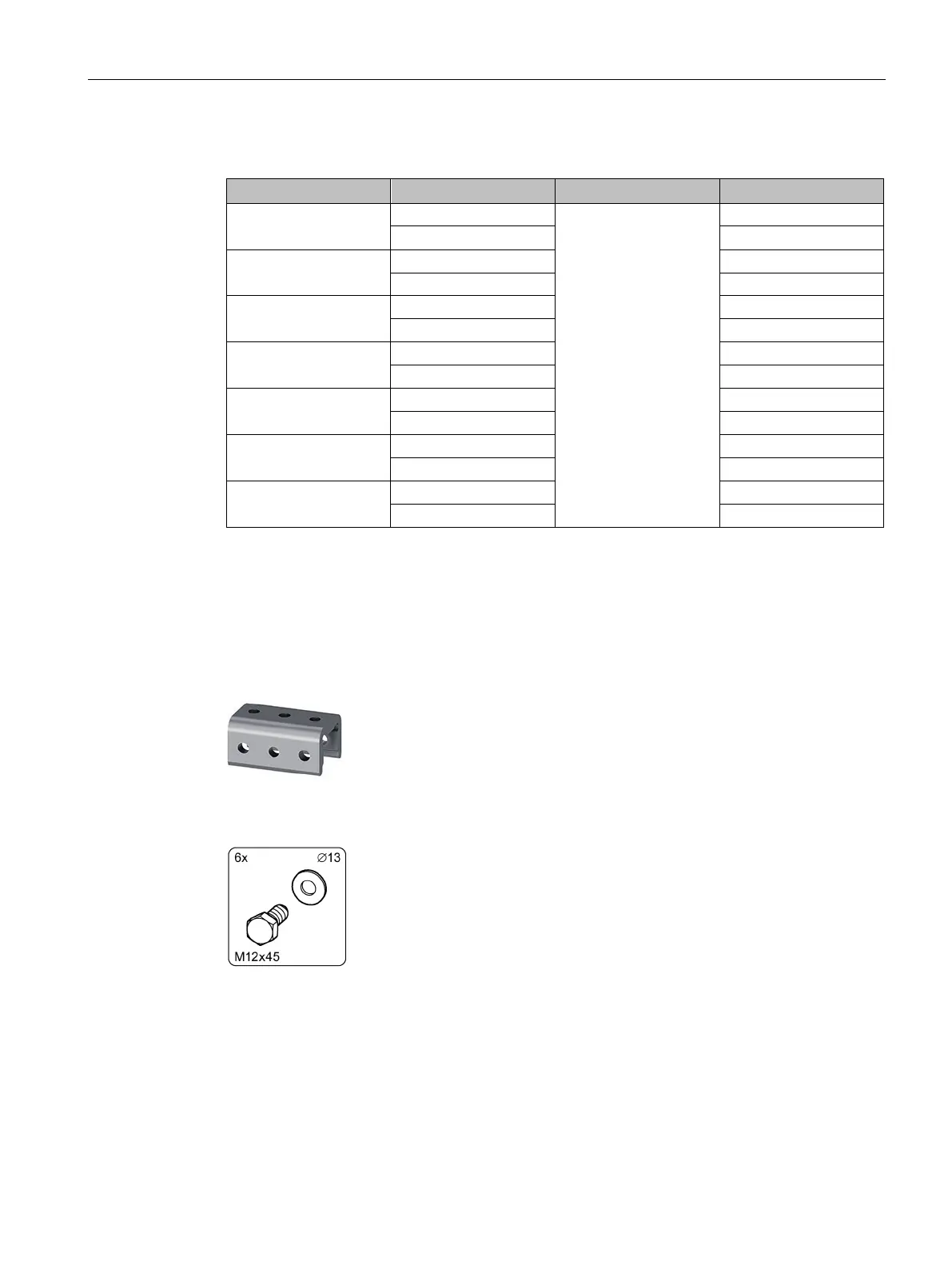

The bridging bars are listed in the table below.
250 A
3 poles Top, bottom 3KC9818-2
4 poles 3KC9818-2
400 A
3 poles 3KC9818-3
4 poles 3KC9818-3
630 A
3 poles 3KC9818-4
4 poles 3KC9818-4
800 A
3 poles 3KC9818-5
4 poles 3KC9818-5
1000 A
3 poles 3KC9818-5
4 poles 3KC9818-5
1250 A
3 poles 3KC9818-6
4 poles 3KC9818-6
1600 A
3 poles 3KC9818-7
4 poles 3KC9818-7
Copper bar connection kit
The copper bar connection kit is described in the section titled Copper bar connection kit
(Page 49). All the components in the connection kit are listed below.
Figure 9-13 Connection, part A (3KC9811-0, included, for current rating 3200 A)
Figure 9-14 Bolt set, part B, 45 mm (3KC9811-1)
