Accessories
9.6 Copper bar connection kit
156 Manual, 08/2017, L1V30368969104A-02

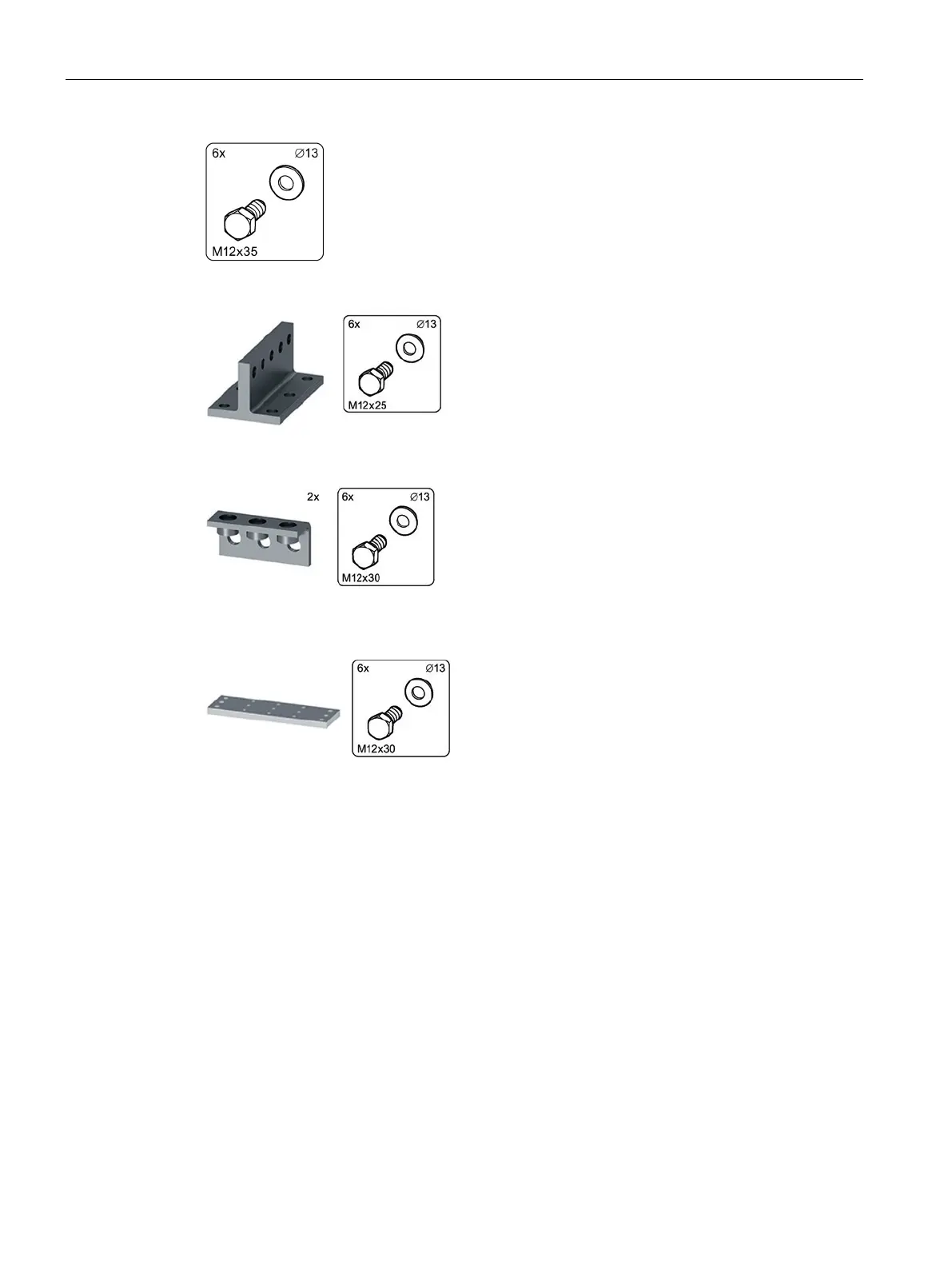

Figure 9-15 Bolt set, part B, 35 mm short length (3KC9811-2)
Figure 9-16 T piece, part C (3KC9811-3)
Figure 9-17 Bracket, part D (3KC9811-4)
Figure 9-18 Bridging bar, part E (3KC9811-8)
Different connection variants can be created from these components. These are described in
the section titled Copper bar connection kit (Page 49).
