9.3 Terminal plates
Manual, 08/2017, L1V30368969104A-02
151
Current ratings 250 A to 630 A
The following steps are necessary for mounting the terminal plates on the 3KC4 and 3KC8
transfer switching equipment.
● Main circuit is disconnected
● Transfer switching equipment is in the "Manual" position
● Accessories for the electronic module installed (3KC8 only)

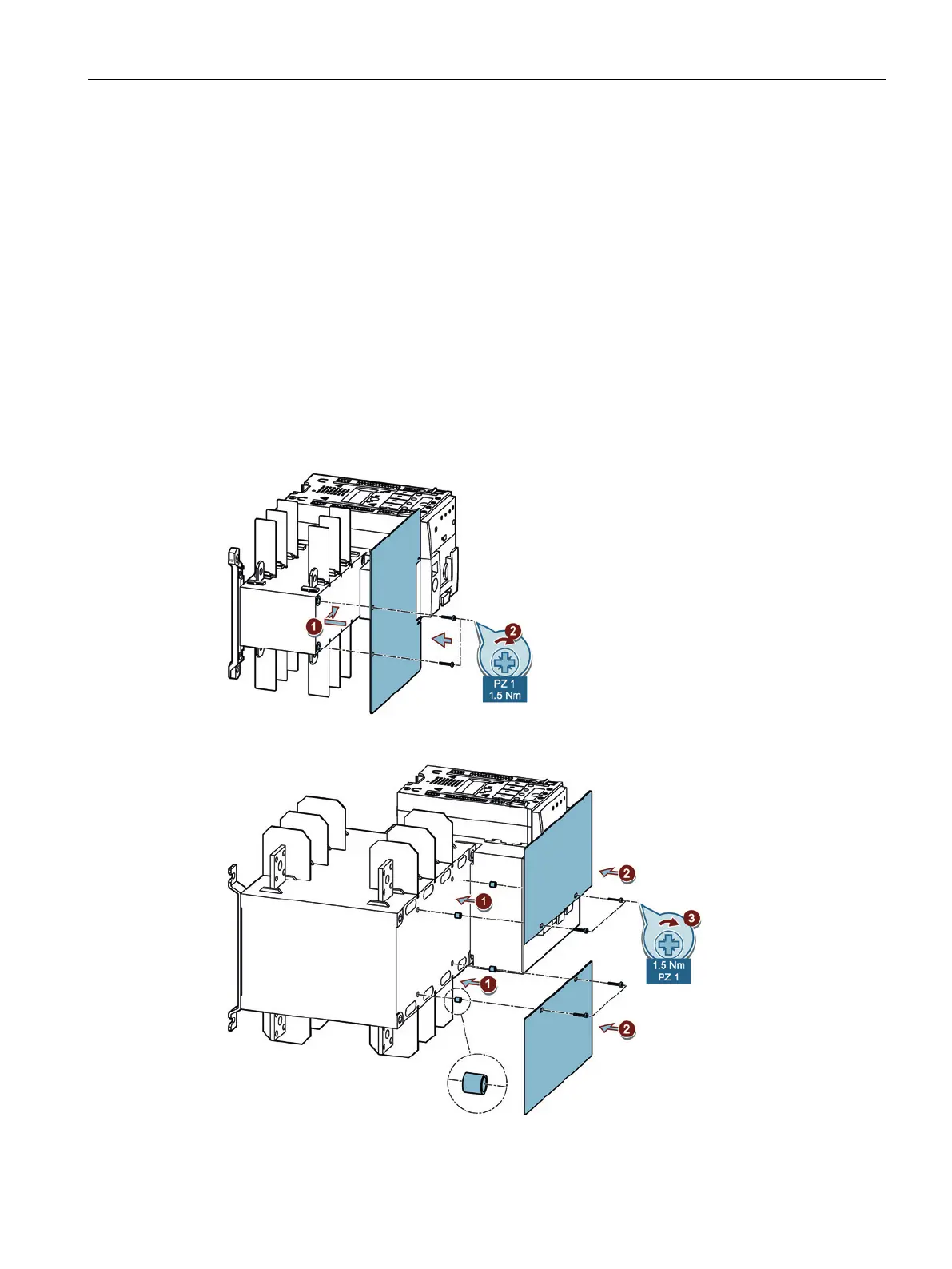

Figure 9-6 Mounting terminal plates for current ratings 250 A to 630 A
Figure 9-7 Mounting terminal plates for current ratings 800 A to 1600 A
