Accessories
9.3 Terminal plates
152 Manual, 08/2017, L1V30368969104A-02

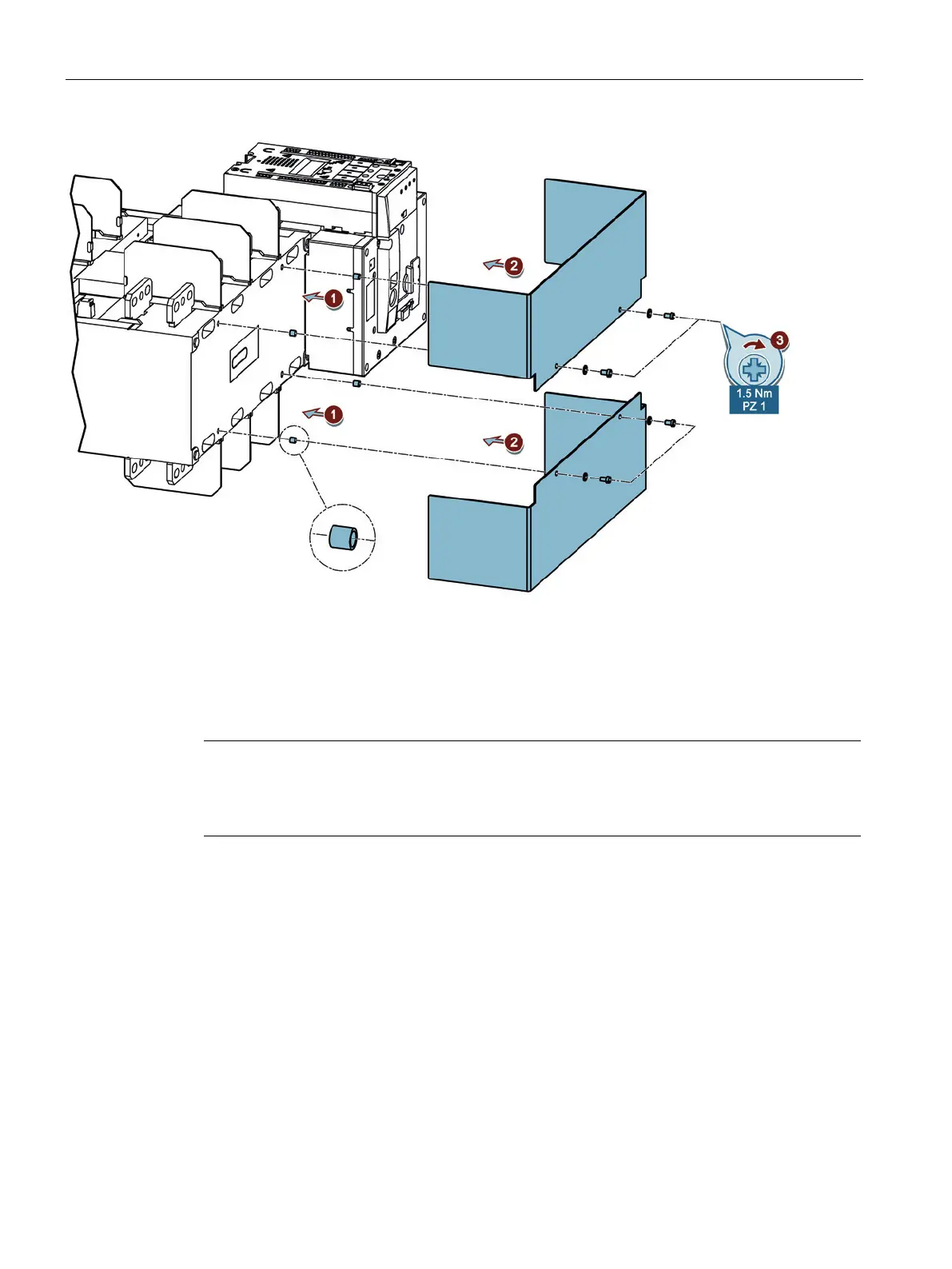

Figure 9-8 Mounting terminal plates for current ratings 2000 A to 3200 A
1. Attach the terminal plate or plates (800 A and higher) to the transfer switching equipment
in accordance with the figure.
2. Fit the terminal plate(s) on the transfer switching equipment using the supplied bolts.
If you have fitted the phase barrier accessories (you can find information on this in the
section titled Phase barriers (Page 148)), they can no longer be removed after the terminal
plate has been fitted.
