Connection
6.3 Connecting the control circuit
88 Manual, 08/2017, L1V30368969104A-02
6.3.4
Inputs and outputs of the electronic module (3KC8 only)
The following inputs and outputs are located on the top of the electronic module of the 3KC8
automatic transfer switching equipment.

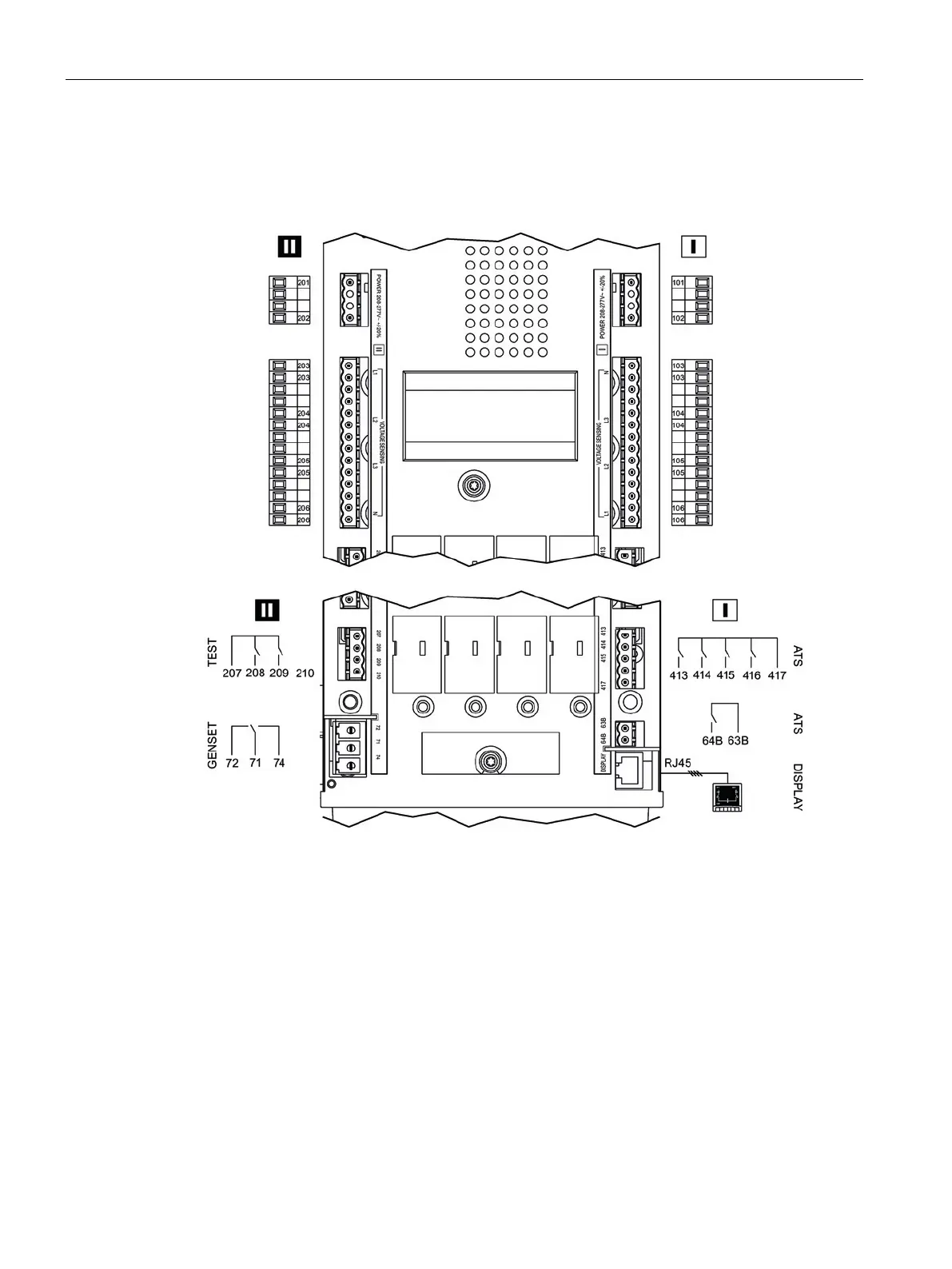

Figure 6-75 Inputs and outputs of the electronic module
The description of the inputs and outputs of the electronic module (3KC8 only) can be found
in chapter Inputs and outputs of the electronic module (3KC8 only) (Page 115).
