7. After installing the auxiliary switch, place the motor operator on the transfer switching
equipment again.

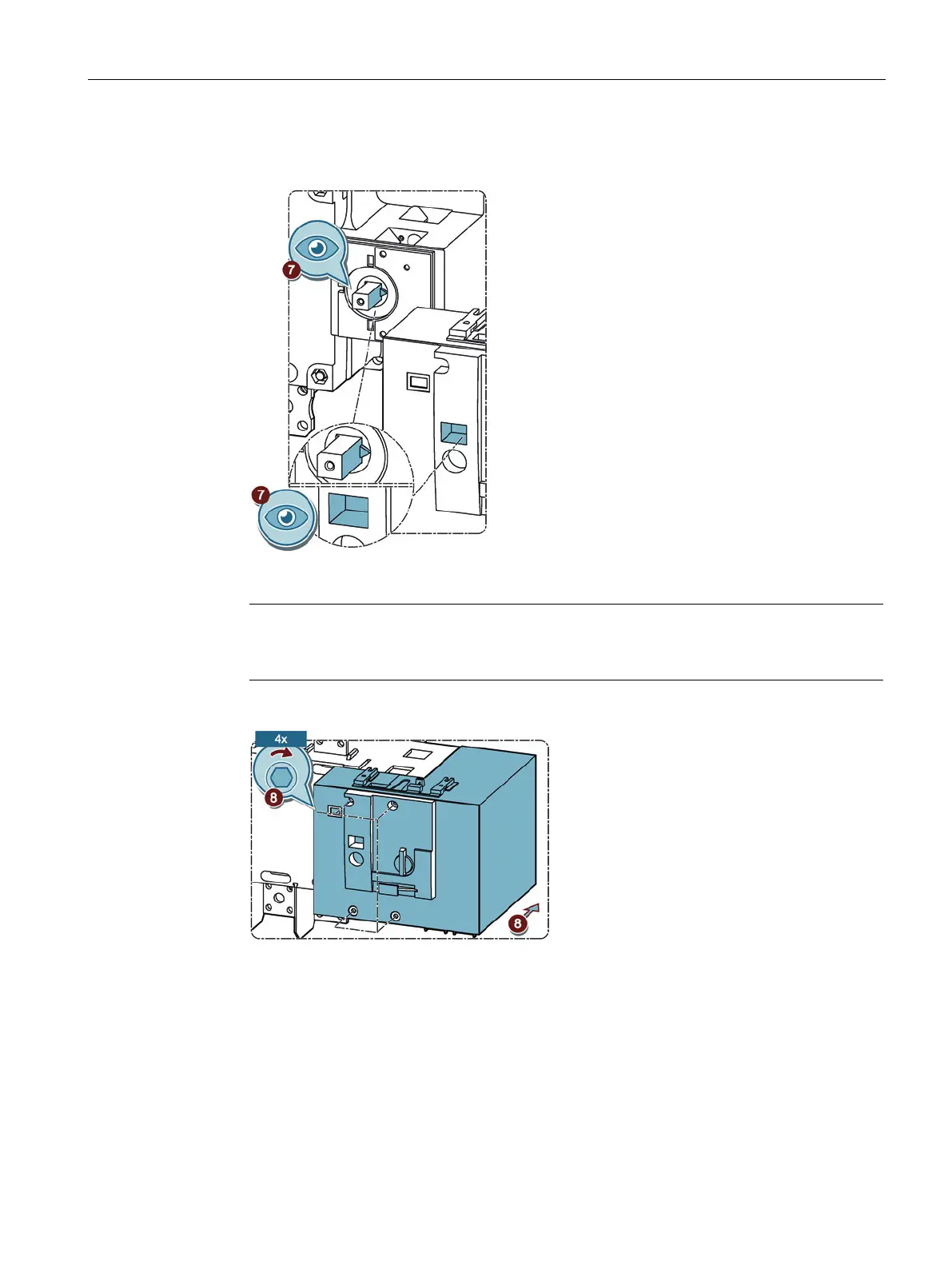

Figure 6-73 Installing the motor operator on the transfer switching equipment
Note
Make sure the switch position shown in the auxiliary switch display is identical to that of
the transfer switching equipment.
8. Install the motor operator on the transfer switching equipment with the bolts.
Figure 6-74 Installing motor operator
