Accessories
9.12 Cover frame (3KC8 only)
162 Manual, 08/2017, L1V30368969104A-02
The cover frame helps to implement a clean and safe door cut-out to enable access to the
front of the 3KC8 transfer switching equipment (electronic module and operation of the motor
operator).
You can find the dimensions of the cover frame in the section titled Dimensions of the cover
frame for door cut-out (Page 30).

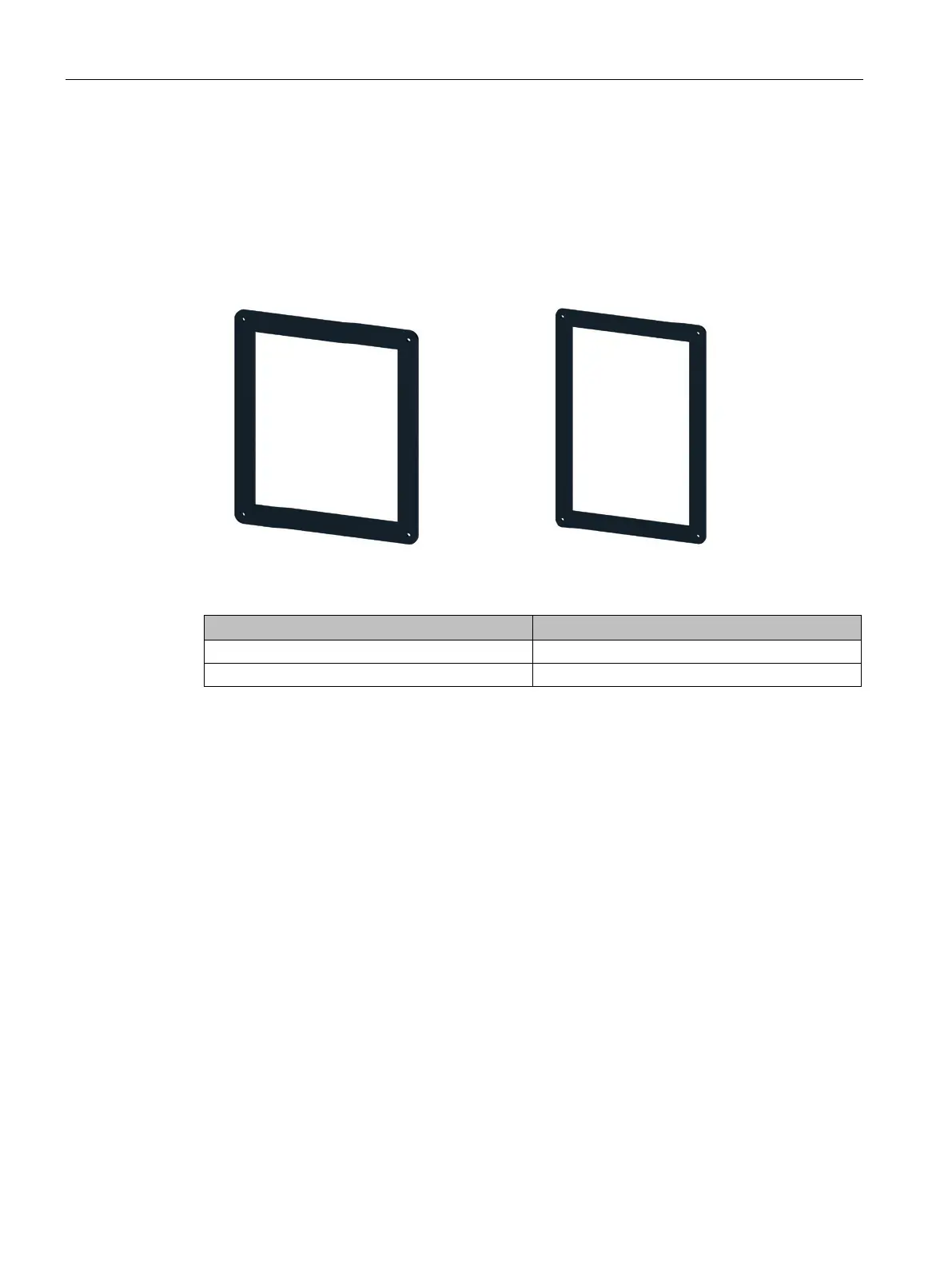

Figure 9-24 Cover frame
250 A … 630 A 3KC9820-4
800 A … 3200 A 3KC9820-5
