Accessories
9.3 Terminal plates
150 Manual, 08/2017, L1V30368969104A-02
As well as the terminal covers, terminal plates can also be used to protect the terminals
against direct touch. The terminal plates are mounted on the front side to protect the upper
and lower connecting terminals.

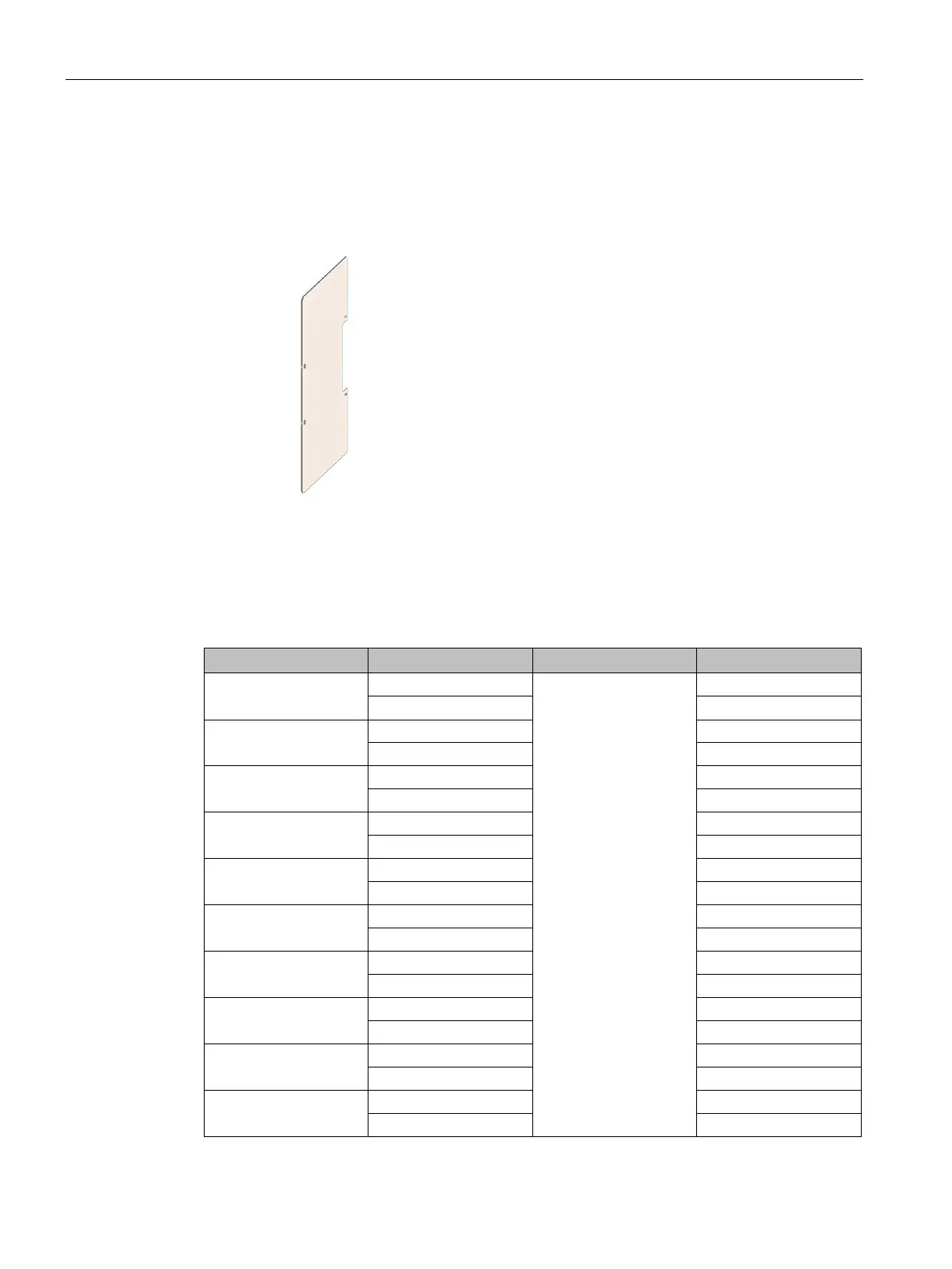

Figure 9-5 Terminal plate
For current ratings 250 A to 630 A, a terminal plate is required for the overall protection of
the top and bottom. For current ratings from 800 A, the terminal plates consist of 2 parts and
are included in the scope of supply.
The optionally available terminal plates are listed in the table below.
250 A
3 poles Top, bottom 3KC9827-1
4 poles 3KC9828-1
400 A
3 poles 3KC9827-1
4 poles 3KC9828-1
630 A
3 poles 3KC9827-2
4 poles 3KC9828-2
800 A
3 poles 3KC9827-3
4 poles 3KC9827-7
1000 A
3 poles 3KC9827-3
4 poles 3KC9827-7
1250 A
3 poles 3KC9827-3
4 poles 3KC9827-7
1600 A
3 poles 3KC9827-4
4 poles 3KC9827-8
2000 A
3 poles 3KC9827-5
4 poles 3KC9828-5
2500 A
3 poles 3KC9827-5
4 poles 3KC9828-5
3200 A
3 poles 3KC9827-5
4 poles 3KC9828-5
