7.4 Automatic mode - programming of the electronic module (3KC8 only)
Manual, 08/2017, L1V30368969104A-02
137
7.4.4
Step 4: Saving the configuration
1. Press the "OK-Prog" button ① for approximately 60 ms to save the configured
parameters.
①
"OK-Prog" pushbutton
②
"Ready" LED

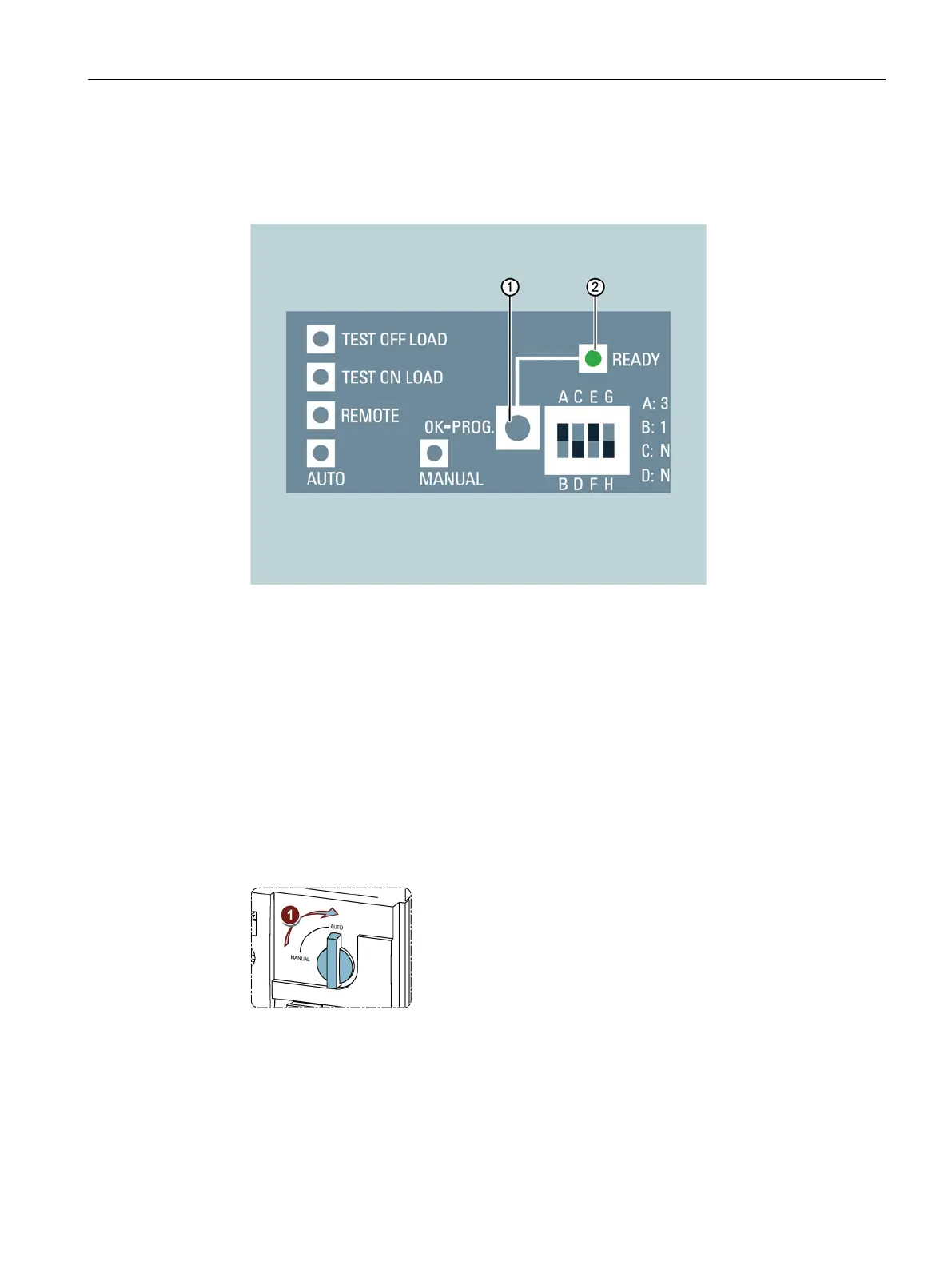

Figure 7-21 Saving the configuration
The "Ready" LED ② stops flashing and shows a continuous green light when the
parameters have been successfully saved.
7.4.5
Step 5: Switching the 3KC8 transfer switching equipment to automatic mode
After programming steps 1 to 4 have been successfully carried out, the 3KC8 transfer
switching equipment can be switched to automatic mode.
1. Turn the switch from the "Manual" position to the "Auto" position.
Figure 7-22 Turning the switch to the "Auto" position
When the product has been successfully connected and programmed, the "Power" and
"Ready" LEDs and the two "Auto" LEDs show a continuous green light.
