Connection
6.3 Connecting the control circuit
Manual, 08/2017, L1V30368969104A-02
81
6.3.3
Auxiliary switch of the transfer switching equipment
As well as the named outputs, the transfer switching equipment of sizes 2000 A to 3200 A
contain further outputs of already installed auxiliary switches that indicate switch positions I
and II.

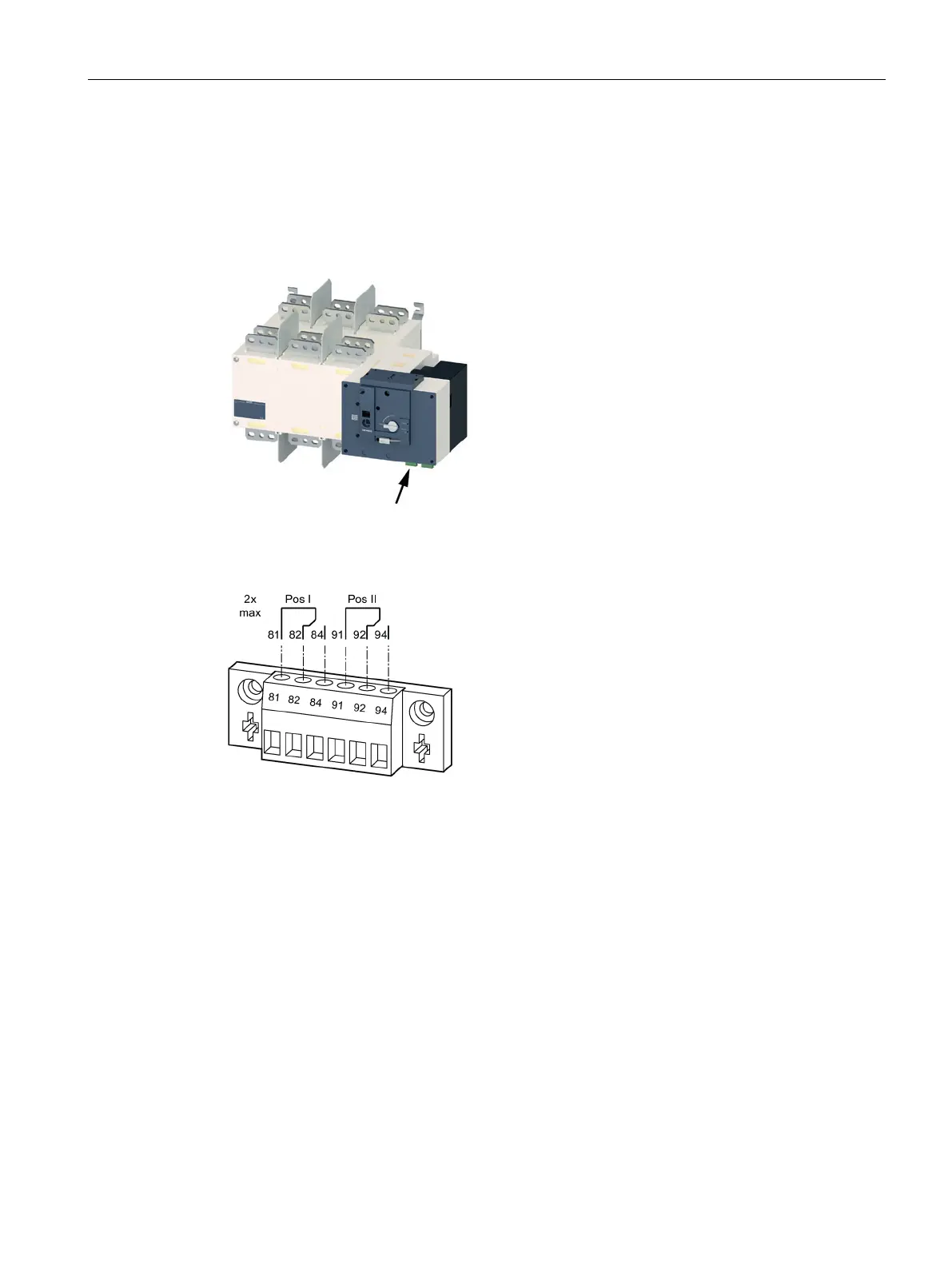

Figure 6-62 Auxiliary switches, current ratings 2000 A to 3200 A
The auxiliary switch has the following outputs:
Figure 6-63 Outputs of the auxiliary switch
The outputs have the same PIN designation twice.
If auxiliary switches in addition to the above listed outputs are required for current ratings
250 A to 1600 A, you can optionally install up to 2 auxiliary switches.
