9.16 Sealable cover (3KC8 only)
168 Manual, 08/2017, L1V30368969104A-02
Sealable cover (3KC8 only)
The sealable cover for the electronic module of the 3KC8 transfer switching equipment
prevents unauthorized access to the electronic module.
The sealing ribbons and the bolt set are included in the delivery content.

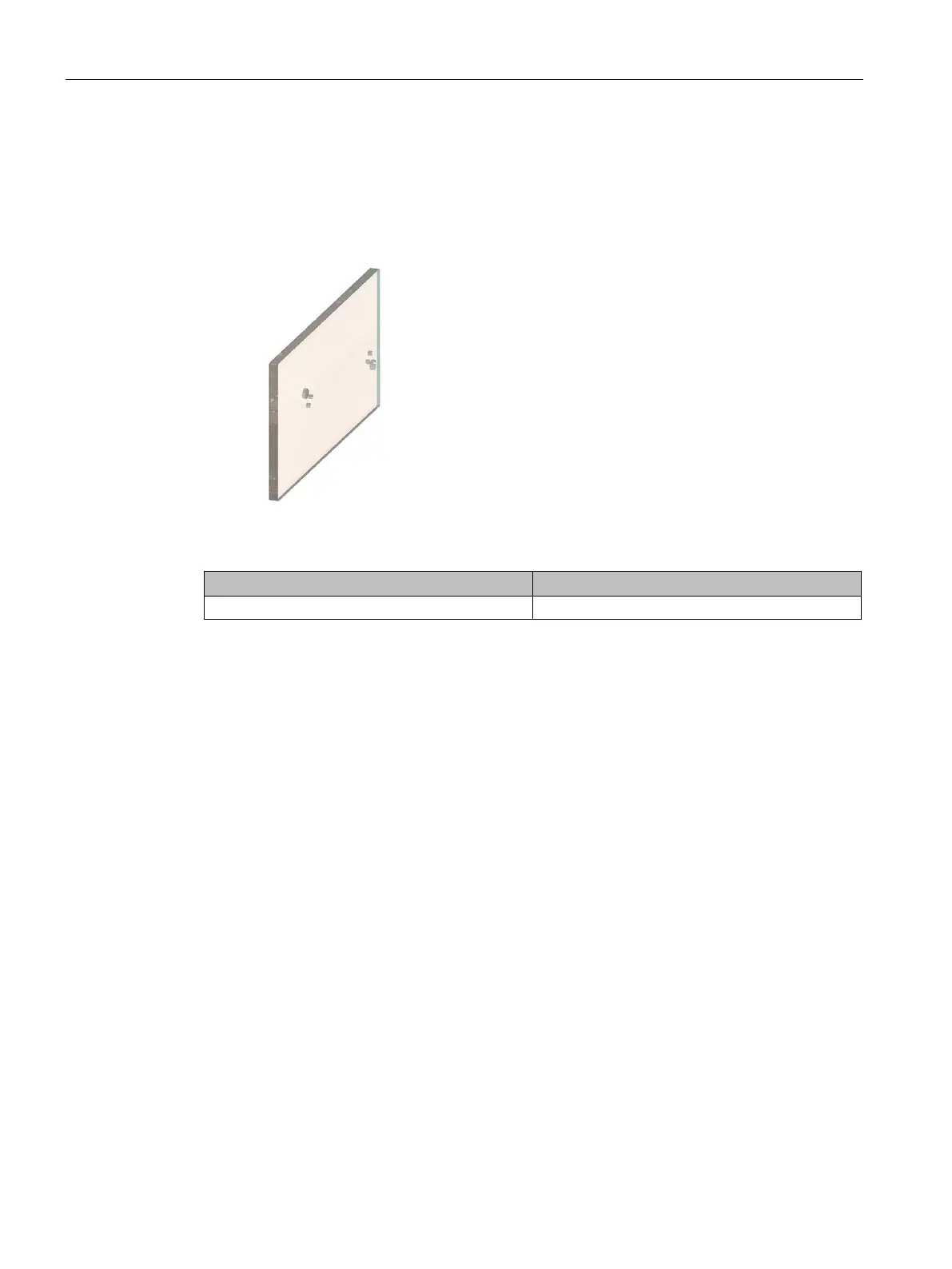

Figure 9-33 Sealable cover
250 A … 3200 A 3KC9821-0
Mounting the sealable cover
Requirement
● The electronic module of the transfer switching equipment is already programmed.
1. Press the threaded sockets into their intended positions.
2. Remove the sealable cover's protective film and mount the two sealing ribbons as shown
in the diagram.
3. Mount the sealable cover onto the electronic module.
4. Tighten the sealable cover with the bolt set provided and remember to use the washers.
5. Close the sealing ribbons using pliers.
