Product information

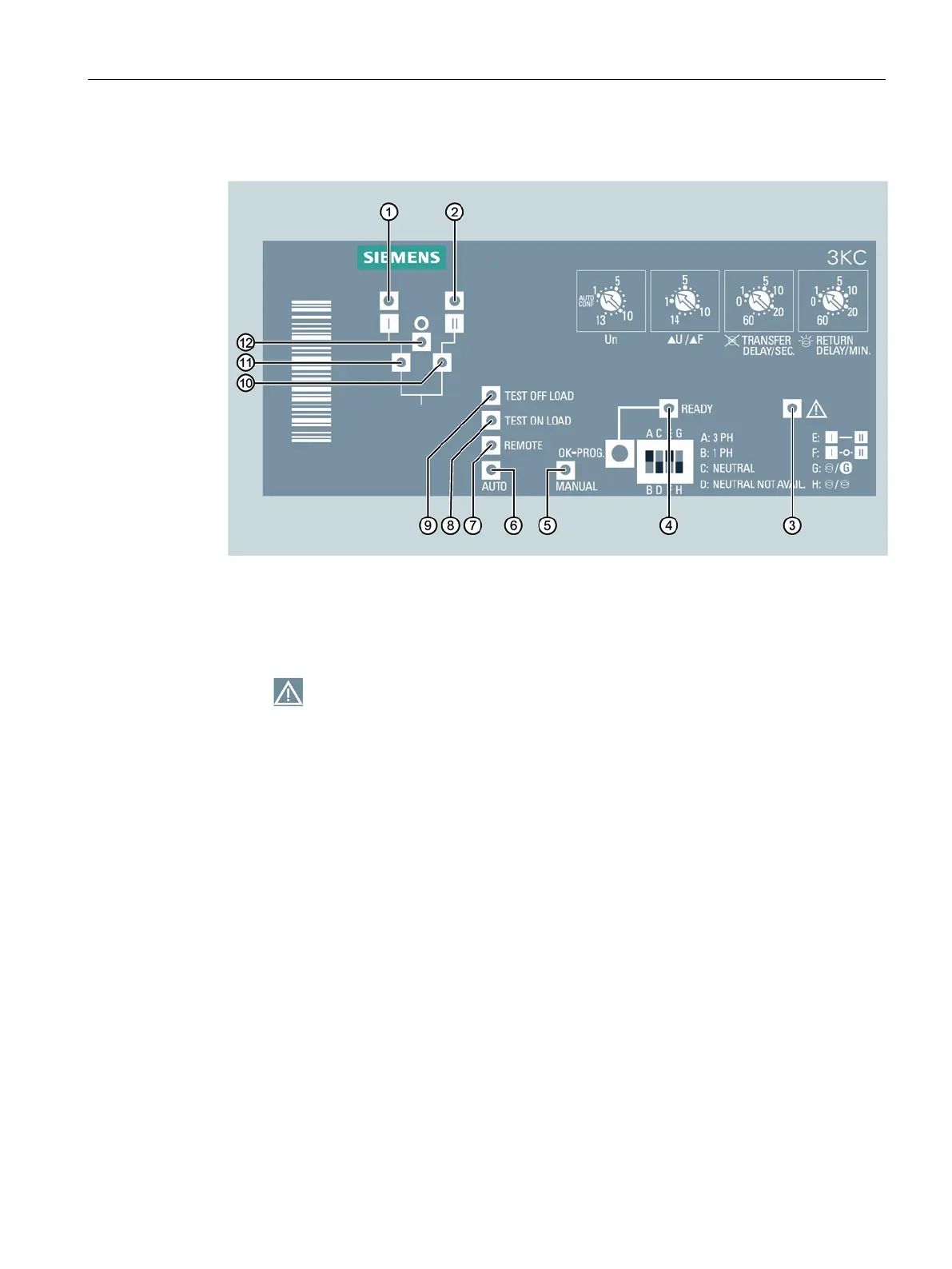

3.1 Product description
Manual, 08/2017, L1V30368969104A-02
17
I Availability
source I
Shows a continuous green light if source I is available
and is within the accepted tolerance.
II Availability
source II
Shows a continuous green light if source II is available
and is within the accepted tolerance.
Fault indicator
• Flashes red if there is an external fault (e.g. incorrect
position of the neutral conductor).
• Shows a continuous red light if there is an internal
fault of the electronic module.
READY "Ready" mode Indicates the status of the transfer switching equipment:
• Shows a continuous green light if the transfer switch-
ing equipment is in "Auto" mode and is ready for
source transfer.
• Flashes green if defaults haven not been saved or a
new change has been made.
MANUAL "Manual" mode Shows a continuous yellow light if the transfer switching
equipment is in "Manual" mode.
AUTO "Auto" mode Indicates the activity of "Auto" mode:
• Shows a continuous green light if the transfer switch-
ing equipment is in "Auto" mode and no timer is ac-
tive.
•
Flashes green if the transfer switching equipment is in
"Auto" mode and the timer is active.
REMOTE "Remote" mode Shows a continuous yellow light if the transfer switching
equipment is in remote mode (controlled via inputs).
TEST
ON LOAD
"Test on load"
mode
Shows a continuous yellow light if the transfer switching
equipment is in "Test on load" mode.
