B.1 Electrostatic sensitive devices (ESD)
222 Manual, 08/2017, L1V30368969104A-02

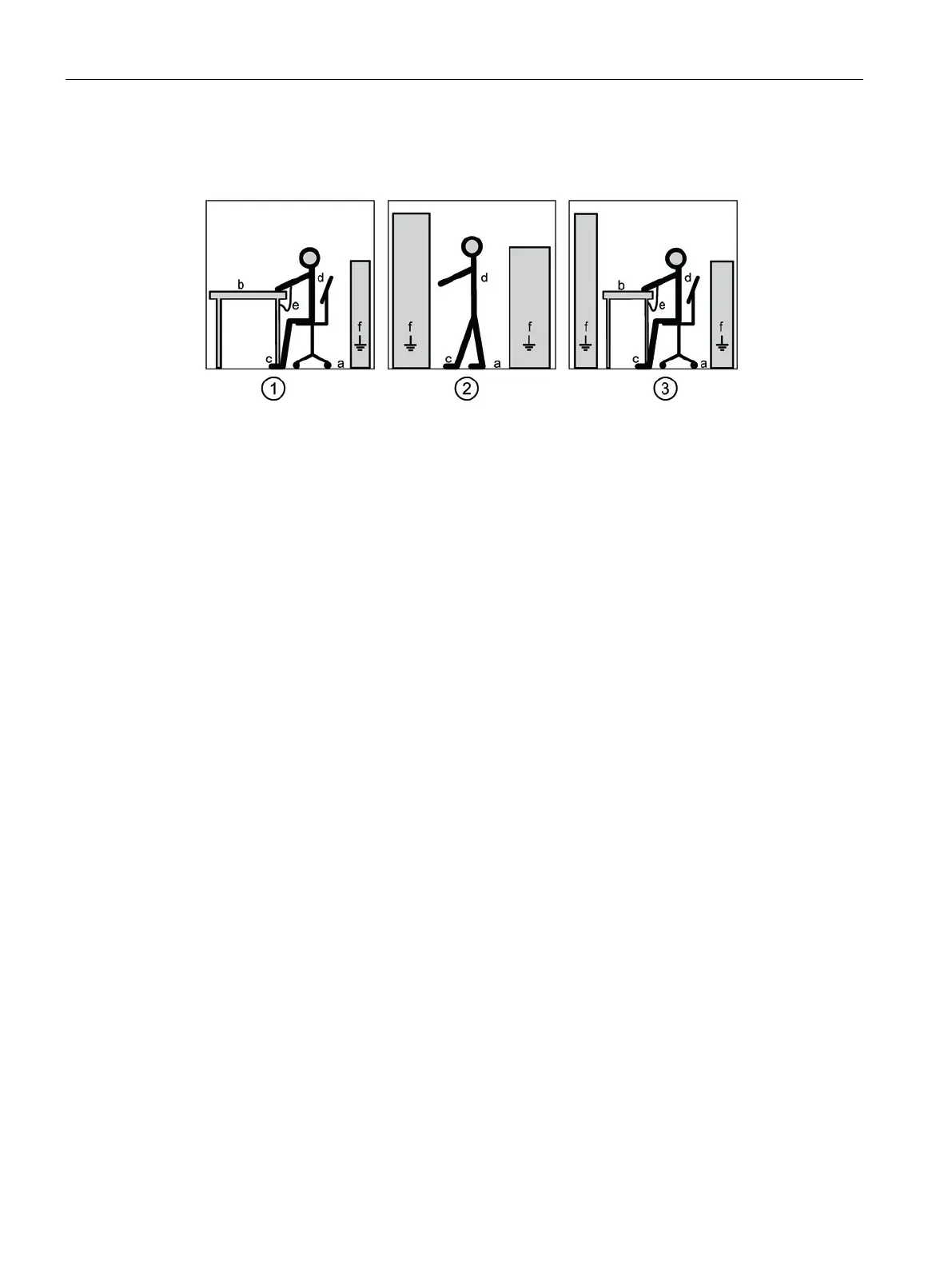

The diagrams below illustrate the required ESD protective measures for electrostatic
sensitive devices.
(1)
ESD seat
(2) ESD standing position
(3) ESD seat and ESD standing position
Protective measures
a Conductive floor
b ESD table
c
ESD footwear
d ESD smock
e ESD bracelet
f
Cubicle ground connection
Figure B-1 ESD work center
