Mounting
5.2 Installing the 3KC4 and 3KC8 transfer switching equipment
28 Manual, 08/2017, L1V30368969104A-02
Installing the current ratings 250 A to 630 A

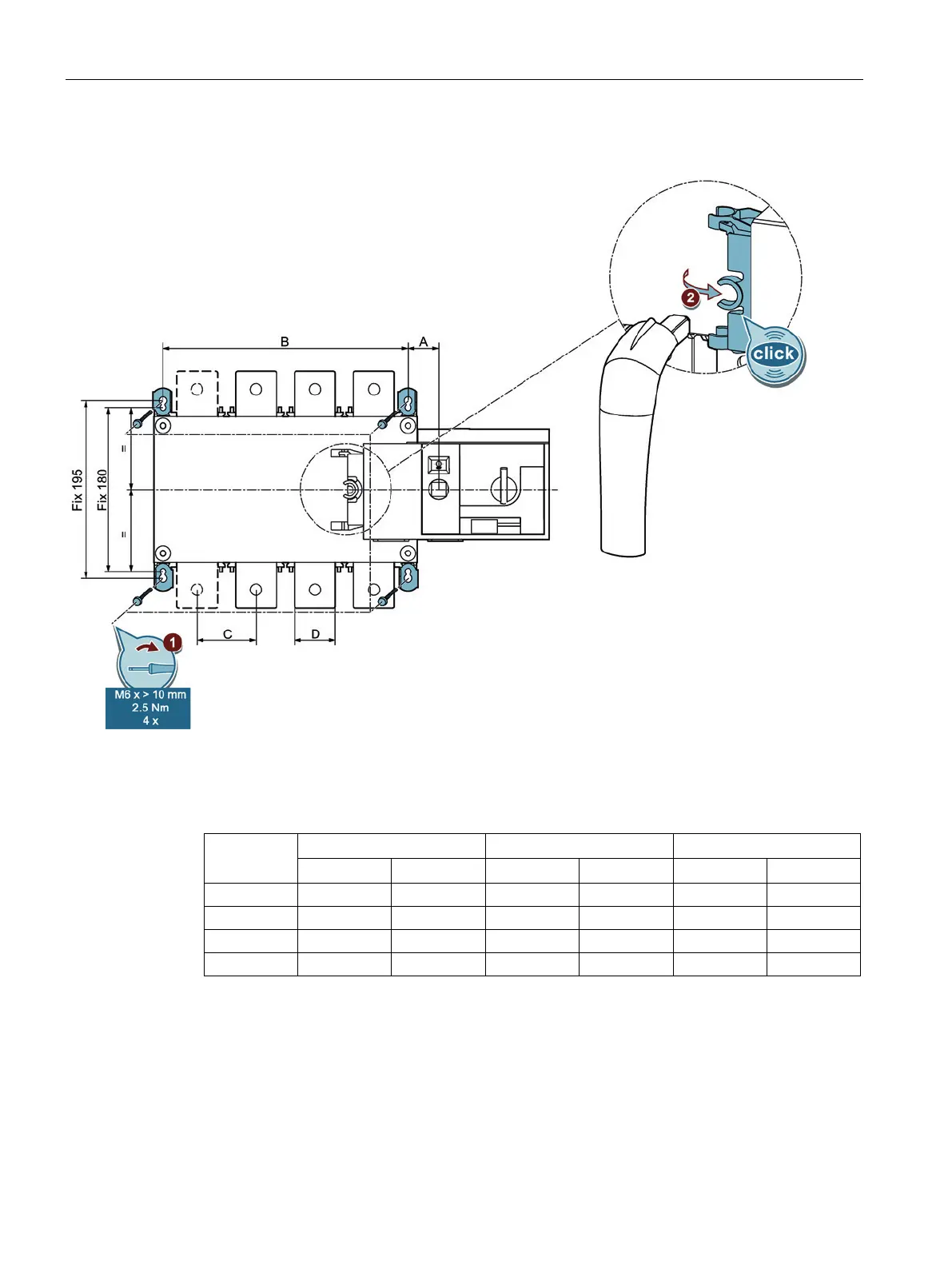

Figure 5-1 Installing the current ratings 250 A to 630 A
The dimensions vary according to the current rating and the number of poles. They can be
found in the table below.
A 35 35 35 35 34 34
B 160 210 160 210 210 270
C 50 50 50 50 65 65
D 25 25 35 35 45 45
Proceed as follows to install the current ratings 250 A to 630 A:
1. Mount the transfer switching equipment with four bolts in the desired position as shown in
the figure (see also the section titled Mounting position (Page 27)).
2. Fasten the holder for the handle on the transfer switching equipment, and insert the
handle into the holder.
The handle and its holder are included in the scope of supply. The bolts are not included with
the 3KC automatic transfer equipment.
