Connection
6.2 Connecting the main circuit
Manual, 08/2017, L1V30368969104A-02
51
Connection options
The following connections are possible with the copper bar connection kit:
Version
Position of the connection
Current rating

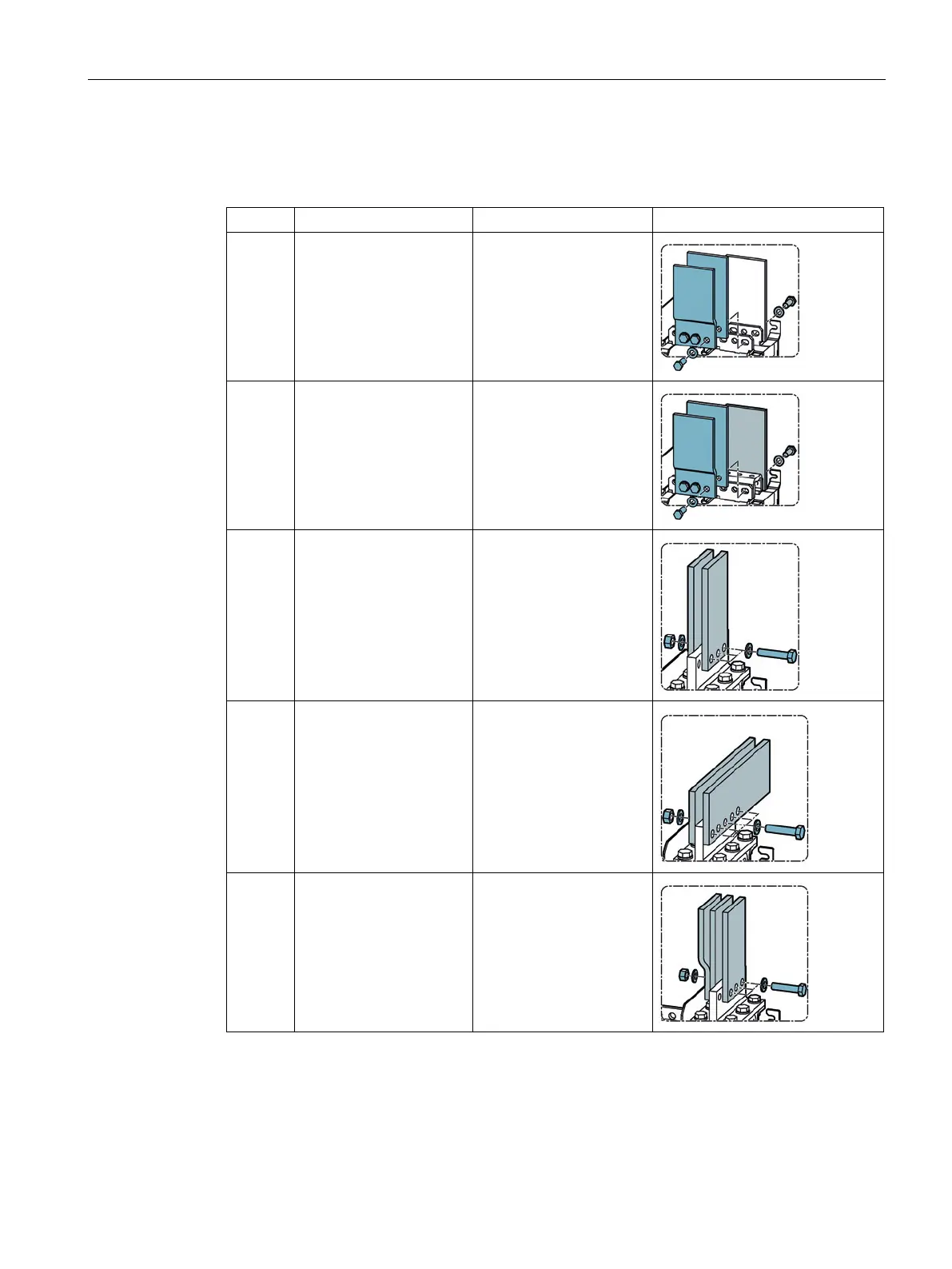

Fig.
1 Line side 2000 A … 2500 A
2 Line side 3200 A
3 Line side 2000 A … 2500 A
4 Line side 2000 A … 2500 A
5 Line side 3200 A (2900 A max.)
