Connection
6.2 Connecting the main circuit
56 Manual, 08/2017, L1V30368969104A-02
Mounting and connecting version 1 (2000 A to 2500 A)

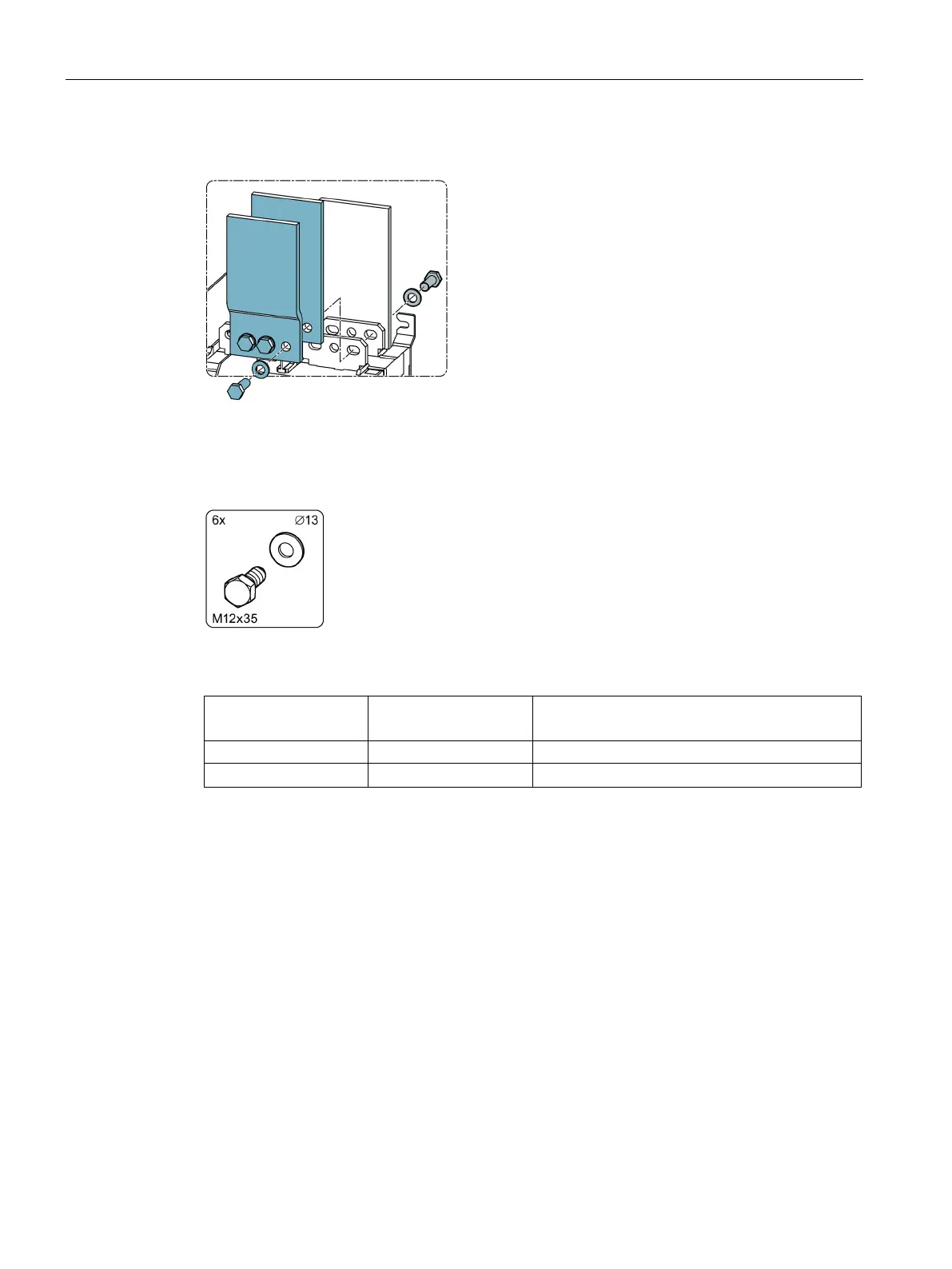

Figure 6-26 Connecting busbar, version 1
The following components of the copper bar connection kit are required in the following
quantities for these versions:
Figure 6-27 Bolt set, part B, 35 mm short length, 3KC9811-2
Bolt set, part B, 35 mm
(3KC9811-2)
1)
3-pole 2000 A … 2500 A 6 x
4-pole 2000 A … 2500 A 8 x
1)
Contains only the quantity for line-side connection
This variant is connected directly to the power supply systems via the busbars.
