Connection
6.3 Connecting the control circuit
74 Manual, 08/2017, L1V30368969104A-02
● Main circuit is disconnected

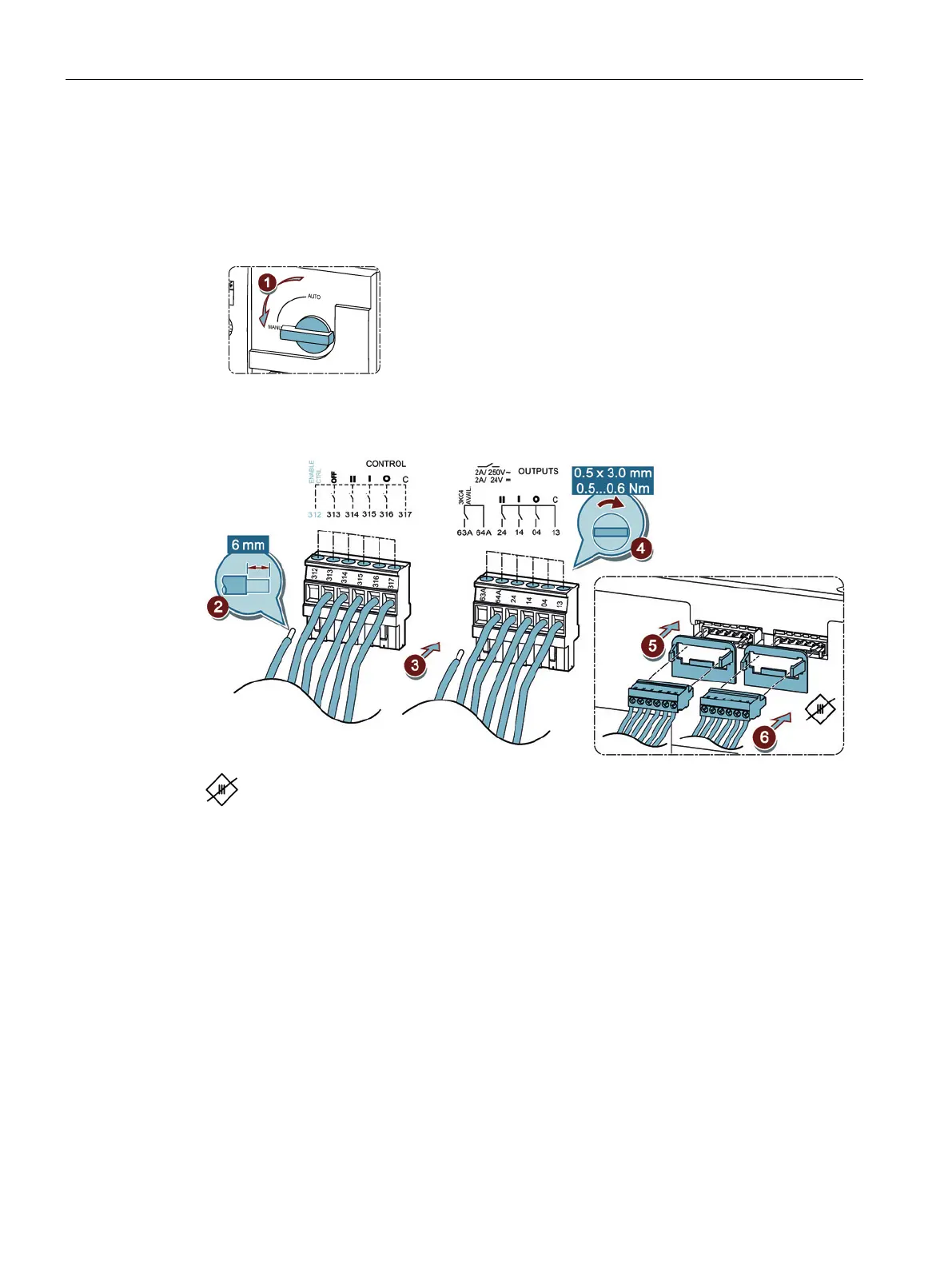

1. Check whether the switch on the transfer switching equipment is in the "Manual" position.
Figure 6-51 Set the switch to the "Manual" position
2. Connect the supply lines with the connector for the control inputs.
For 3KC8 only
Figure 6-52 Connecting supply cables
3. Connect the supply lines with the connector for the outputs of the motor operator. You
can see the designations of the inputs and outputs in the figure.
4. Tighten the contacts with a screwdriver.
5. Insert the connector in the terminal of the control inputs.
6. Insert the connector in the terminal of the outputs.
