Connection
6.3 Connecting the control circuit
90 Manual, 08/2017, L1V30368969104A-02
Installing accessories of sizes 250 A to 3200 A
1. Attach the power supply kit between the connecting terminals of source I and source II.
Connect the
black
cables with the terminals of
source I
and the
red
cables with the
terminals of
source II
.
2. Install the accessories between the connecting terminals in accordance with the figure.
From size 800 A, FASTON plug-in connectors are used.

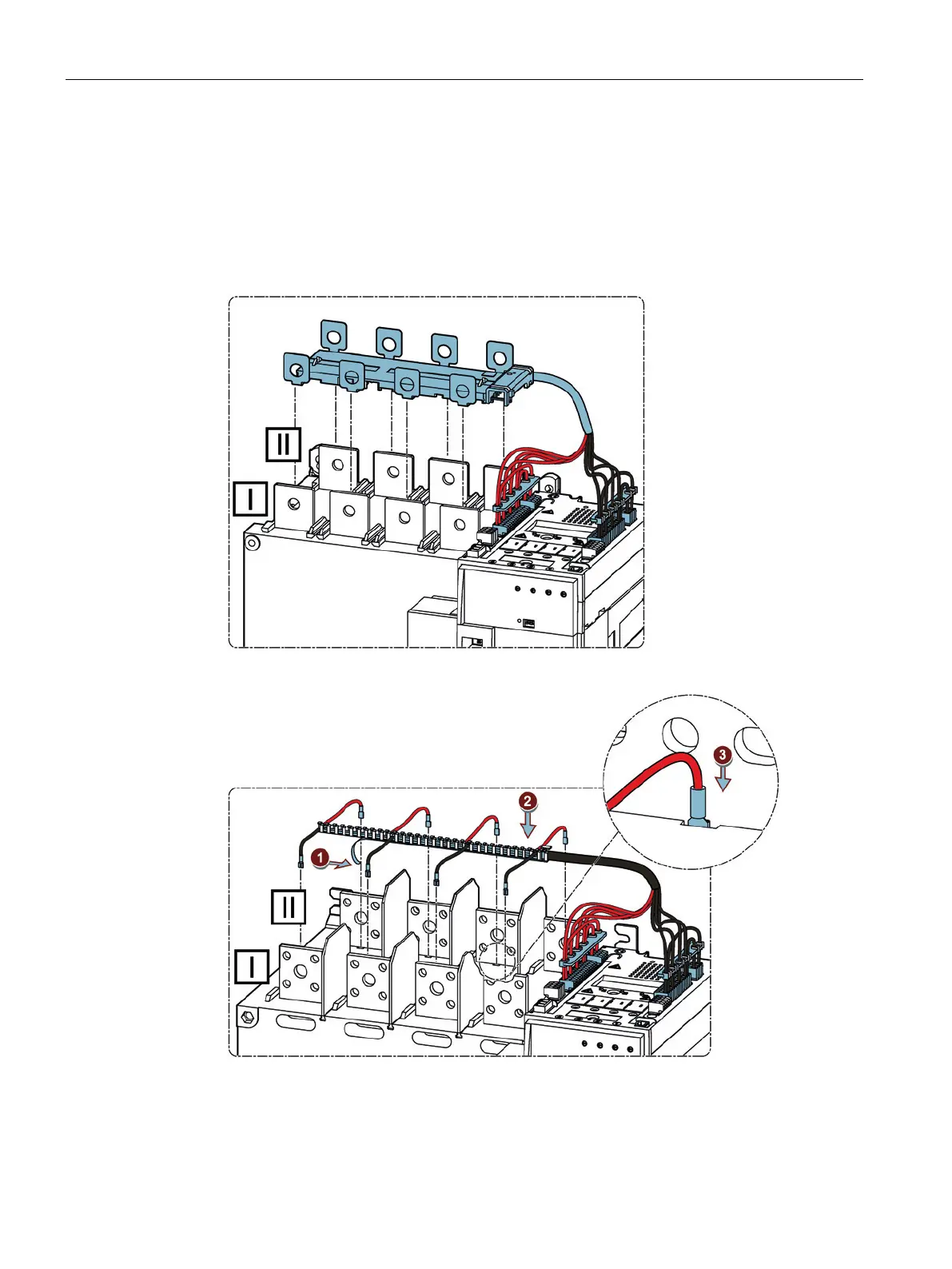

Figure 6-76 Installing size 250 A to 630 A (4-pole)
Figure 6-77 Installing size 800 A to 1600 A (4-pole)
